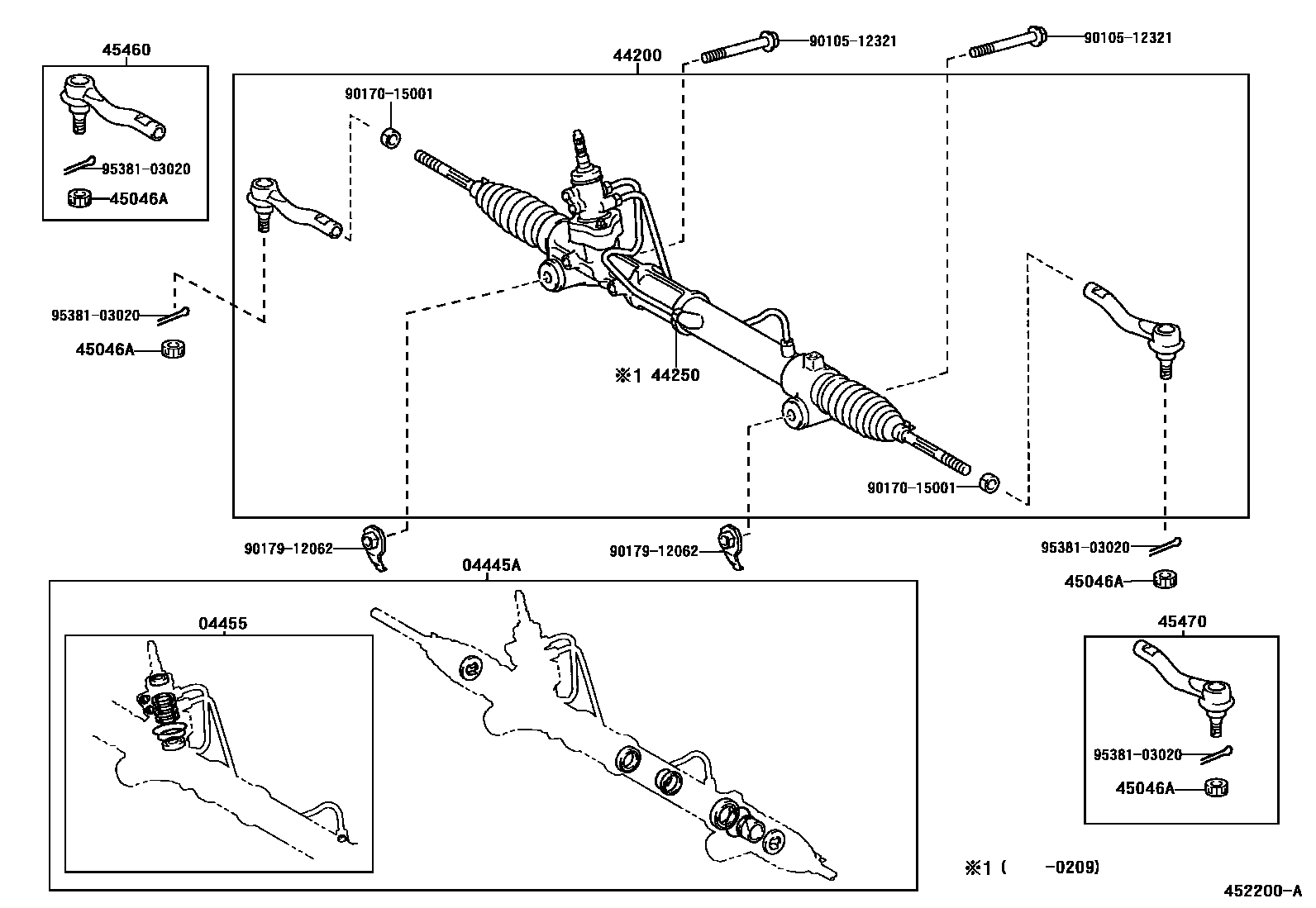

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28090iACR30,CLR30..LHD200002-200204

sub04445-28091

main04445-28091iACR30,CLR30..LHD200204-200304

main04445-28100iACR30,CLR30..RHD200002-200304

main04445-28120iACR30,CLR30..08S..MTM200304-200502

main04445-28130iACR30,CLR30200502

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28060iACR30,CLR30..LHD200002-200204

sub04455-28061

main04455-28061iACR30,CLR30..LHD200204-200404

main04455-28070iACR30,CLR30..RHD200002-200304

44200LINK ASSY, POWER STEERING

main44200-28410iACR30,CLR30..LHD..DX..(EUR,GCC)200002-200304

W(205/65R15 TIRE)

sub44200-28411

main44200-28420iACR30..GL..GCC;ACR30,CLR30..LHD..(EUR,GEN)200002-200304

W(215/60R16 TIRE)

sub44200-28421

main44200-28450iACR30,CLR30..RHD200002-200304

W(205/65R15 TIRE)

sub44200-28451

main44200-28460iACR30,CLR30..RHD200002-200304

W(215/60R16 TIRE)

sub44200-28461

main44200-28560iACR30,CLR30..RHD..08S..MTM200304-200501

sub44200-28561

main44200-28561iACR30,CLR30..RHD200502

sub44250-28561

sub45460-59115

sub45470-59135

sub90170-16016

main44200-28580iCLR30..LHD..08S200304-200501

sub44200-28581

main44200-28581iACR30,CLR30..LHD200502

sub44250-28581

sub45460-59115

sub45470-59135

sub90170-16016

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28410iACR30..LHD..(07S,08S)..DX200002-200209

W(205/65R15 TIRE)

sub44200-28410

main44250-28410iACR30..DX..GCC200105-200209

sub44200-28410

main44250-28420iACR30..GL..GEN;ACR30..LHD..EUR200002-200209

W(215/60R16 TIRE)

sub44200-28420

main44250-28420iACR30..GL..GCC200105-200209

sub44200-28420

main44250-28450iACR30,CLR30..RHD200002-200209

W(205/65R15 TIRE)

sub44200-28450

main44250-28460iACR30,CLR30..RHD200002-200209

W(215/60R16 TIRE)

sub44200-28460

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACR30,CLR30200002-200404

45460ROD ASSY, TIE, RH

main45460-29425iACR30,CLR30200002-200304

main45460-59055iACR30,CLR30..08S..MTM200304-200404

sub45460-59115

45470ROD ASSY, TIE, LH

main45470-29185iACR30,CLR30200002-200304

main45470-59055iACR30,CLR30..08S..MTM200304-200404

sub45470-59135

9010512321

main90105-12321

9017015001

main90170-15001

9017912062

main90179-12062

9538103020

main95381-03020

11 parts on this diagram · 7 diagrams in section
