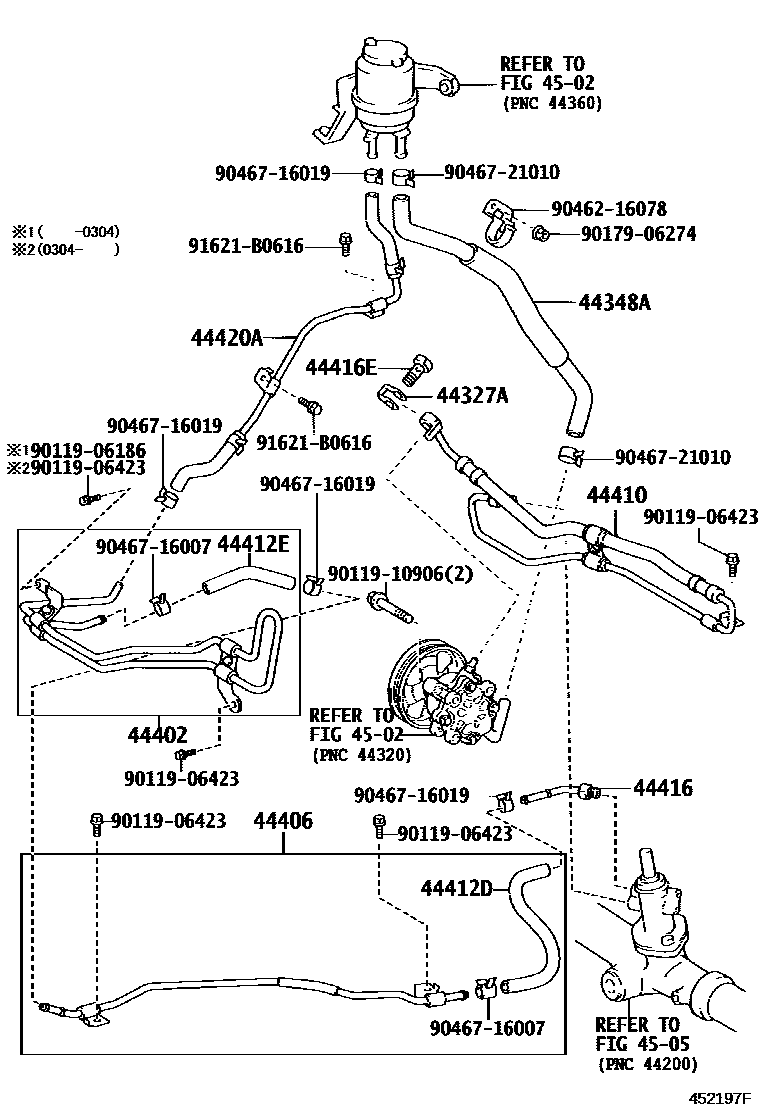

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iACR30,CLR30¥260200002-200112

main44327-30030iACR30,CLR30¥160200112-200404

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28240iACR30¥5,300200002-200404

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-28010iACR30,CLR30¥5,100200002-200304

sub44402-28011¥5,100

main44402-28030iACR30,CLR30..08S..MTM¥7,800200304-200411

sub44402-28031¥7,800

main44402-28031iACR30,CLR30¥7,800200412

44406TUBE SUB-ASSY, RETURN

main44406-28300iACR30,CLR30..RHD¥4,280200002-200411

sub44406-28301¥4,280

main44406-28301iCLR30..RHD¥4,280200412

main44406-28310iACR30..LHD¥7,000200002-200304

main44406-28330iCLR30..LHD¥4,280200102-200404

main44406-58010iACR30..RHD..07S;ACR30..RHD..08S..ATM¥4,270200304-200411

sub44406-58011¥4,270

main44406-58011iACR30..RHD¥4,270200412

44410TUBE ASSY, PRESSURE FEED

main44410-28460iACR30..RHD¥18,800200002-200304

sub44410-58021¥20,000

main44410-28470iCLR30..RHD..08S¥17,800200102-200404

main44410-28480iACR30..LHD¥11,500200002-200304

main44410-28490iCLR30..LHD..08S¥25,700200102-200404

main44410-58021iACR30..RHD..07S;ACR30..RHD..08S..ATM¥20,000200304-200404

44412HOSE, RETURN

main44412-28350iACR30..LHD¥870200002-200601

44412DHOSE, RETURN, NO.1

main44412-28340iACR30..LHD¥1,260200002-200601

main44412-28410iCLR30..LHD¥870200102-200601

main44412-58020iACR30,CLR30..RHD¥1,260200002-200601

44412EHOSE, RETURN, NO.2

main44412-28460iACR30..DX..GCC;CLR30..07S,08S;CLR30..LHD..06S;ACR30..LHD..(06S,07S);ACR30..RHD..(07S,08S)¥1,000200002-200601

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iACR30,CLR30..LHD¥880200002-200510

main44416-28370iACR30,CLR30..RHD¥870200002-200304

main44416-60370iACR30,CLR30..LHD¥540200511

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACR30,CLR30..08S..MTM¥310200002-200404

44420ATUBE ASSY, RETURN

main44420-28110iACR30¥4,280200002-200404

main44420-28120iCLR30¥3,420200102-200404

4502

4505

9011906186

main90119-06186¥140

9011906423

main90119-06423¥70

9011910906

main90119-10906¥270

9017906274

main90179-06274¥70

9046216078

main90462-16078¥450

9046716007

main90467-16007¥370

9046716019

main90467-16019¥300

9046721010

main90467-21010¥380

91621B0616

main91621-B0616¥100

22 parts on this diagram · 4 diagrams in section
