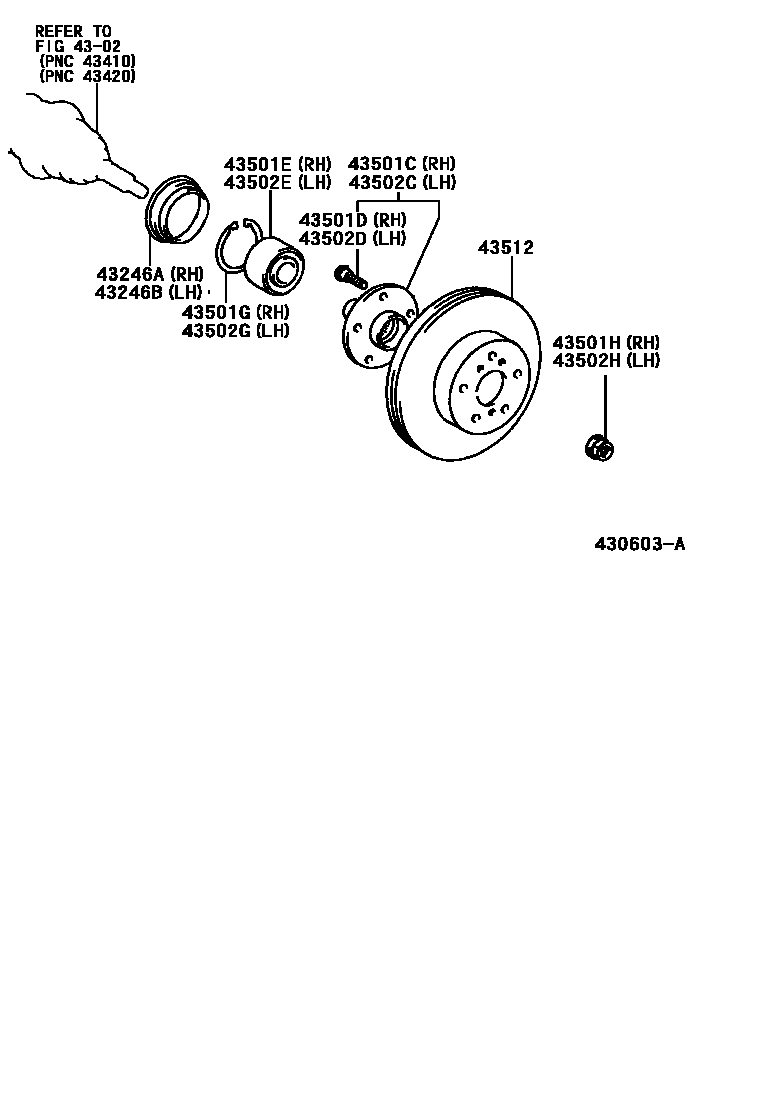

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020iACR30200002-200404

W(ABS)

main43246-28020iCLR30200102-200304

main43246-28030iACR30..GCC,GEN;ACR30..RHD..(07S,08S)..ATM200002-200304

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020iCLR30200102-200304

main43246-28020iACR30200002-200404

W(ABS)

main43246-28030iACR30..ARL,GCC200002-200304

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28090iACR30..ATM200002-200304

main43502-28100iACR30,CLR30..(06S,07S)..MTM200002-200404

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iACR30,CLR30200002-200304

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45003iACR30,CLR30200002-200404

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iACR30,CLR30200002-200404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACR30,CLR30..08S..MTM200002-200404

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28090iACR30..ATM200002-200304

main43502-28100iACR30,CLR30..MTM200002-200404

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iACR30,CLR30200002-200304

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45003iACR30,CLR30..08S..MTM200002-200404

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iACR30,CLR30200002-200404

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACR30,CLR30..08S..MTM200002-200404

43512DISC, FRONT

main43512-28180iACR30,CLR30..EUR,GEN200304-200409

TYPE B:REFER TO ILLUSTRATION, FIG.47-05

sub43512-28181

main43512-28181iACR30,CLR30..EUR,GEN200409-200601

TYPE B:REFER TO ILLUSTRATION, FIG.47-05

main43512-33041iACR30,CLR30200002-200304

sub43512-33043

main43512-58010iACR30..GCC,GEN;ACR30..RHD..ATM200304-200409

TYPE A:REFER TO ILLUSTRATION, FIG.47-05

sub43512-58011

main43512-58011iACR30..GCC,GEN;ACR30..RHD..ATM200409-200601

TYPE A:REFER TO ILLUSTRATION, FIG.47-05

14 parts on this diagram · 1 diagram in section
