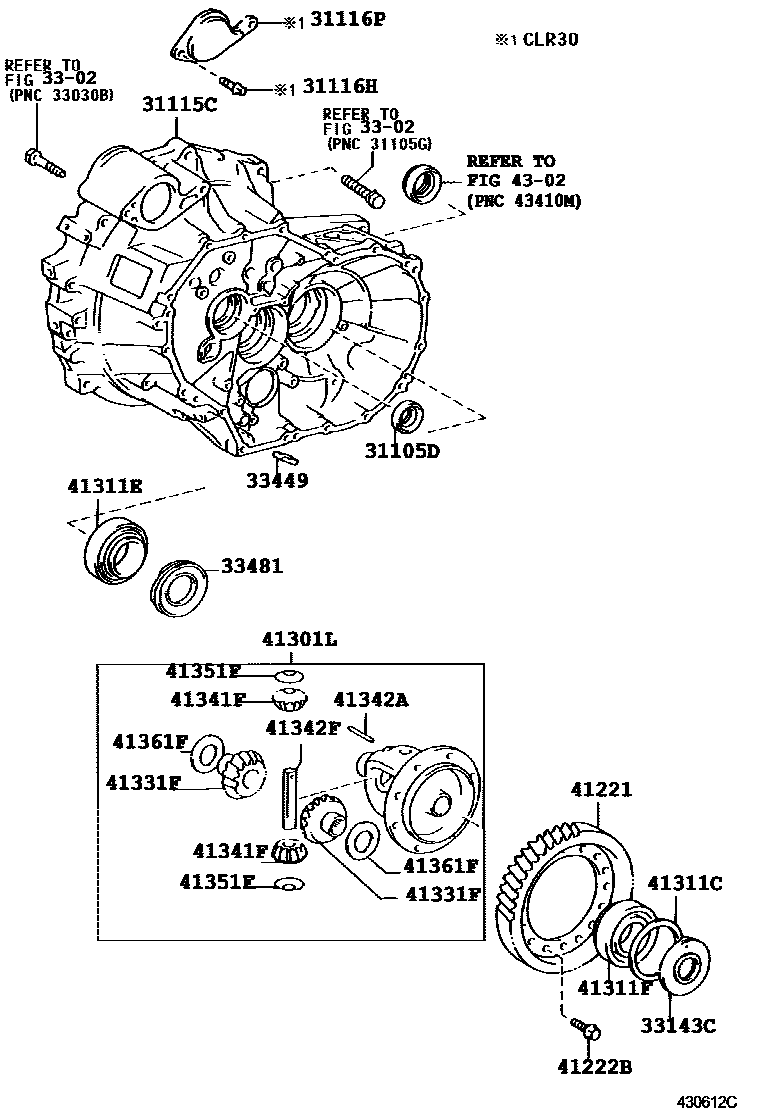

FRONT AXLE HOUSING & DIFFERENTIAL
31116PCOVER, TRANSAXLE CASE
3302
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33449MAGNET, TRANSMISSION
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=32
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=1.90,MARK 0
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK A
T=2.45,MARK B
T=2.50,MARK C
T=2.55,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
T=2.80,MARK J
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
AISIN
TOYOTA
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
4302
22 parts on this diagram · 2 diagrams in section
