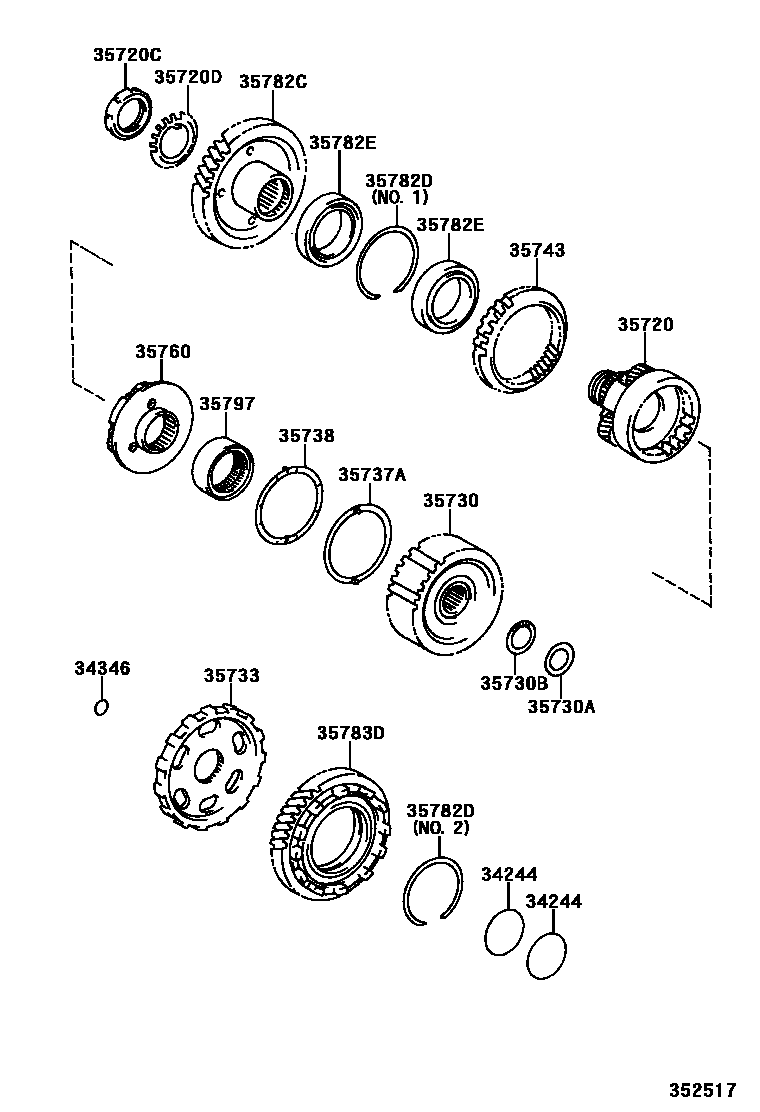

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
35720CNUT (FOR FRONT PLANETARY GEAR)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
NO.1
NO.2,TMC:REFER 35-01
35782EBEARING(FOR COUNTER DRIVE GEAR)
35797RACE, 1 WAY CLUTCH INNER
18 parts on this diagram · 1 diagram in section
