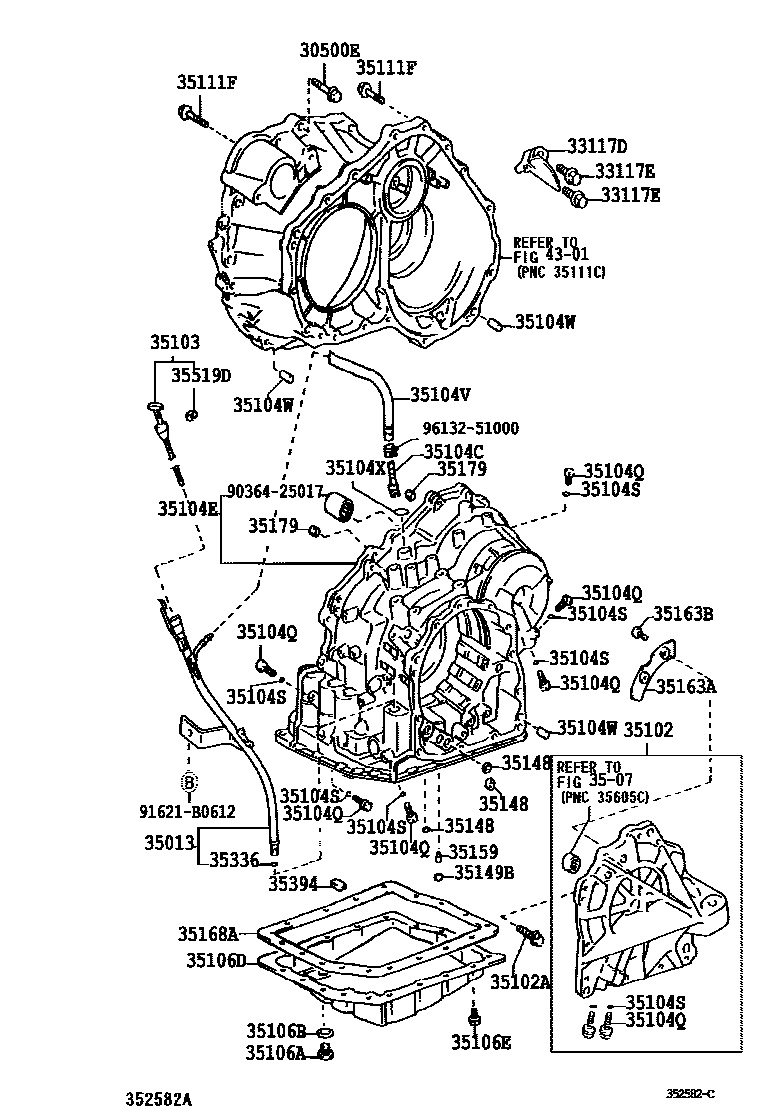

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U241E 0002 1U241E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-12168iACR30..ATM200002-200304

*12-1.25PX55-30

main91512-61050iACR30..ATM200002-200304

*10-1.25PX50-30

main91512-61065iACR30..ATM200002-200304

*10-1.25PX65-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-28020iACR30..ATM200002-200304

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iACR30..ATM200002-200304

sub91641-H0820

main91641-H0820iACR30..ATM200304

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28150iACR30..ATM200002-200304

3507

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-28020iACR30..ATM200002-200304

main35102-33020iACR30..ATM200304

sub35102-28020

sub35102-42H00

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071iACR30..ATM200002-200601

*8-1.25PX30-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-28170iACR30..ATM200002-200304

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iACR30..ATM200002-200304

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-28090iACR30..ATM200002-200108

main35104-28091iACR30..ATM200108-200304

sub35104-28150

sub90301-06008

sub90301-10189

main35104-33070iACR30..ATM200402-200601

sub35104-33090

main35104-44010iACR30..ATM200304-200402

sub35104-33070

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iACR30..ATM200002-200601

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iACR30..ATM200002-200601

35104VHOSE (FOR BREATHER PLUG)

main35121-28010iACR30..ATM200002-200304

main35121-33010iACR30..ATM200304-200601

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iACR30..ATM200002-200304

main90250-10036iACR30..ATM200304-200601

sub90250-10232

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iACR30..ATM200002-200601

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iACR30..ATM200002-200601

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iACR30..ATM200002-200601

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-28090iACR30..ATM200002-200304

main35106-33030iACR30..ATM200304-200601

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iACR30..ATM200002-200601

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08066iACR30..ATM200108-200304

*8-1.25PX72-30

main90105-08233iACR30..ATM200002-200601

*8-1.25PX42-30

main90105-08353iACR30..ATM200002-200601

*8-1.25PX50-30

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iACR30..ATM200002-200601

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iACR30..ATM200002-200601

35159GASKET, BRAKE DRUM

main35159-21010iACR30..ATM200002-200601

35163APLATE, TRANSAXLE REAR COVER

main35163-28010iACR30..ATM200002-200304

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055iACR30..ATM200002-200304

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iACR30..ATM200002-200304

sub35168-21011

main35168-21011iACR30..ATM200304-200401

main35168-21020iACR30..ATM200401-200601

35179GASKET, OVERDRIVE BRAKE

main35179-32010iACR30..ATM200002-200601

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACR30..ATM200002-200304

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iACR30..ATM200002-200601

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iACR30..ATM200002-200304

4301

9036425017

main90364-25017

91621B0612

main91621-B0612

9613251000

main96132-51000

34 parts on this diagram · 2 diagrams in section
