TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

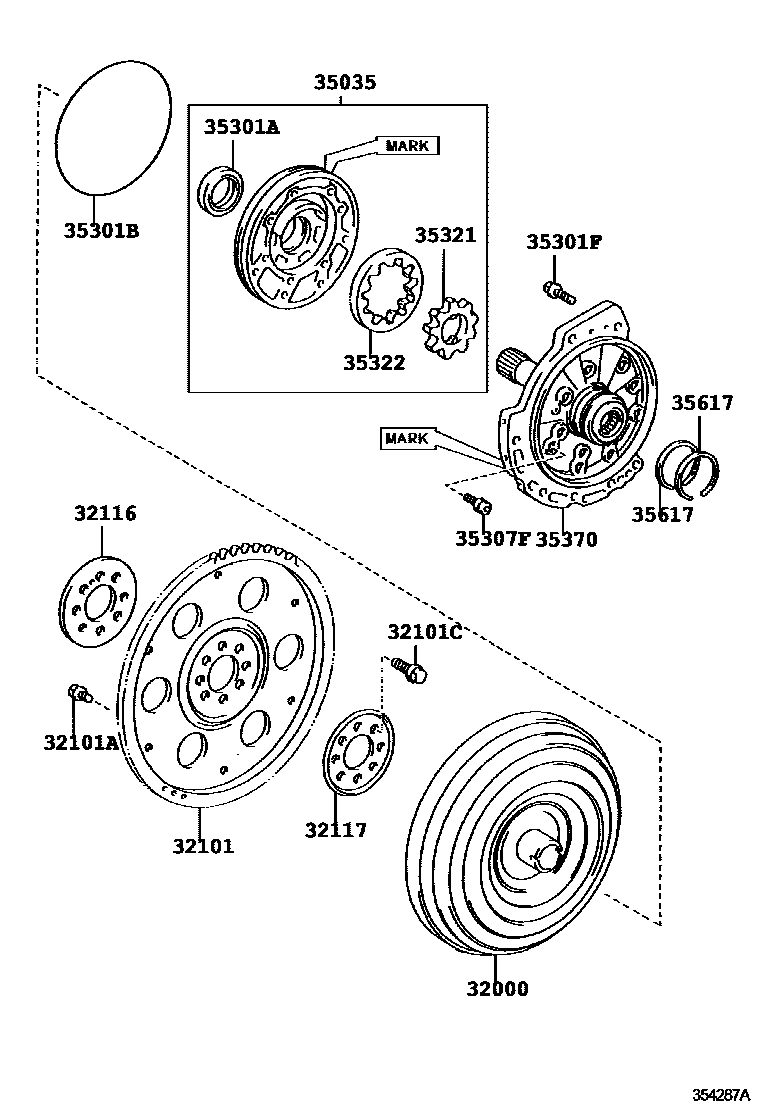

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-28160i200002-200304
main32000-44030i200304-200307
sub32000-44060
main32000-44060i200307-200601
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-28040i200002-200304
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200002-200304
*9-1.25PX12.4-7.3,GREEN
main90119-09025i200002-200304
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12184i200002-200304
*12-1.25PX22-16
sub90105-12384
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200002-200304
32117SPACER, DRIVE PLATE, REAR
main32117-20060i200002-200304
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-21020i200304
NO MARK
sub35035-28010
main35035-28010i200002-200304
sub35035-12070
main35035-28010i200304
MARK AT
sub35035-12070
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38064i200002-200111
main90311-38083i200111-200601
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i200002-200601
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i200002-200601
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90148-60027i200002-200304
35321GEAR, FRONT OIL PUMP DRIVE
main35321-21060i200304
T=10.690-10.699
sub35321-28060
main35321-21070i200304
T=10.700-10.709
sub35321-28070
main35321-21080i200304
T=10.710-10.720
sub35321-28080
main35321-21090i200304
T=10.721-10.730
sub35321-28090
main35321-21100i200304
T=10.731-10.740
sub35321-28100
main35321-28060i200002-200304
T=10.715,MARK 1
main35321-28070i200002-200304
T=10.715,MARK 2
main35321-28080i200002-200304
T=10.715,MARK 3
main35321-28090i200002-200304
T=10.715,MARK 4
main35321-28100i200002-200304
T=10.715,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21060i200304
T=10.690-10.699
sub35322-28060
main35322-21070i200304
T=10.700-10.709
sub35322-28070
main35322-21080i200304
T=10.710-10.720
sub35322-28080
main35322-21090i200304
T=10.721-10.730
sub35322-28090
main35322-21100i200304
T=10.731-10.740
sub35322-28100
main35322-28060i200002-200304
T=10.715,MARK 1
main35322-28070i200002-200304
T=10.715,MARK 2
main35322-28080i200002-200304
T=10.715,MARK 3
main35322-28090i200002-200304
T=10.715,MARK 4
main35322-28100i200002-200304
T=10.715,MARK 5
35370SHAFT ASSY, STATOR
main35370-21020i200304
NO MARK
sub35370-28010
main35370-28010i200304
MARK M
sub35370-12110
main35370-28010i200002-200304
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200002-200304
