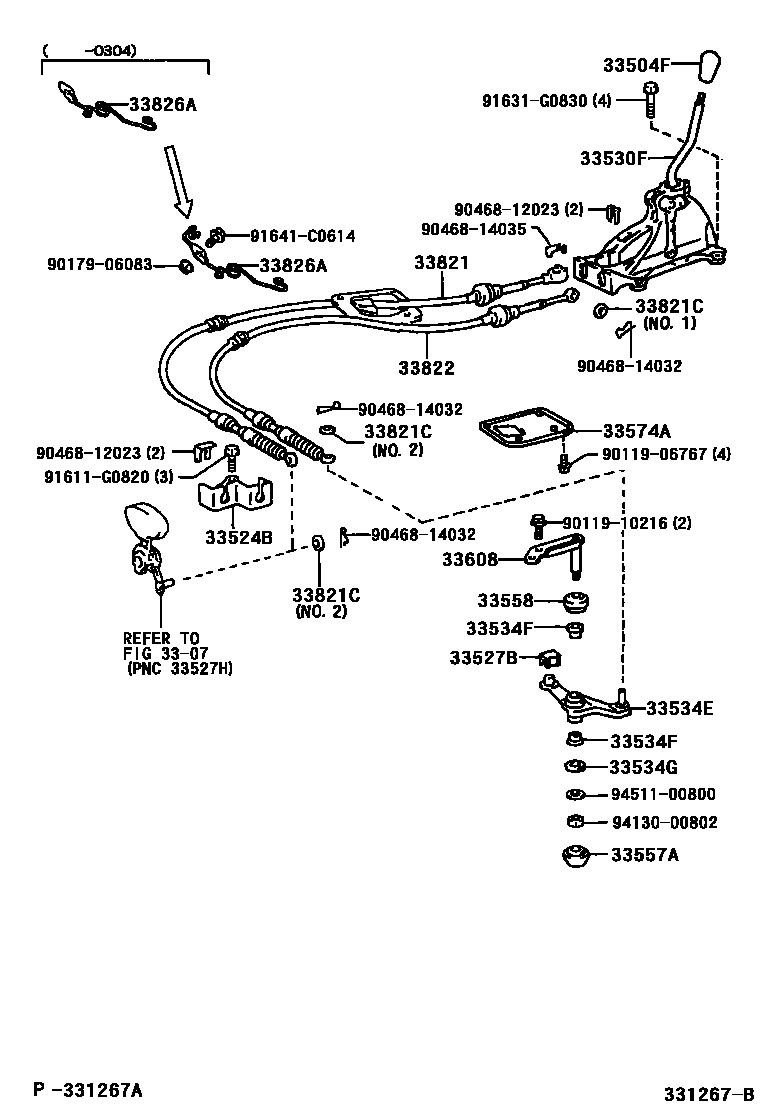

SHIFT LEVER & RETAINER
3307
33504FKNOB SUB-ASSY, SHIFT LEVER
33524BBRACKET, CONTROL CABLE
33527BBUSH (FOR CONTROL SHIFT LEVER)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
NO.2
NO.3
NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574ARETAINER, SHIFT CABLE GROMMET, NO.1
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=30,NO.2
NO.1
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
9011906767
main90119-06767
9011910216
main90119-10216
9017906083
main90179-06083
9046812023
main90468-12023
9046814032
main90468-14032
9046814035
main90468-14035
91611G0820
main91611-G0820
91631G0830
main91631-G0830
91641C0614
main91641-C0614
9413000802
main94130-00802
9451100800
main94511-00800
27 parts on this diagram · 2 diagrams in section
