CONTROL SHAFT & CROSSSHAFT

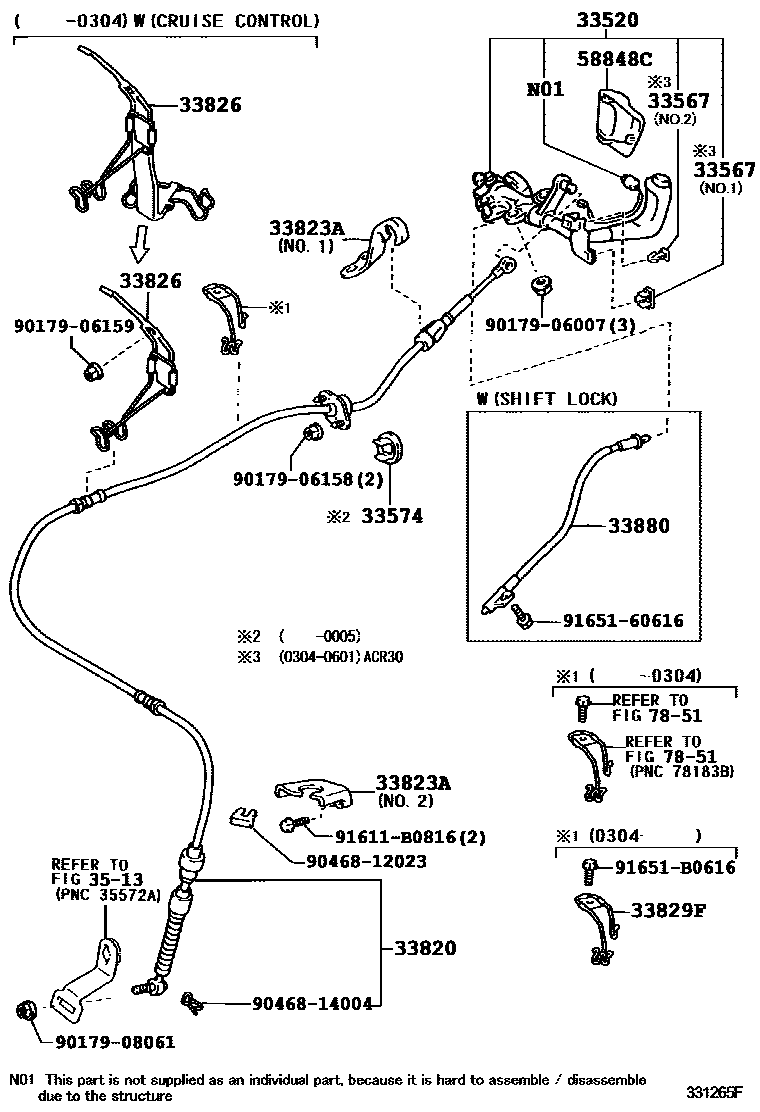

Parts diagram
33520SHAFT ASSY, CONTROL
main33520-28180-B0i200002-200304
BLUISH GRAY,TRIM11
main33520-28180-B1i200002-200304
DK.CHARCOAL,TRIM12
main33520-28181-B2i200304-200310
DK.GRAY,TRIM1#
sub33520-28182
main33520-28182-B2i200310-200601
DK.GRAY,TRIM1#
main33520-28190-B0i200002-200304
BLUISH GRAY,TRIM11
main33520-28190-B1i200002-200304
DK.CHARCOAL,TRIM12
main33520-28191-B2i200304-200310
DK.GRAY,TRIM1#
sub33520-28192
main33520-28192-B2i200310-200601
DK.GRAY,TRIM1#
main33520-28200-B0i200105-200304
BLUISH GRAY,TRIM11
main33520-28200-B1i200105-200304
DK.CHARCOAL,TRIM12
main33520-28201-B2i200304-200310
DK.GRAY,TRIM1#
sub33520-28202
main33520-28202-B2i200310-200601
DK.GRAY,TRIM1#
main33520-28260-B0i200304-200310
LEATHER,DK.GRAY,TRIM1#
sub33520-28261
main33520-28261-B0i200310-200601
LEATHER,DK.GRAY,TRIM1#
main33520-28280-B0i200304-200310
LEATHER,DK.GRAY,TRIM1#
sub33520-28281
main33520-28281-B0i200310-200601
LEATHER,DK.GRAY,TRIM1#
33567CLAMP, CONTROL SHAFT TUBE
main33567-28010i200304-200601
NO.1
main33567-44010i200304-200601
NO.2
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
main33574-28040i200002-200005
33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
main33820-28360i200002-200304
sub33820-28361
main33820-28361i200304-200308
sub33820-28362
main33820-28362i200308
main33820-28370i200002-200304
sub33820-28371
main33820-28371i200304
33823ABRACKET, TRANSMISSION CONTROL CABLE
main33823-28220i200002-200304
NO.1
main33823-28230i200002-200304
NO.1
main33823-28240i200002-200304
NO.2
33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2
main33826-28070i200002-200304
main78183-28340i200002-200304
W(CRUISE CONTROL)
33829FCLAMP, TRANSMISSION CONTROL CABLE, NO.2
main78183-28300i200304
33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
main33880-28050i200002-200101
sub33880-28051
main33880-28051i200101-200304
main33880-28060i200110-200304
TAIWAN SPEC
main33880-28060i200105-200304
3513
58848CCOVER, SHIFT LEVER HOLE
main58848-28050-B0i200002-200304
LT. BLUISH GRAY,TRIM11
sub58848-28050
main58848-28050-B1i200002-200304
MD.CHARCOAL,TRIM12
sub58848-28050
main58848-28050-B2i200304-200601
MD.GRAY,TRIM1#
sub58848-28050
main58848-28060-B0i200002-200304
LT. BLUISH GRAY,TRIM11
sub58848-28060
main58848-28060-B1i200002-200304
MD.CHARCOAL,TRIM12
sub58848-28060
main58848-28060-B2i200304-200601
MD.GRAY,TRIM1#
sub58848-28060
7851
9017906007
main90179-06007
9017906158
main90179-06158
9017906159
main90179-06159
9017908061
main90179-08061
9046812023
main90468-12023
9046814004
main90468-14004
91611B0816
main91611-B0816
9165160616
main91651-60616
91651B0616
main91651-B0616

20 parts on this diagram · 2 diagrams in section
