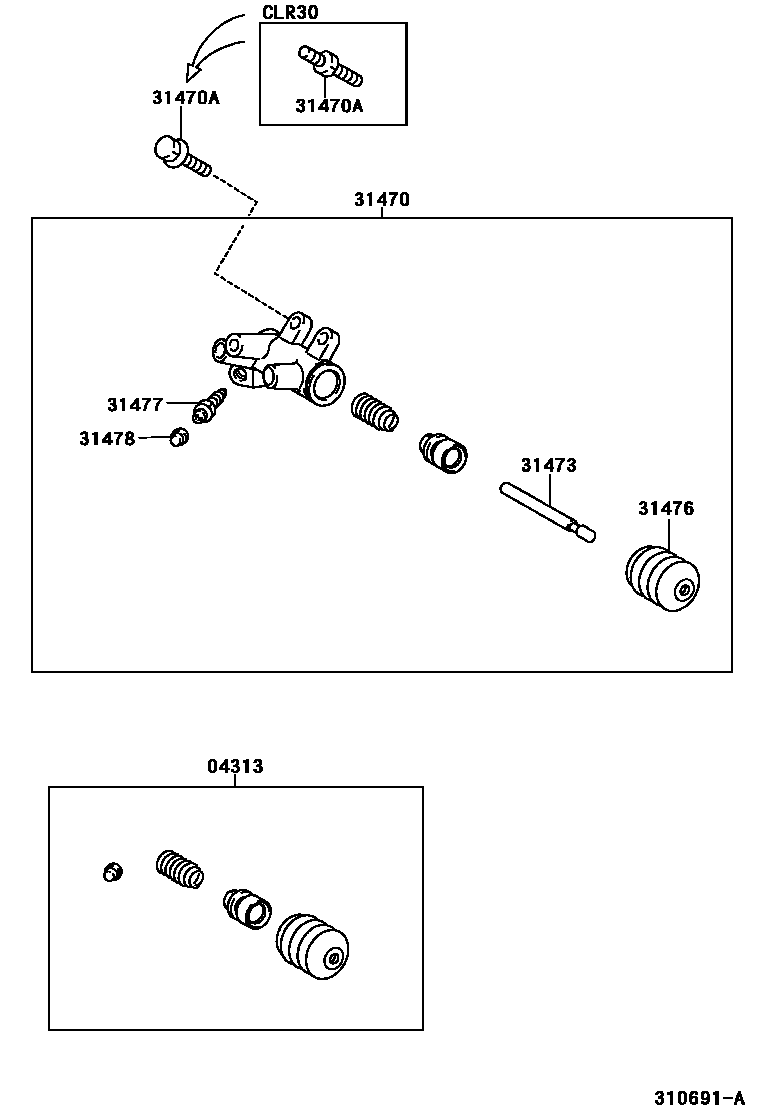

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iACR30,CLR30..MTM200002-200404

main04313-52020iACR30,CLR30..(06S,07S)..MTM200401-200601

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28080iACR30..MTM200002-200408

sub31470-28081

main31470-28081iACR30..MTM200408

main31470-32022iCLR30200102-200404

sub31470-32023

main31470-32023iCLR30200404

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCLR30..06S,07S200102-200404

*8-1.25PX25-20.1

main91611-60822iACR30..(06S,07S)..MTM200002-200404

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCLR30200102-200404

main31473-22030iACR30..MTM200408

main31473-32010iACR30..MTM200002-200408

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACR30..MTM;CLR30..08S200002-200404

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACR30,CLR30..MTM200002-200404

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACR30,CLR30..MTM200002-200404

7 parts on this diagram · 1 diagram in section
