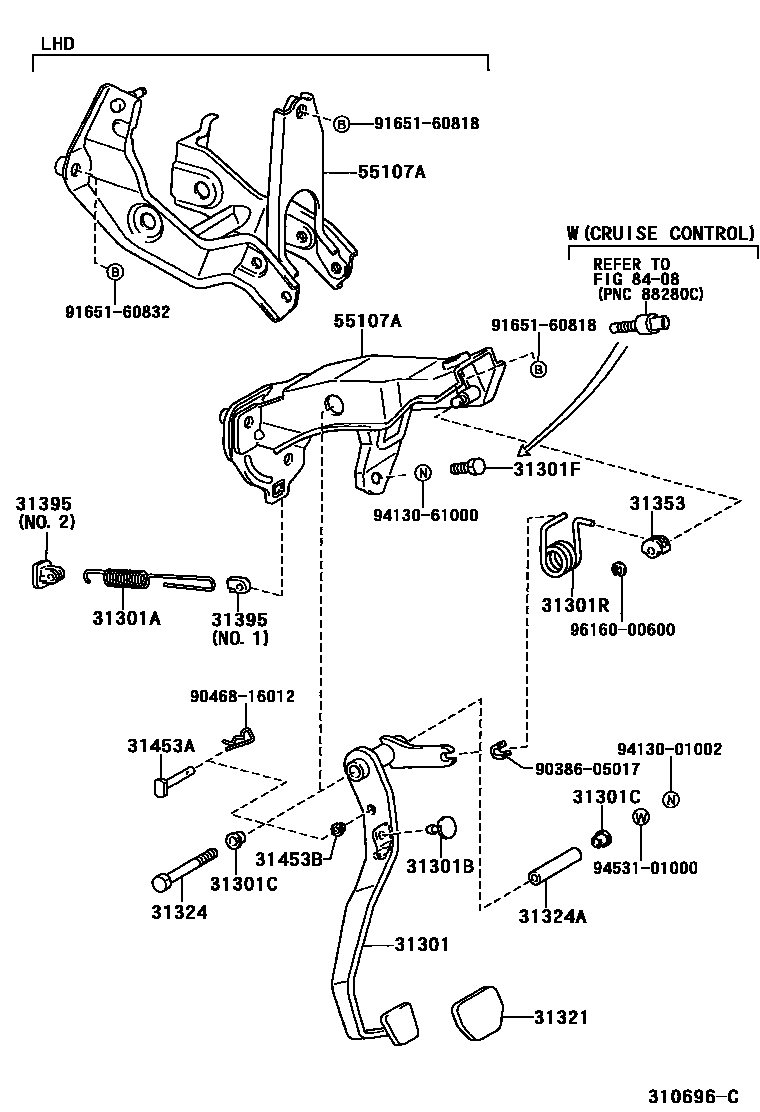

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28140iACR30,CLR30..RHD..MTM200002-200304

main31301-28150iACR30,CLR30..LHD..MTM200002-200304

31301ASPRING(FOR CLUTCH PEDAL)

main90905-07033iACR30,CLR30..MTM200002-200304

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iACR30,CLR30..MTM200002-200304

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iACR30,CLR30..MTM200002-200304

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iACR30..(07S,08S)..MTM200002-200304

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90959-03267iACR30,CLR30..RHD..MTM200002-200304

main90959-03268iACR30,CLR30..LHD..MTM200002-200304

31321PAD, CLUTCH PEDAL

main31321-52010iACR30,CLR30..MTM200002-200304

31324SHAFT, CLUTCH PEDAL

main90101-10081iACR30,CLR30..MTM200002-200304

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10105iACR30,CLR30..MTM200002-200304

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iACR30,CLR30..MTM200002-200304

31395HOOK, PEDAL SPRING

main31395-33010iACR30,CLR30..MTM200002-200304

NO.1

main31395-33020iACR30,CLR30..MTM200002-200304

NO.2

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-35030iACR30,CLR30..MTM200002-200304

L=28.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iACR30,CLR30..MTM200002-200304

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-28060iACR30,CLR30..RHD..MTM200002-200601

main55107-28070iACR30,CLR30..LHD..MTM200002-200601

8408

9038605017

main90386-05017

9046816012

main90468-16012

9165160818

main91651-60818

9165160832

main91651-60832

9413001002

main94130-01002

9413061000

main94130-61000

9453101000

main94531-01000

9616000600

main96160-00600

23 parts on this diagram · 5 diagrams in section
