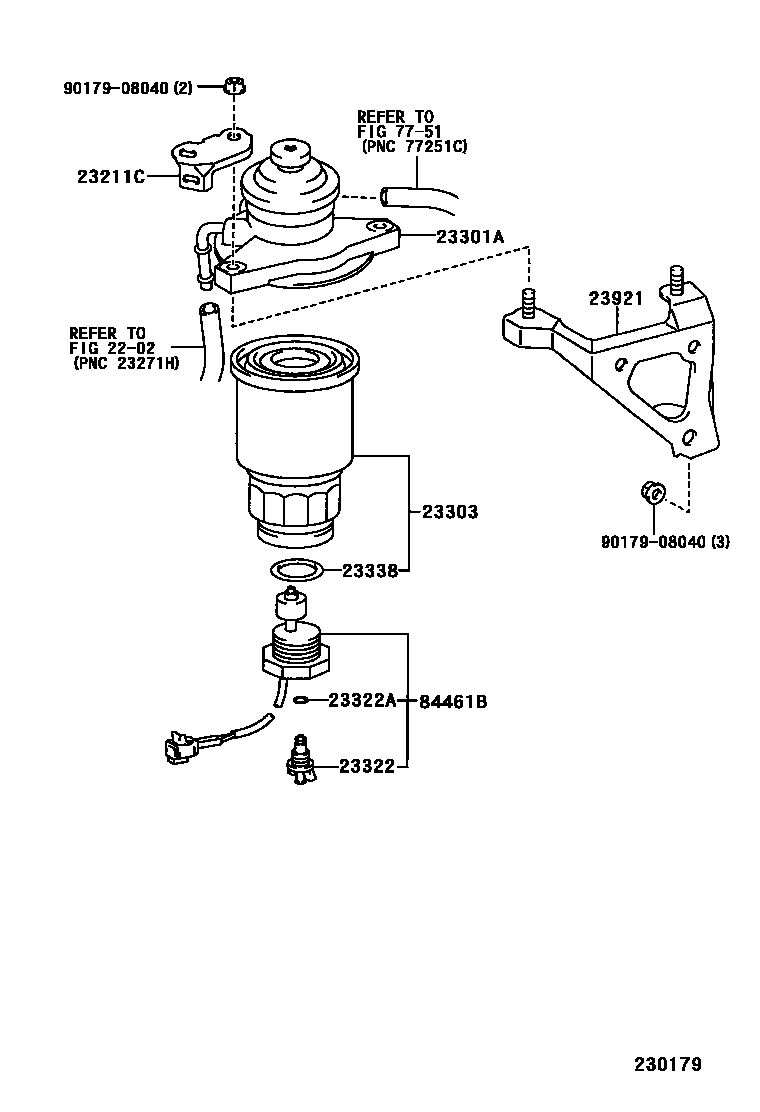

FUEL FILTER

0001 1 0002 1W(FUEL HEATER)

2202

23211CBRACKET(FOR FUEL FILTER SUPPORT)

main23211-27010i1CDFTV..CLR30200102-200404

23301ACAP ASSY, FUEL FILTER

main23380-27050i1CDFTV..CLR30200102-200208

sub23380-27051

main23380-27070i1CDFTV..CLR30200102-200404

W(FUEL HEATER)

sub23380-27071

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i1CDFTV..CLR30200102-200404

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1CDFTV..CLR30200102-200601

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1CDFTV..CLR30200102-200601

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1CDFTV..CLR30200102-200404

23921SUPPORT, FUEL FILTER

main23921-27040i1CDFTV..CLR30200102-200404

7751

84461BSWITCH, LEVEL WARNING

main84461-28040iCLR30200102-200601

sub84461-28041

9017908040

main90179-08040

11 parts on this diagram · 2 diagrams in section
