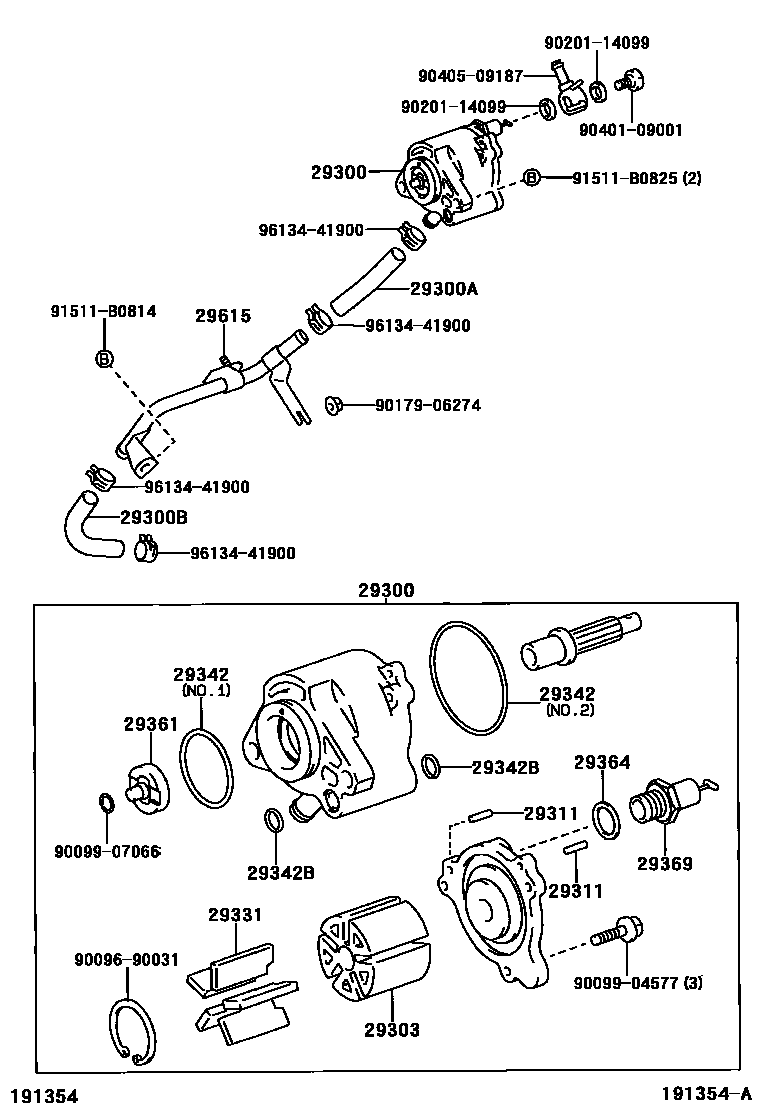

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-27020i1CDFTV..CLR30200304

29300AHOSE, VACUUM PUMP OIL INLET

main29611-27020i1CDFTV..CLR30200102-200304

29300BHOSE, VACUUM PUMP OIL OUTLET

main29613-27020i1CDFTV..CLR30200102-200304

29303ROTOR SUB-ASSY, VACUUM PUMP

main29337-27010i1CDFTV..CLR30200304

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i1CDFTV..CLR30200102-200304

29331BLADE, VACUUM PUMP, A

main29331-27010×5i1CDFTV..CLR30200102-200304

29342PACKING, VACUUM PUMP

main29342-27010i1CDFTV..CLR30200102-200304

NO.1

main29342-48010i1CDFTV..CLR30200102-200304

NO.2

29342BRING, O

main29342-48020×2i1CDFTV..CLR30200102-200304

29361COUPLING, VACUUM PUMP

main29361-27010i1CDFTV..CLR30200102-200304

29364WASHER, VACUUM PUMP

main29364-66010i1CDFTV..CLR30200102-200304

29369VALVE SUB-ASSY, CHECK

main29369-64030i1CDFTV..CLR30200102-200304

29615PIPE, VACUUM PUMP OIL

main29615-27020i1CDFTV..CLR30200102-200304

9009690031

main90096-90031

9009904577

main90099-04577

9009907066

main90099-07066

9017906274

main90179-06274

9020114099

main90201-14099

9040109001

main90401-09001

9040509187

main90405-09187

91511B0814

main91511-B0814

91511B0825

main91511-B0825

9613441900

main96134-41900

22 parts on this diagram · 1 diagram in section
