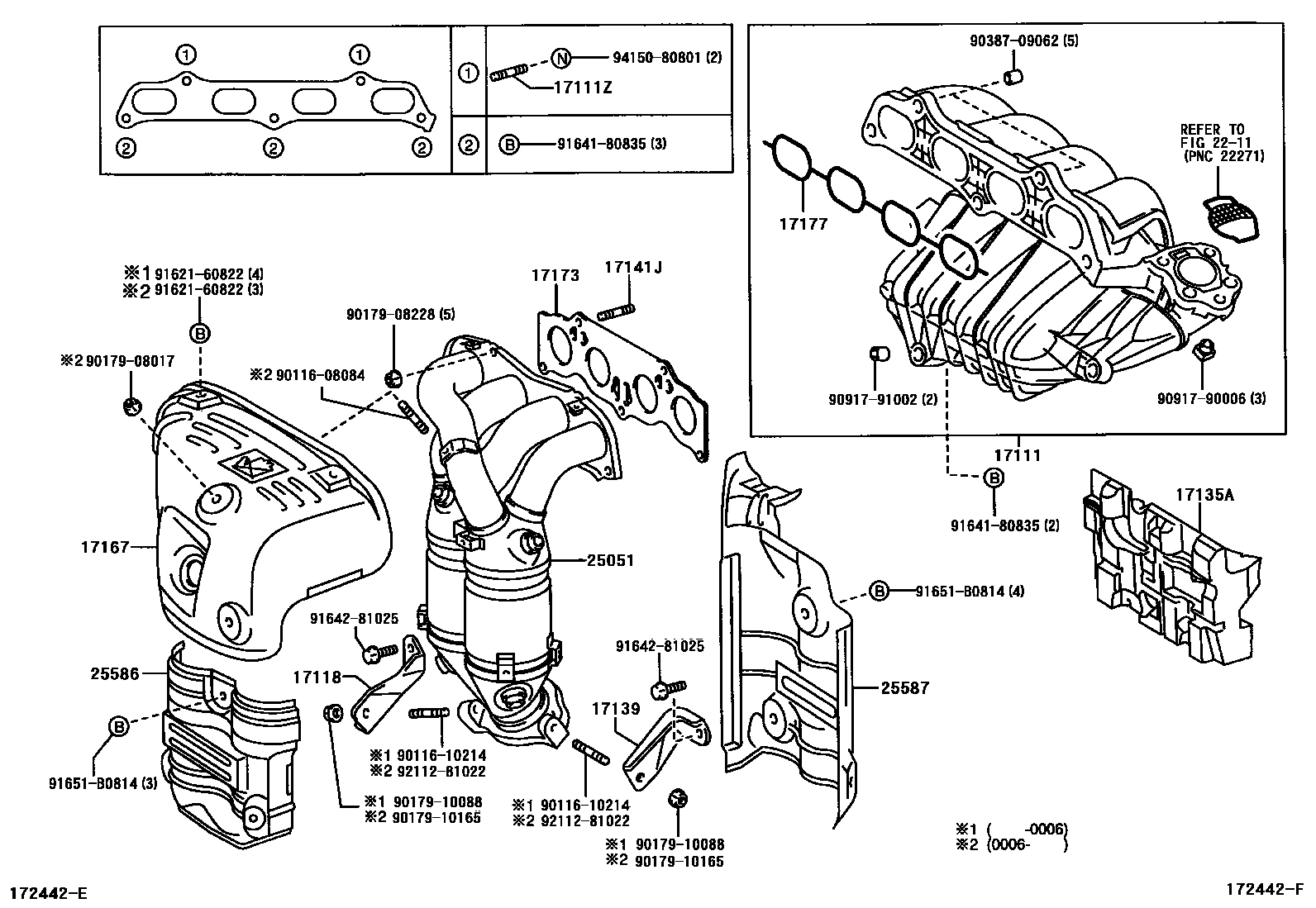

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17111-27011i1CDFTV..CLR30200102-200204

sub17111-27012

sub22815-27011

main17111-27012i1CDFTV..CLR30..08S200204-200404

main17120-28010i2AZFE..ACR30200002-200304

sub17120-28050

main17120-28090i2AZFE..ACR30..08S..MTM200304-200404

sub17120-28100

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i2AZFE..ACR30200002-200601

17118STAY, MANIFOLD

main17118-27030i1CDFTV..CLR30200102-200404

main17118-28020i2AZFE..ACR30200002-200601

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28010i2AZFE..ACR30..08S..MTM200002-200506

sub17135-28011

main17135-28011i2AZFE..ACR30200506

17139STAY, MANIFOLD, NO.2

main17139-27010i1CDFTV..CLR30200102-200404

main17139-28010i2AZFE..ACR30200002-200601

17141MANIFOLD, EXHAUST

main17141-27030i1CDFTV..CLR30200102-200404

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i2AZFE..ACR30200002-200601

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-28010i2AZFE..ACR30200002-200304

main17167-28030i2AZFE..ACR30200304-200307

sub17167-28031

main17167-28031i2AZFE..ACR30200307-200601

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-27010i1CDFTV..CLR30..06S,07S200102-200404

main17173-28010i2AZFE..ACR30200002-200601

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-27010i1CDFTV..CLR30200102-200404

main17177-28010i2AZFE..ACR30200002-200404

sub17177-28031

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-28010i2AZFE..ACR30..EUR,GEN200002-200304

*115=TOYOTA/00-03/Y

sub25051-28011

main25051-28020i2AZFE..ACR30..ARL,GCC200002-200208

sub25051-28021

main25051-28021i2AZFE..ACR30..ARL,GCC200208-200304

main25051-28210i2AZFE..ACR30200304-200601

*114=TOYOTA/28210/Y

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28010i2AZFE..ACR30200002-200304

main25586-28031i2AZFE..ACR30200304-200601

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-28010i2AZFE..ACR30200002-200304

main25587-28041i2AZFE..ACR30200304-200601

9011608084

main90116-08084

9011610214

main90116-10214

9017908017

main90179-08017

9017908228

main90179-08228

9017910088

main90179-10088

9017910165

main90179-10165

9038709062

main90387-09062

9091790006

main90917-90006

9091791002

main90917-91002

9162160822

main91621-60822

9164180835

main91641-80835

9164281025

main91642-81025

91651B0814

main91651-B0814

9211281022

main92112-81022

9415080801

main94150-80801

29 parts on this diagram · 3 diagrams in section
