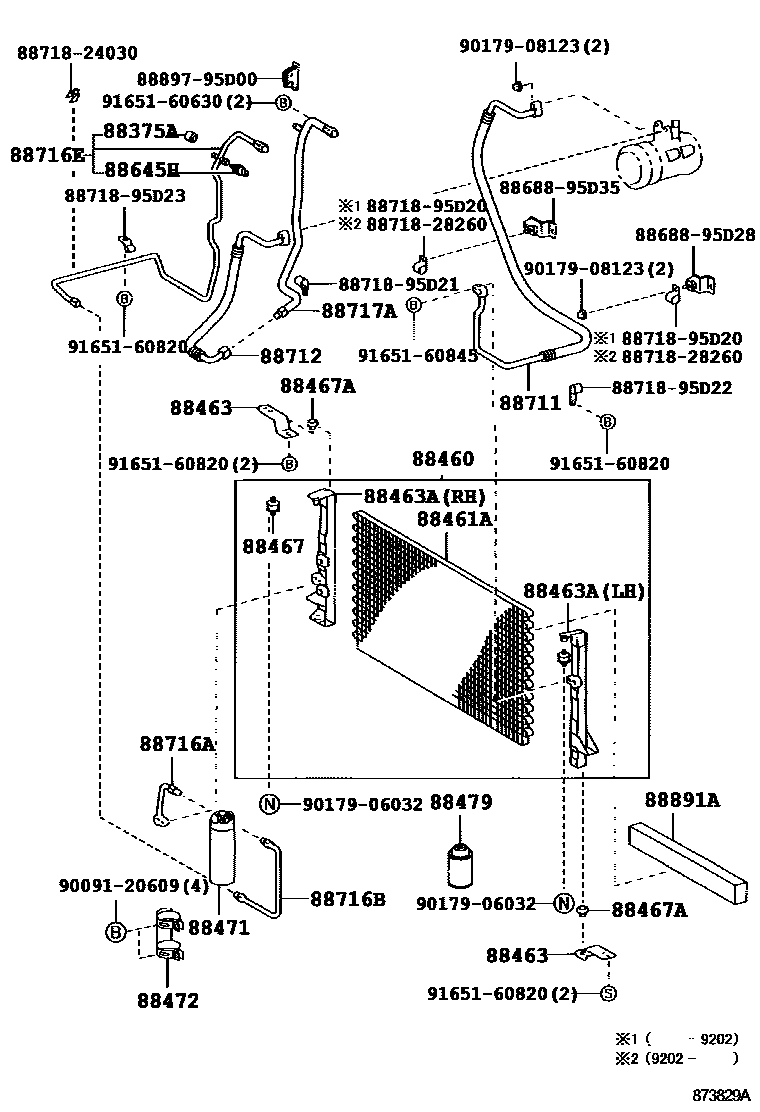

HEATING & AIR CONDITIONING - COOLER PIPING
88375ACAP, SERVICE VALVE (FOR COOLER PIPE)
88460CONDENSER ASSY, COOLER
SINGLE TYPE(DEALER OPT)
SINGLE TYPE(DEALER OPT)
SINGLE TYPE OR ISRAEL SPEC & DUAL TYPE
SINGLE TYPE
88461ACORE, COOLER CONDENSER
88463BRACKET, COOLER CONDENSER, NO.1
RH
LH
88467CUSHION, COOLER CONDENSER, NO.1
SINGLE TYPE---DEALER OPT
88467ACUSHION, COOLER CONDENSER, NO.2
NO.1
NO.2
88471TANK, RECEIVER AIR CONDITIONER
88472BRACKET, RECEIVER TANK, NO.1
88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
250G
250G
200G
88645HSWITCH, PRESSURE NO.1
SINGLE TYPE OR ISRAEL SPEC & DUAL TYPE OR ISRAEL SPEC & DUAL TYPE & W(SMALL COOL BOX)
DUAL TYPE
sub88645-30281
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88716APIPE, COOLER REFRIGERANT LIQUID, A
W(SMALL COOL BOX)
88716BPIPE, COOLER REFRIGERANT LIQUID, B
88716EPIPE, COOLER REFRIGERANT LIQUID, E
SINGLE TYPE
ISRAEL SPEC & DUAL TYPE---MAKER OPT
ISRAEL SPEC & SINGLE TYPE---MAKER OPT & W(SMALL COOL BOX)
SINGLE TYPE---MAKER OPT & W(SMALL COOL BOX)
SINGLE TYPE---DEALER OPT
SINGLE TYPE---MAKER OPT
DUAL TYPE---MAKER OPT
SINGLE TYPE---MAKER OPT & W(LARGE COOL BOX)
SINGLE TYPE---MAKER OPT & W(SMALL COOL BOX)
SINGLE TYPE,NO.2
SINGLE TYPE---DEALER OPT
SINGLE TYPE---DEALER OPT,NO.2
SINGLE TYPE OR ISRAEL SPEC & SINGLE & DUAL
SINGLE TYPE
ISRAEL SPEC & W(TWIN *SNR) & DUAL TYPE OR ISRAEL SPEC & DUAL TYPE
DUAL TYPE---MAKER OPT
ISRAEL SPEC & DUAL TYPE---MAKER OPT
W(SMALL COOL BOX)
SINGLE TYPE---MAKER OPT & W(SMALL COOL BOX)
SINGLE TYPE---MAKER OPT & W(SMALL COOL BOX);ISRAEL SPEC & SINGLE TYPE---MAKER OPT& W(SMALL COOL BOX)
SINGLE & W(COOL BOX) OR DUAL & W(COOL BOX)
SINGLE TYPE---MAKER OPT & SMALL COOL BOX,NO.2
SINGLE TYPE---MAKER OPT & SMALL COOL BOX,NO.1
DUAL TYPE---MAKER OPT
NO.1
DUAL AIR CONDITIONER(MAKER OPTION),NO.2
W(SMALL COOL BOX)
88717APIPE, COOLER REFRIGERANT SUCTION, A
SINGLE
W(COOL BOX)
SINGLE & W(COOL BOX)
SINGLE
SINGLE TYPE---MAKER OPT
SINGLE & W(COOL BOX)
DUAL
DUAL & W(COOL BOX)
SINGLE
MAKER OPT
W(COOL & HOT BOX)
SINGLE & W(COOL BOX)
W(COOL BOX)
SINGLE TYPE---MAKER OPT & W(COOL BOX) OR ISRAEL SPEC & W(TWIN *SNR) & DUAL TYPE;ISRAEL SPEC & DUAL TYPE
DUAL
DUAL & W(COOL BOX)
SINGLE
SINGLE & W(COOL BOX)
DEALER OPTION;DUAL & W(COOL BOX)
8868895D28BRACKET, COOLER DIAPHRAGM
main88688-95D28
8868895D35BRACKET, COOLER DIAPHRAGM
main88688-95D35
8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-24030
8871828260PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-28260
8871895D20PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-95D20
8871895D21PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-95D21
8871895D22PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-95D22
8871895D23PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-95D23
8889795D00VALVE, COOLER MAGNET
main88897-95D00
9009120609
main90091-20609
9017906032
main90179-06032
9017908123
main90179-08123
9165160630
main91651-60630
9165160820
main91651-60820
9165160845
main91651-60845
33 parts on this diagram · 16 diagrams in section
