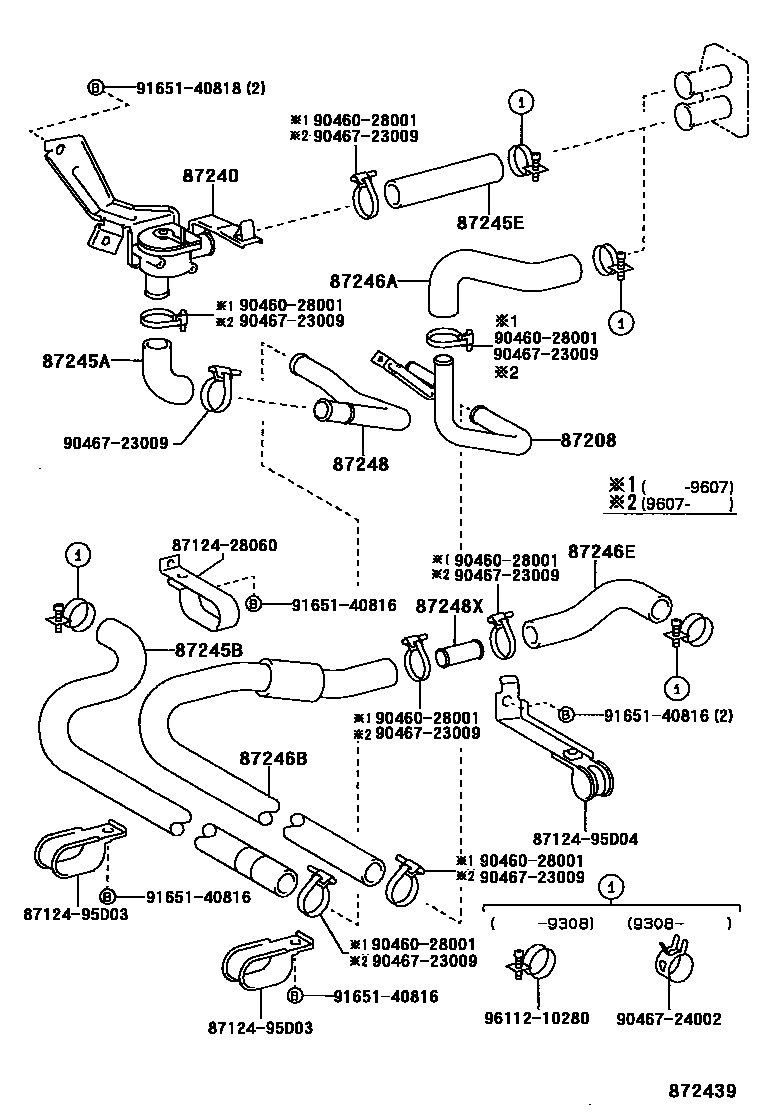

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-95D27iTCR1#,2#..LHD199005-199912

main87208-95D28iTCR1#,2#..RHD199005-199912

87240VALVE ASSY, HEATER WATER

main87240-28070iTCR1#..RHD199308-199912

main87240-95D01iTCR1#,2#..LHD199005-199912

main87240-95D02iTCR1#,2#..RHD199005-199308

87245AHOSE, HEATER WATER, INLET A

main87245-95D18iTCR1#,2#..LHD199005-199912

main87245-95D26iTCR1#,2#..RHD199005-199912

87245BHOSE, HEATER WATER, INLET B

main87245-95D30iTCR1#,2#..RHD199005-199912

*H,L=685

87245EHOSE, HEATER WATER, INLET E

main87245-95D17iTCR1#,2#..LHD199005-199912

main87245-95D28iTCR1#,2#..RHD199005-199912

87246AHOSE, HEATER WATER, OUTLET A

main87245-95D20iTCR1#,2#..LHD199005-199912

main87245-95D23iTCR1#,2#..RHD199005-199912

87246BHOSE, HEATER WATER, OUTLET B

main87245-95D22iTCR1#,2#..LHD199005-199912

L=710

main87245-95D32iTCR1#,2#..RHD199005-199912

L=1015

87246EHOSE, HEATER WATER, OUTLET E

main87245-95D31iTCR1#,2#199005-199912

87248PIPE SUB-ASSY, WATER

main87248-28010iTCR1#,2#..RHD199005-199912

87248XPIPE, HEATER WATER

main87248-28020iTCR1#,2#199005-199912

8712428060CLAMP, HEATER

main87124-28060

8712495D03CLAMP, HEATER

main87124-95D03

8712495D04CLAMP, HEATER

main87124-95D04

9046028001

main90460-28001

9046723009

main90467-23009

9046724002

main90467-24002

9165140816

main91651-40816

9165140818

main91651-40818

9611210280

main96112-10280

19 parts on this diagram · 2 diagrams in section
