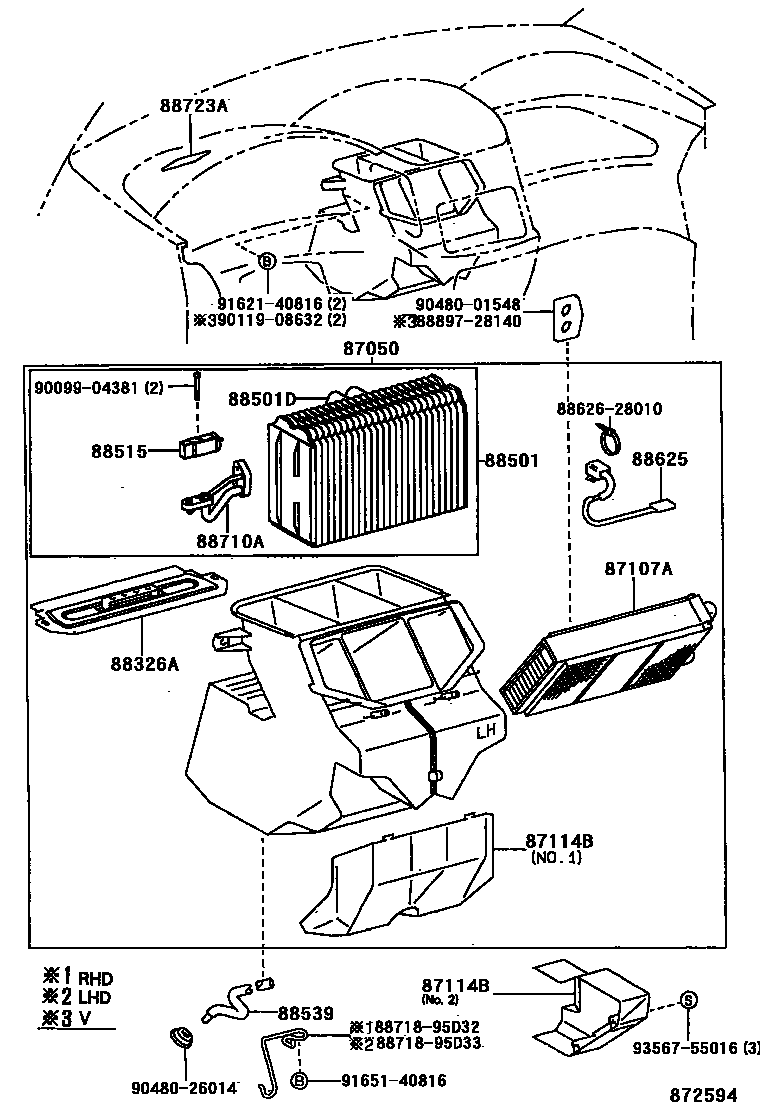

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL TYPE 0002 1AUTO TYPE 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1REAR, DENSO 0010 1REAR, MATSUSHITA 0011 1REAR 0012 1REAR 0013 1W/O(COOL BOX) 0014 1W(COOL BOX)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28060iTCR11..RHD..W199308-199710

main87050-28070iTCR1#,2#..LHD199308-199710

main87050-28080iTCR11..ARL199308-199912

main87050-28200iTCR11..RHD..W199710-199912

main87050-28210iTCR1#,2#..LHD199710-199912

main87050-95D00iTCR11..LHD..ATM199005-199308

SINGLE TYPE OR ISRAEL SPEC & DUAL TYPE

main87050-95D01iTCR11..RHD..W199005-199308

main87050-95D02iTCR1#,2#..LHD199005-199108

SINGLE TYPE

main87050-95D03iTCR11..RHD..W199005-199108

SINGLE TYPE

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28130iTCR1#,2#..LHD199308-199912

main87107-28140iTCR11..ARL199308-199912

main87107-28150iTCR11..RHD..W199308-199912

main87107-95D02iTCR11..LHD..ATM199005-199308

SINGLE TYPE OR ISRAEL SPEC & DUAL TYPE

main87107-95D03iTCR1#,2#..LHD199005-199108

SINGLE TYPE

main87107-95D04iTCR11,21..ARL199108-199308

main87107-95D05iTCR11..RHD..W199005-199308

87114BCOVER, HEATER

main87114-28020iTCR11..RHD..W199308-199912

NO.3

main87114-95D00iTCR1#,2#..LHD199005-199108

main87114-95D01iTCR11..RHD..W199005-199108

main87114-95D03iTCR11,21..ARL199108-199912

main87114-95D04iTCR1#,2#..LHD199005-199912

NO.1

main87114-95D05iTCR11..RHD..W199005-199308

NO.1

88326APLATE, COVER

main88326-28010iTCR11,21..ARL199108-199308

main88326-28040iTCR1#,2#199308-199912

main88326-95D01iTCR10,20;TCR11,21..W199108-199308

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28110iTCR1#,2#199308-199912

sub88515-22240

sub90099-04381

main88501-95D03iTCR1#,2#199005-199308

88501DEVAPORATOR SUB-ASSY, COOLER, NO.2

main88511-28041iTCR10..ARL199801-199912

88515VALVE, COOLER EXPANSION

main88515-14062iTCR11..LHD..ATM199005-199303

SINGLE TYPE OR ISRAEL SPEC & DUAL TYPE

main88515-20100iTCR1#,2#..ARL,GEN,W199308-199912

sub88515-22240

main88515-26020iTCR10..V199408-199912

REAR

main88515-33010iTCR1#,2#199303-199308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-28060iTCR1#..RHD199308-199912

main88539-28100iTCR10,2#..W199406-199608

SINGLE TYPE---MAKER OPT

main88539-95D03iTCR1#,2#..RHD199005-199308

main88539-95D04iTCR1#,2#..LHD..W199005-199912

88625THERMISTOR, COOLER, NO.1

main88625-16210iTCR10,2#;TCR11..W199801-199912

main88625-60050iTCR1#,2#..LHD199308-199710

main88625-60060iTCR11..RHD..W199005-199308

SINGLE TYPE---MAKER OPT

88710ATUBE ASSY, AIR CONDITIONER

main88710-28720iTCR1#,2#199005-199308

main88710-28870iTCR1#,2#199308-199912

88723ALABEL, COOLER SERVICE CAUTION

main88723-20040iTCR10,2#;TCR11..RHD;TCR11..LHD..MTM199310-199912

main88723-28100iTCR11..LHD..ATM199208-199301

ISRAEL SPEC & SINGLE SPEC

main88723-28110iTCR11..ARL199005-199011

W(TWIN *SNR) & DUAL TYPE

main88723-28130iTCR21..ARL199108-199308

DUAL TYPE---MAKER OPT

main88723-28170iTCR11..LHD..ATM199310-199801

ISRAEL SPEC & W(TWIN *SNR) & DUAL TYPE OR ISRAEL SPEC & DUAL TYPE

main88723-33020iTCR1#,21..LHD199109-199308

*FRG & SINGLE TYPE

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

8871895D32PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D32

8871895D33PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D33

8889728140VALVE, COOLER MAGNET

main88897-28140

9009904381

main90099-04381

9011908632

main90119-08632

9048001548

main90480-01548

9048026014

main90480-26014

9162140816

main91621-40816

9165140816

main91651-40816

9356755016

main93567-55016

22 parts on this diagram · 14 diagrams in section
