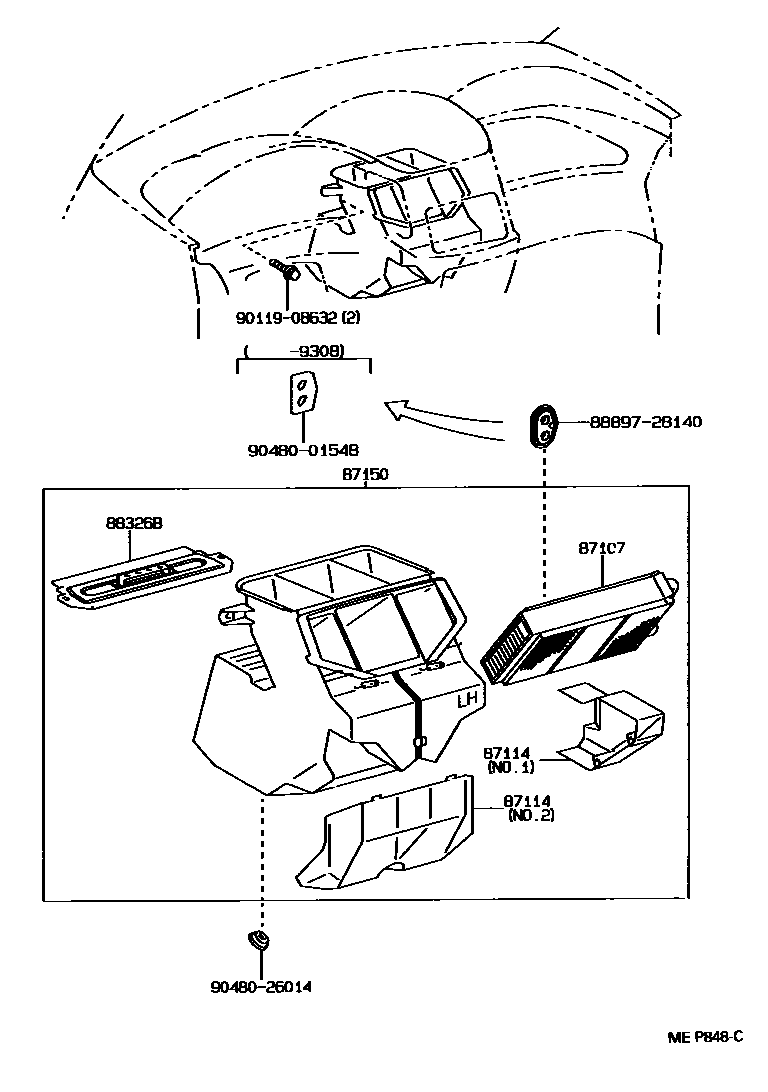

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1MANUAL 0002 1AUTO 0003 1MANUAL 0004 1AUTO

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-28130iTCR1#,2#..LHD..W199308-199912

main87107-28140iTCR1#..ARL199308-199912

main87107-28150iTCR11..RHD..W199308-199912

main87107-95D02iTCR1#,2#..LHD199005-199108

COLD SPEC

main87107-95D03iTCR1#,2#..LHD199005-199108

main87107-95D04iTCR10..ARL199108-199308

main87107-95D05iTCR11..RHD..W199108-199308

87114COVER, HEATER

main87114-28020iTCR11..RHD..W199308-199912

NO.2

main87114-95D00iTCR1#,2#..LHD199005-199108

main87114-95D01iTCR11..RHD..W199005-199108

COLD SPEC,NO.1

main87114-95D04iTCR1#,2#..LHD199005-199108

COLD SPEC,NO.2

main87114-95D05iTCR11..RHD..W199005-199108

COLD SPEC,NO.2

87150RADIATOR ASSY, HEATER

main87150-28290iTCR11,21..ARL199108-199308

main87150-28320iTCR1#,2#..LHD..W199308-199912

main87150-28330iTCR10..ARL199308-199912

main87150-28340iTCR11..RHD..W199308-199912

main87150-28350iTCR11..ARL199308-199912

main87150-95D10iTCR1#,2#..LHD199005-199108

COLD SPEC

main87150-95D11iTCR1#,2#..LHD199005-199108

main87150-95D12iTCR11..RHD..W199108-199308

main87150-95D13iTCR10..ARL199108-199308

88326BPLATE, COVER

main88326-28040iTCR11..ARL199308-199912

main88326-95D00iTCR1#,2#199005-199108

8889728140VALVE, COOLER MAGNET

main88897-28140

9011908632

main90119-08632

9048001548

main90480-01548

9048026014

main90480-26014

8 parts on this diagram · 4 diagrams in section
