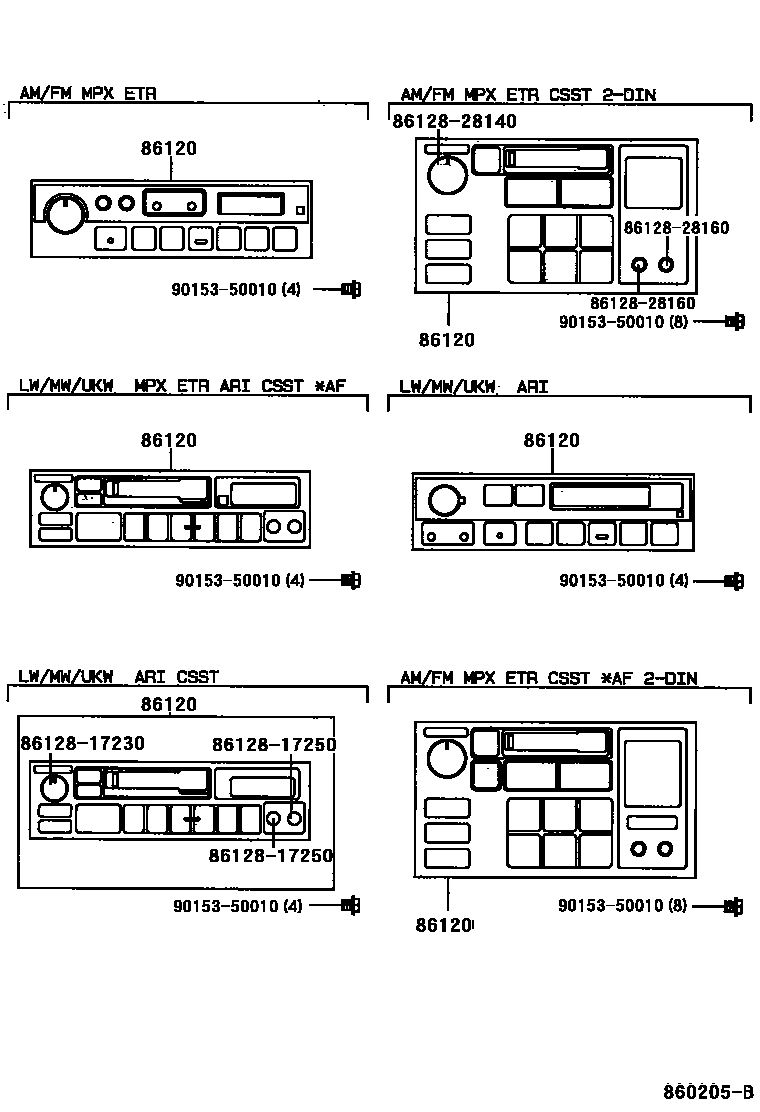

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1

86120RECEIVER ASSY, RADIO

main86120-17240iTCR1#,2#..W199005-199101

MATSUSHITA,LW/MW/UKW ARI CST

sub86120-2B180

main86120-28070iTCR11,21..ARL199005-199508

FUJITSU TEN,AM/FM MPX ETR CST *AF 2DIN

main86120-28090iTCR1#,2#..W199005-199101

FUJITSU TEN,LW/MW/UKW MPX ETR ARI CST *AF

sub86120-28120

main86120-28120iTCR1#,2#..W199102-199308

FUJITSU TEN,LW/MW/UKW MPX ETR CST ARI *AF

main86120-28150iTCR11..ARL;TCR10,21..ATM..07S199108-199801

FUJITSU TEN,AM/FM MPX ETR CST 2DIN

main86120-28150iTCR10..GEN199308-199801

FUJITSU TEN

main86120-28220iTCR1#,2#..W199308-199406

FUJITSU TEN,LW/MW/UKW MPX ETR ARI CST *AF

sub86120-28221

main86120-28221iTCR11,21..W199406-199503

FUJITSU TEN,LW/MW/UKW MPX ETR ARI CST *AF

sub86120-28222

main86120-28222iTCR11,21..W199503-199608

FUJITSU TEN,LW/MW/UKW MPX ETR ARI CST *AF

main86120-28330iTCR11..ARL;TCR10..LHD..ATM199801-199912

FUJITSU TEN,ID=17803,AM/FM CASSETTE & CD

main86120-2A180iTCR10..V199408-199801

MATSUSHITA,ID=57403

main86120-2B070iTCR11,21..ARL199005-199308

FUJITSU TEN,AM/FM MPX ETR CST 2DIN

main86120-2B070iTCR11,21..ARL199005-199508

FUJITSU TEN

main86120-2B180iTCR1#,2#..W199101-199308

MATSUSHITA,LW/MW/UKW ARI CST

main86120-2B350iTCR10..ARL199108-199308

FUJITSU TEN

main86120-2B360iTCR11..LHD..ATM;TCR1#..GL..(ARL,GEN)199308-199801

MATSUSHITA,ID=57400,AM/FM ETR CST CD *AF

main86120-2B400iTCR10..MTM..ARL199508-199801

FUJITSU TEN,AM/FM ETR CST

main86120-2B400iTCR10..MTM..ARL199508-199705

FUJITSU TEN

main86120-2B450iTCR11,21..W199308-199608

MATSUSHITA,ID=58405,LW/MW/UKW ARI CST

main86120-2B450iTCR11,21..W199408-199608

MATSUSHITA,ID=58405

main86120-2B560iTCR1#,2#..W199608-199912

FUJITSU TEN,ID=18401,LW/MW/UKW ARI CST

main86120-2B610iTCR1#..ARL,GEN,V199801-199912

FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP)

main86120-2B620iTCR11..LHD..ATM;TCR1#..GL..(ARL,GEN)199801-199912

MATSUSHITA,ID=57410,AM/FM ETR CASSETTE (AM=10KHZ STEP)

main86120-32111iTCR11,21..LHD199005-199608

FUJITSU TEN,LW/MW/UKW ARI

main86120-32390iTCR10,20..ARL199005-199108

FUJITSU TEN

main86120-60210iTCR1#,2#..W199608-199912

MATSUSHITA, ID=58408,LW/AM/FM MPX ETR CST ARI

8612828160KNOB, RADIO RECEIVER

main86128-28160

9015350010

main90153-50010

3 parts on this diagram · 5 diagrams in section
