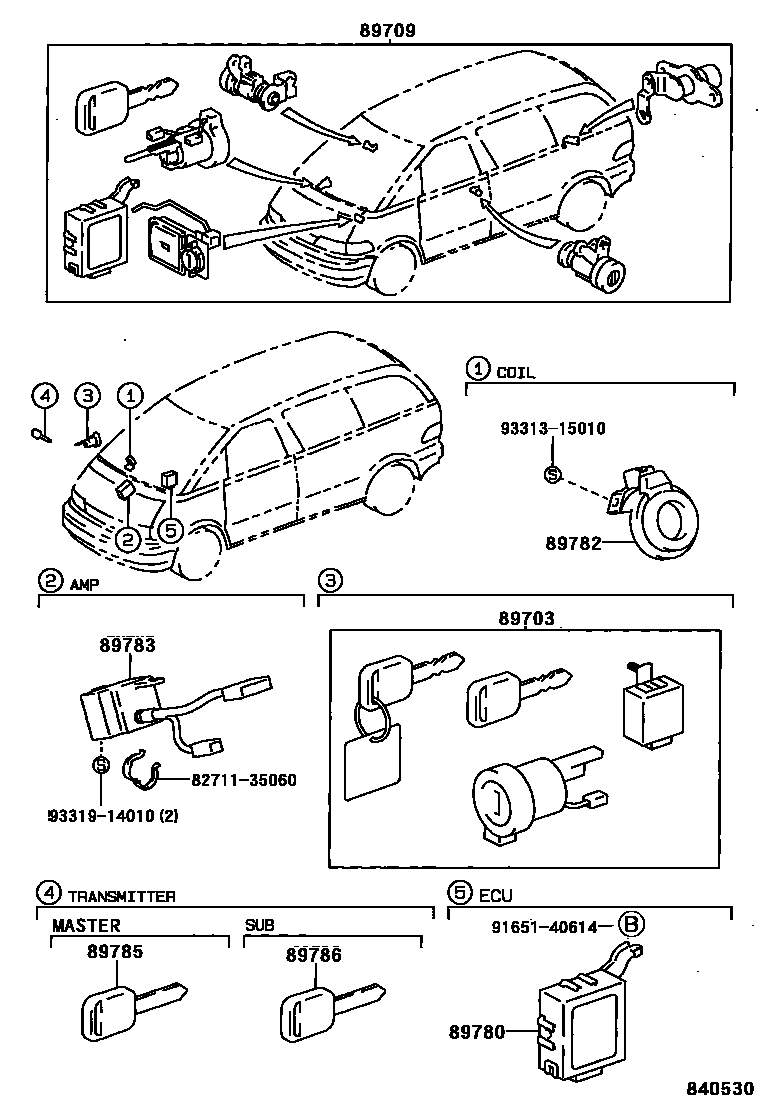

ANTI-THEFT DEVICE

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-28010iTCR1#,2#..LHD..W199608-199912

main89703-28020iTCR1#..RHD..MTM199608-199912

main89703-28030iTCR1#..RHD..ATM199608-199912

89709COMPUTER SET, TRANSPONDER KEY

main89709-28010-B0iTCR1#,2#..LHD..W199801-199912

BLUISH GRAY,TRIM1#

main89709-28020-B0iTCR1#,2#..LHD..W199608-199801

BLUISH GRAY,TRIM1#

main89709-28030-B0iTCR10..MTM..ARL199608-199801

W(*80),BLUISH GRAY,TRIM1#

main89709-28030-B0iTCR11..RHD..MTM199608-199801

BLUISH GRAY,TRIM1#

main89709-28040-B0iTCR11..RHD..ATM..W199608-199801

W(*80),BLUISH GRAY,TRIM1#

main89709-28040-B0iTCR11..RHD..ATM..W199608-199801

BLUISH GRAY,TRIM1#

main89709-28040-E0iTCR11..ARL199608-199801

W(*80),MD.GREIGE,TRIM4#

main89709-28060-B0iTCR10..MTM..ARL199608-199710

BLUISH GRAY,TRIM1#

main89709-28070-B0iTCR1#..ATM..ARL199608-199710

BLUISH GRAY,TRIM1#

main89709-28070-E0iTCR11..ARL199608-199710

MD.GREIGE,TRIM4#

main89709-28080-B0iTCR1#..RHD..MTM199801-199912

BLUISH GRAY,TRIM1#

main89709-28090-B0iTCR1#..RHD..ATM199801-199912

BLUISH GRAY,TRIM1#

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-28010iTCR1#,2#..MTM;TCR11..LHD..ATM199608-199912

main89780-28020iTCR1#..RHD..ATM199608-199912

89782COIL, TRANSPONDER KEY

main89782-28010iTCR1#,2#..ARL,W199608-199912

89783AMPLIFIER, TRANSPONDER KEY

main89783-28010iTCR1#,2#..ARL,W199608-199912

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-16020iTCR1#,2#..ARL,W199608-199912

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-16020iTCR1#,2#..ARL,W199608-199912

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9165140614

main91651-40614

9331315010

main93313-15010

9331914010

main93319-14010

11 parts on this diagram · 1 diagram in section
