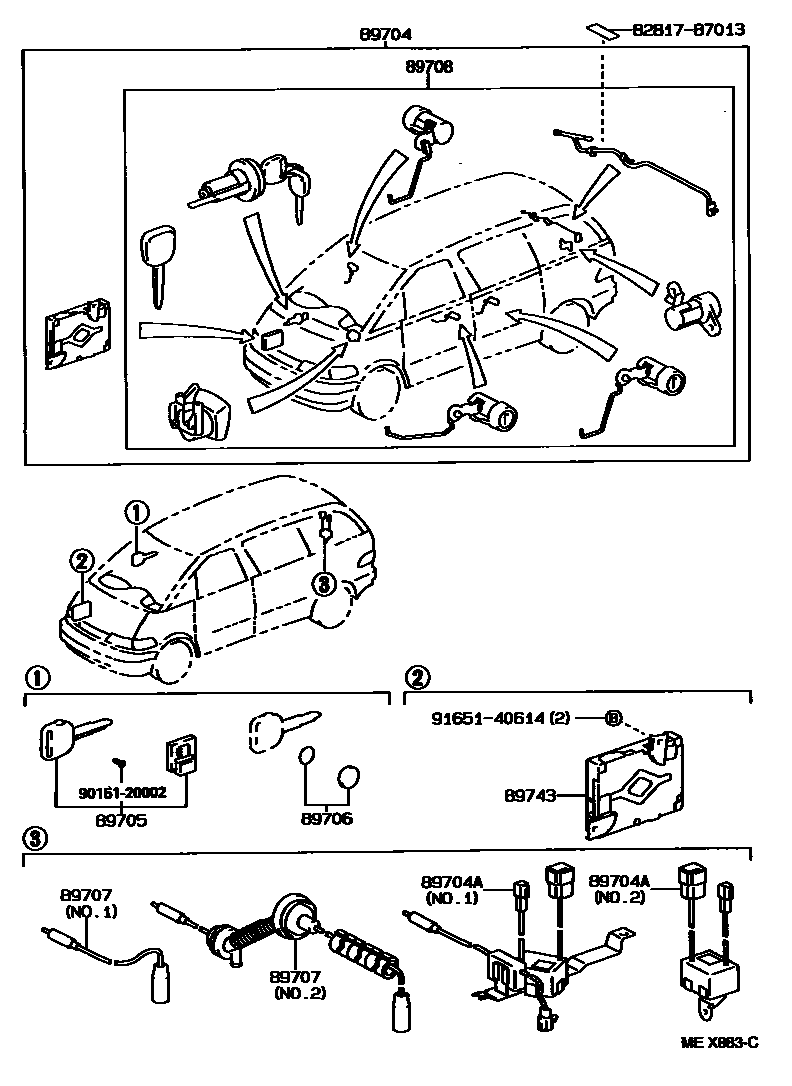

WIRELESS DOOR LOCK
89704CONTROL SET, WIRELESS DOOR LOCK
89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)
NO.1
NO.2
89705TRANSMITTER, DOOR CONTROL
1 SET
2 SETS
89706BATTERY SET, TRANSMITTER
89707CORD SUB-ASSY, WIRELESS DOOR LOCK
NO.1
NO.2
89708CYLINDER SET, WIRELESS DOOR LOCK
89743RECEIVER, DOOR CONTROL
8281787013PROTECTOR, WIRING HARNESS, NO.1
main82817-87013
9015120002
main90151-20002
9165140614
main91651-40614
10 parts on this diagram · 1 diagram in section
