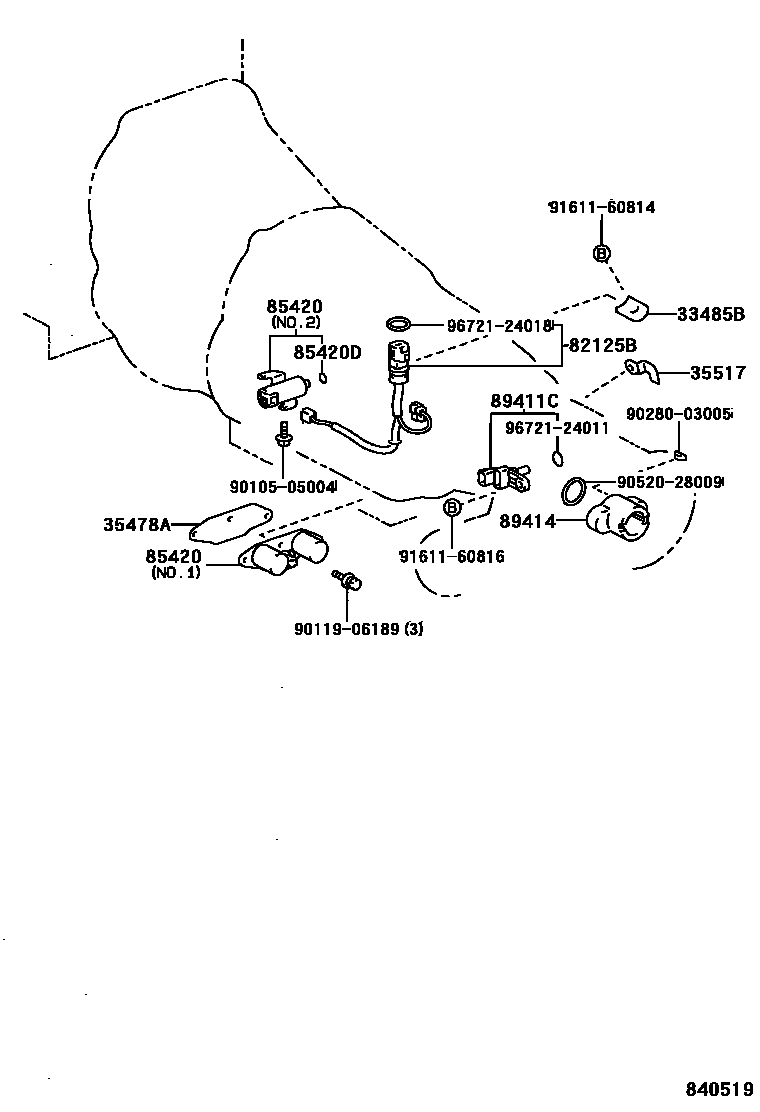

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

33485BPLATE, TRANSMISSION WIRE

main33485-28010iTCR1#,2#..ATM199005-199912

35478AGASKET, SHIFT CONTROL SOLENOID

main35478-30010iTCR1#,2#..ATM199005-199912

35517PLATE, TRANSMISSION WIRE LOCK

main35517-28010iTCR2#..ATM199005-199308

82125BWIRE, TRANSMISSION

main82125-28010iTCR1#..ATM199005-199912

85420SOLENOID ASSY, TRANSMISSION

main85420-30050iTCR1#,2#..ATM199005-199912

NO.1

main85420-30070iTCR1#,21..ATM199005-199912

NO.2

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iTCR1#,2#..ATM199005-199912

89411CSENSOR, SPEED

main89411-28020iTCR1#..ATM199005-199912

main89411-28030iTCR2#..ATM199005-199308

89414ROTOR, SENSOR

main89414-30011iTCR1#..ATM199005-199912

main89414-35010iTCR2#..ATM199005-199308

9010505004

main90105-05004

9011906189

main90119-06189

9028003005

main90280-03005

9052028009

main90520-28009

9161160814

main91611-60814

9161160816

main91611-60816

9672124011

main96721-24011

9672124018

main96721-24018

16 parts on this diagram · 2 diagrams in section
