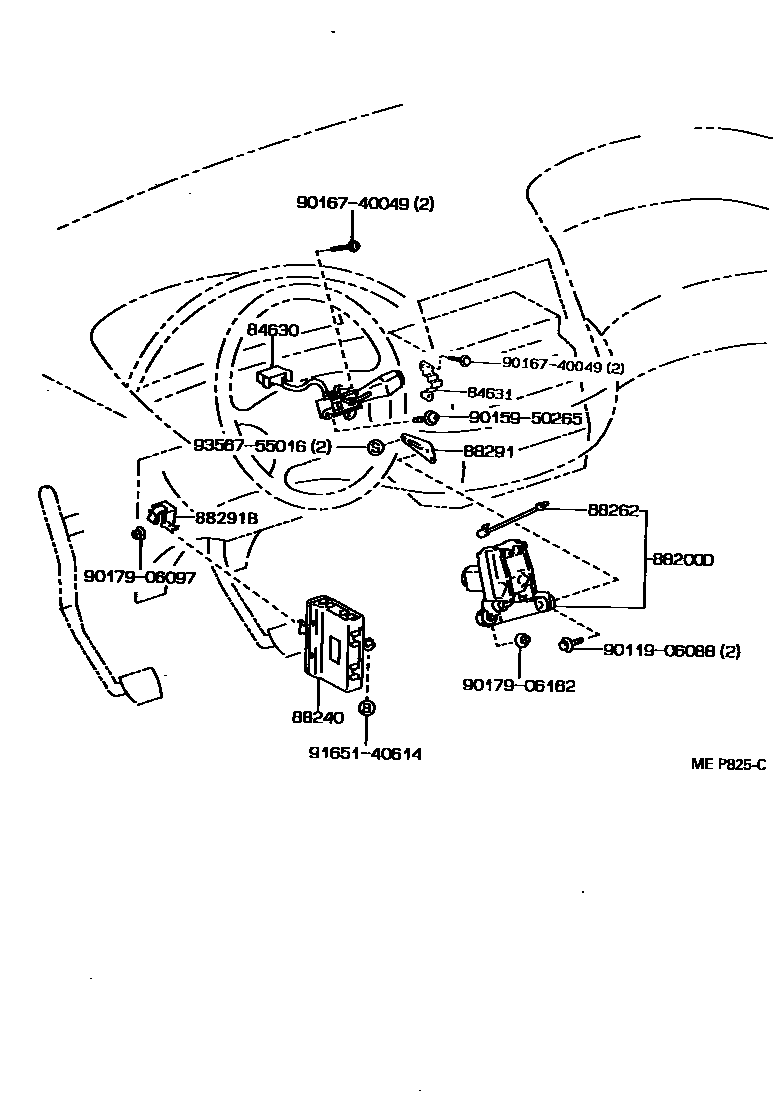

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-28050iTCR11..RHD..ATM199308-199912

main84630-28060iTCR11..LHD..ATM199308-199607

sub84630-28061

sub84631-28010

main84630-28060iTCR11..RHD..ATM199308-199607

W(*80)

sub84630-28061

sub84631-28010

main84630-28061iTCR10..ATM..ARL;TCR11..LHD..ATM199607-199912

W(*80)

84631BRACKET,CRUISE SWITCH

main84631-28010iTCR1#..ATM..(ARL,W)199605-199912

88200DACTUATOR ASSY, CRUISE CONTROL

main88002-28071iTCR1#..LHD..ATM..(V,W)199308-199912

main88002-28090iTCR11..RHD..ATM199308-199912

88240COMPUTER ASSY, CRUISE CONTROL

main88240-28140iTCR11..RHD..ATM199308-199608

main88240-28150iTCR11..LHD..ATM199308-199608

main88240-28170iTCR1#..LHD..ATM..(V,W)199608-199912

main88240-28180iTCR1#..RHD..ATM199608-199912

88262ROD, SPEED CONTROL

main88262-28070iTCR1#..LHD..ATM..(V,W)199308-199912

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-28030iTCR11..LHD..ATM199308-199912

88291BBRACKET, SPEED CONTROL(AUTO DRIVE), NO.2

main88291-28050iTCR11..LHD..ATM199308-199912

main88291-28080iTCR11..RHD..ATM199308-199912

9011906088

main90119-06088

9015950265

main90159-50265

9016740049

main90167-40049

9017906097

main90179-06097

9017906162

main90179-06162

9165140614

main91651-40614

9356755016

main93567-55016

14 parts on this diagram · 2 diagrams in section
