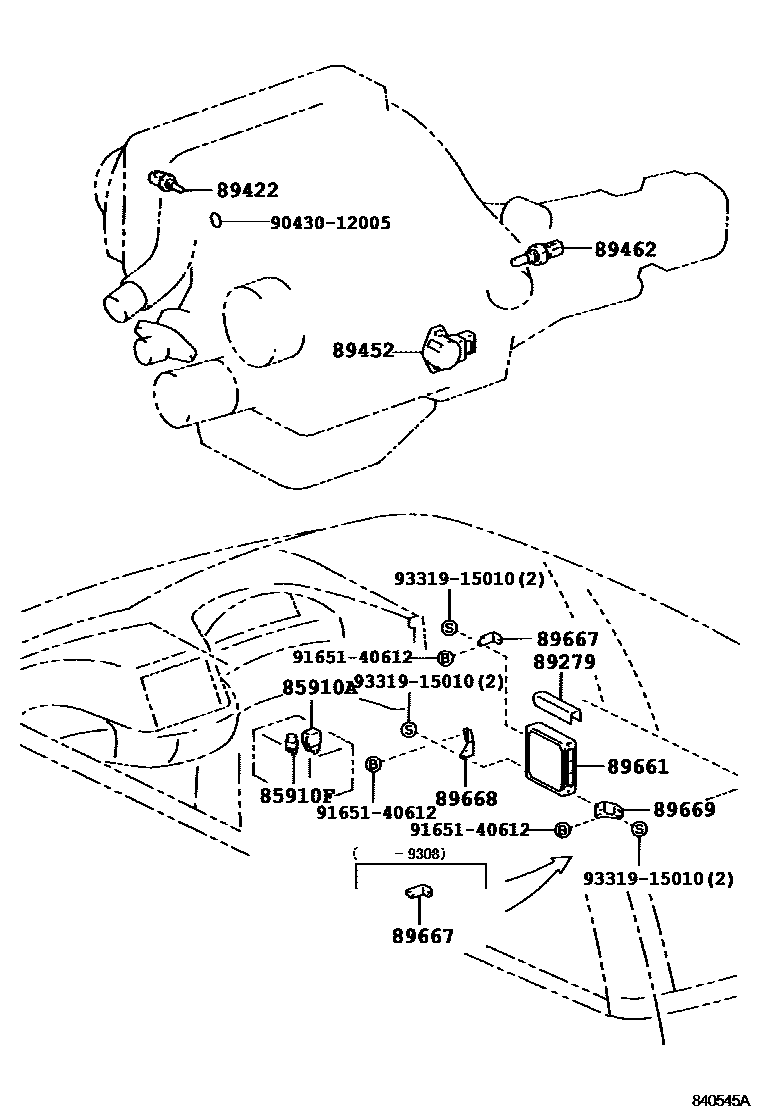

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iTCR1#,2#199005-199608

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iTCR1#,2#199005-199912

89279COVER, ENGINE CONTROL COMPUTER

main89279-28010iTCR1#,2#199005-199912

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iTCR1#,2#199005-199912

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iTCR1#,2#199005-199401

main89452-20130iTCR1#,2#199608-199912

main89452-22090iTCR1#,2#199401-199608

89462SWITCH, START INJECTOR TIME

main89462-20020iTCR1#,2#199005-199608

89661COMPUTER, ENGINE CONTROL

main89661-28150iTCR11..ATM..W199005-199103

sub89661-28151

main89661-28151iTCR11..ATM..W199103-199401

main89661-28170iTCR1#,2#..MTM..ARL199005-199008

sub89661-28171

main89661-28171iTCR1#,2#..MTM..ARL199101-199401

main89661-28180iTCR1#,2#..MTM..W199005-199103

sub89661-28181

main89661-28181iTCR1#,2#..MTM..W199103-199401

main89661-28190iTCR1#,2#..ATM..ARL199005-199008

sub89661-28191

main89661-28191iTCR1#,2#..ATM..ARL199008-199108

sub89661-28260

main89661-28260iTCR1#,21..ATM..ARL199108-199401

main89661-28340iTCR10..GEN199308-199401

main89661-28390iTCR11..RHD..MTM199308-199401

LEADED SPEC

main89661-28410iTCR1#,2#..MTM199401-199408

main89661-28411iTCR1#,2#..MTM199408-199608

main89661-28420iTCR11..ATM..W199401-199408

main89661-28421iTCR1#..ATM..(ARL,W)199408-199608

main89661-28460iTCR1#..ATM..ARL199401-199408

main89661-28480iTCR10..GEN199401-199407

main89661-28481iTCR10..GEN199407-199608

main89661-28490iTCR11..RHD..MTM199401-199608

LEADED SPEC

main89661-28500iTCR10..GEN199401-199608

LEADED SPEC

main89661-28530iTCR10..V199408-199608

main89661-28630iTCR11..ATM..W199608-199805

main89661-28640iTCR1#..MTM..W199608-199805

main89661-28650iTCR11..ARL199810-199912

HONG KONG SPEC

main89661-28650iTCR11..LHD..ATM199608-199912

*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC OR HOLLAND SPEC

main89661-28650iTCR11..RHD..ATM..W199805-199912

main89661-28660iTCR2#;TCR11..RHD..MTM199608-199912

main89661-28660iTCR1#..LHD..MTM199608-199912

*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC OR HOLLAND SPEC

main89661-28670iTCR1#..ATM..ARL199608-199912

main89661-28680iTCR10..MTM..ARL199608-199912

main89661-28710iTCR11..LHD..ATM199608-199912

BRAZIL SPEC

main89661-28730iTCR10..V199608-199912

main89661-28740iTCR11..RHD..MTM199608-199912

LEADED SPEC

main89661-28750iTCR10..GEN199608-199912

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28020iTCR2#;TCR11..RHD;TCR11..LHD..ATM;TCR10..ARL,GEN,V199005-199912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28010iTCR1#,2#199005-199308

main89668-28040iTCR1#,2#199308-199912

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89667-28020iTCR1#,2#199005-199308

main89669-28030iTCR1#,2#199308-199912

main89669-28030iTCR1#,2#..ARL,W199407-199608

LEADED SPEC

main89669-28040iTCR10..GEN199407-199608

9043012005

main90430-12005

9165140612

main91651-40612

9331915010

main93319-15010

13 parts on this diagram · 2 diagrams in section
