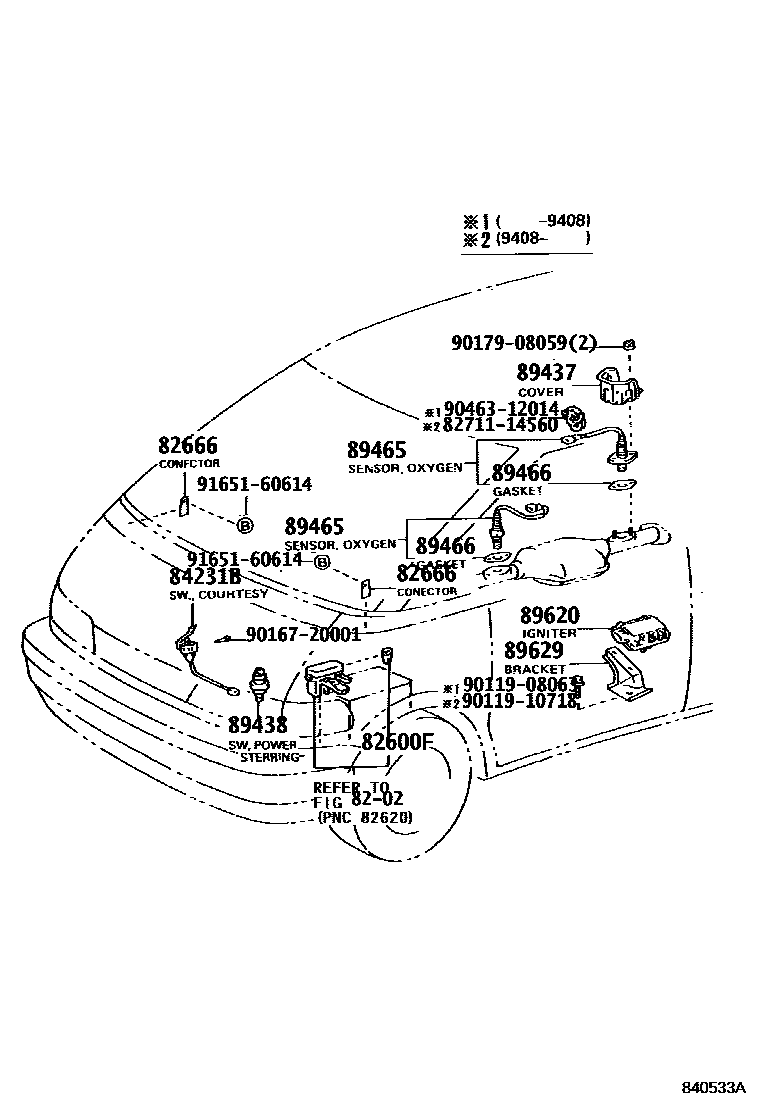

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

8202

82600FFUSE, FUSE BLOCK

main90982-07011iTCR1#,2#..ARL,W199005-199912

30A,GREEN

main90982-09001iTCR11..LHD;TCR1#..GL..(ARL,GEN)199308-199912

5A

main90982-09002iTCR1#,2#199005-199912

10A

main90982-09003iTCR10;TCR11,2#..W;TCR11..ATM..ARL199005-199912

15A

main90982-09004iTCR1#,2#199005-199912

20A,YELLOW

main90982-09005iTCR1#,2#..ARL,W199005-199912

7.5A

82666HOLDER, CONNECTOR

main82666-28020iTCR10,20199005-199108

FRONT DOOR RH

main82666-28030iTCR10;TCR20..MTM199005-199108

FRONT FOOR LH

main82666-28070iTCR1#,2#..LHD199308-199608

main82666-28150iTCR1#,2#..LHD199608-199912

main82666-95D03iTCR1#,2#..LHD199005-199308

DIAG

main82666-95D03iTCR11..RHD..W199005-199108

W(SECURITY SYSTEM & *PW & ELECTRIC REMOTE CONTROL MIRROR),DIAG

84231BSWITCH, COURTESY LAMP

main84231-28030iTCR1#..RHD199110-199912

main84231-95D00iTCR11,21..W199005-199912

89437COVER, SENSOR

main89437-28070iTCR1#,2#199005-199301

89438SWITCH, POWER STEERING OIL PRESSURE

main89438-10010iTCR1#,2#199608-199912

89465SENSOR, OXYGEN

main89465-29415iTCR1#,2#..ARL,W199005-199401

RR(SUB, 2WIRE)

main89465-29495iTCR1#,2#..ARL,W199005-199401

FR(MAIN, 4WIRE)

main89465-29675iTCR1#,2#..ARL,W199608-199912

main89465-29675iTCR1#,2#..ARL,W199401-199608

FR(MAIN, 4WIRE)

main89465-29835iTCR1#,2#..ARL,W199401-199608

RR(SUB, 2WIRE)

89466GASKET, OXYGEN SENSOR

main89466-20020iTCR1#,2#..ARL,W199005-199912

89620IGNITER ASSY

main89621-12010iTCR1#,2#199005-199308

main89621-12050iTCR1#,2#199308-199608

main89621-26010iTCR1#,2#199608-199912

89629BRACKET, IGNITER ASSY

main89629-28020iTCR1#,2#199005-199108

sub89629-28030

main89629-28030iTCR1#,2#199108-199912

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

9011908063

main90119-08063

9011910718

main90119-10718

9016720001

main90167-20001

9017908059

main90179-08059

9046312014

main90463-12014

9165160614

main91651-60614

17 parts on this diagram · 12 diagrams in section
