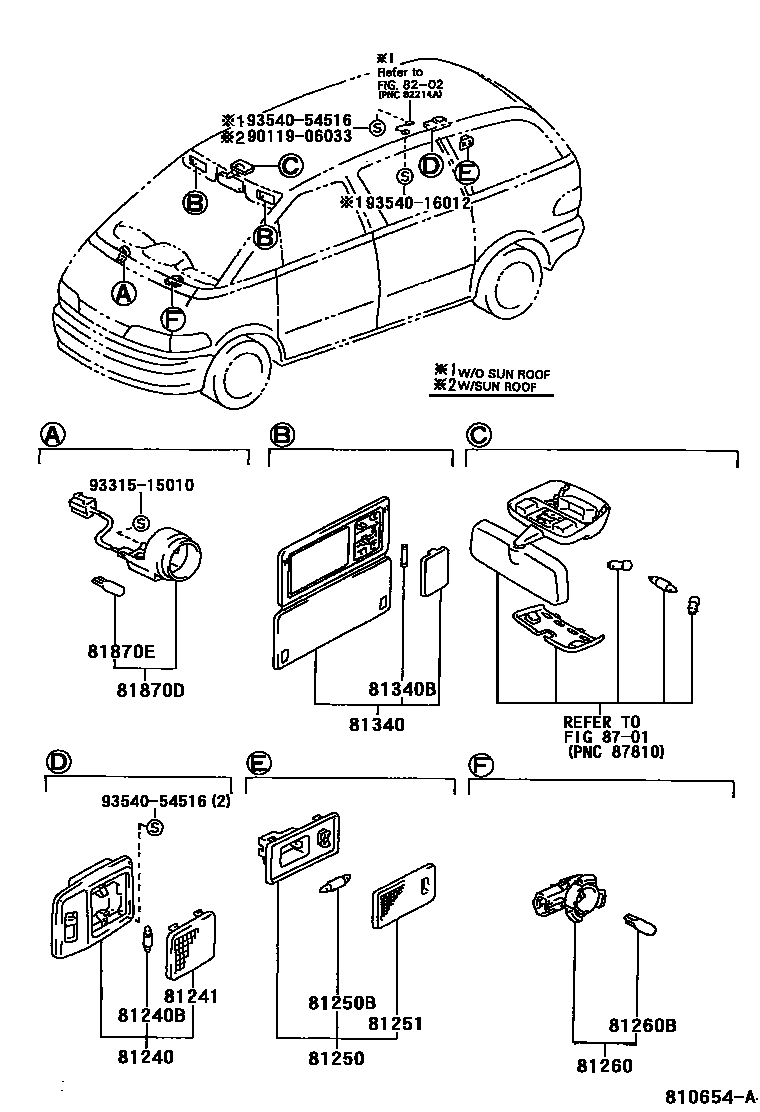

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-95D01-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub81240-95D01

main81240-95D01-05iTCR11,21199005-199308

LIGHT GRAIGE,TRIM4#

sub81240-95D01

main81240-95D01-B2iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub81240-95D01

main81240-95D01-B8iTCR1#,2#199308-199801

LIGHT GRAY,TRIM1#

sub81240-95D01

main81240-95D01-L1iTCR1#..GL..(ARL,GEN)199308-199801

LIGHT GRAIGE,TRIM4#

sub81240-95D01

81240BBULB, ROOM LAMP, NO.1

main99132-12100iTCR1#,2#199005-199912

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-30100iTCR1#,2#199005-199912

81250LAMP ASSY, ROOM, NO.2

main81250-12030-13iTCR1#,2#199005-199308

GRAY,TRIM1#

sub81250-12030

sub81250-95J05

main81250-12030-B1iTCR1#,2#199308-199912

BLUISH GRAY,TRIM1#

sub81250-12030

sub81250-95J05

main81250-12030-E2iTCR1#..GL..(ARL,GEN)199005-199801

LIGHT GRAIGE,TRIM4#

sub81250-12030

sub81250-95J05

81250BBULB, ROOM LAMP, NO.2

main99132-13050iTCR1#,2#199005-199912

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iTCR1#,2#199005-199912

81260LAMP ASSY, GLOVE BOX

main81260-32071iTCR1#..GL..(ARL,GEN)199308-199912

81260BBULB(FOR GLOVE BOX)

main90981-11018iTCR11..ARL199308-199912

12V 1.2W W/O SOCKET

81340LAMP ASSY, VANITY

main81340-33090-B5iTCR11,21..LHD199801-199912

LT.GRAY,TRIM1#

main81340-50040-B0iTCR11..RHD..W199108-199801

LIGHT GRAY,TRIM1#

sub81340-50040

main81340-50040-E0iTCR11..ARL199108-199801

LIGHT GREIGE,TRIM4#

sub81340-50040

main81350-33040-B5iTCR11..RHD199801-199912

LT.GRAY,TRIM1#

main81350-50030-B0iTCR11,21..LHD199108-199801

LIGHT GRAY,TRIM1#

sub81350-50030

main81350-50030-E0iTCR11,21..LHD199108-199608

LIGHT GREIGE,TRIM4#

sub81350-50030

81340BBULB (FOR VANITY LAMP)

main90981-14003iTCR11,21199801-199912

12V 1.5W

main90981-14007iTCR11,21199108-199801

12V 3W

81870DLAMP ASSY, KEY CYLINDER

main81870-28020iTCR11,21..ARL199108-199608

81870EBULB, KEY CYLINDER LAMP

main90981-11014iTCR11,21..ARL199108-199608

14V 1.4W

8701

9011906033

main90119-06033

9331515010

main93315-15010

9354016012

main93540-16012

9354054516

main93540-54516

17 parts on this diagram · 1 diagram in section
