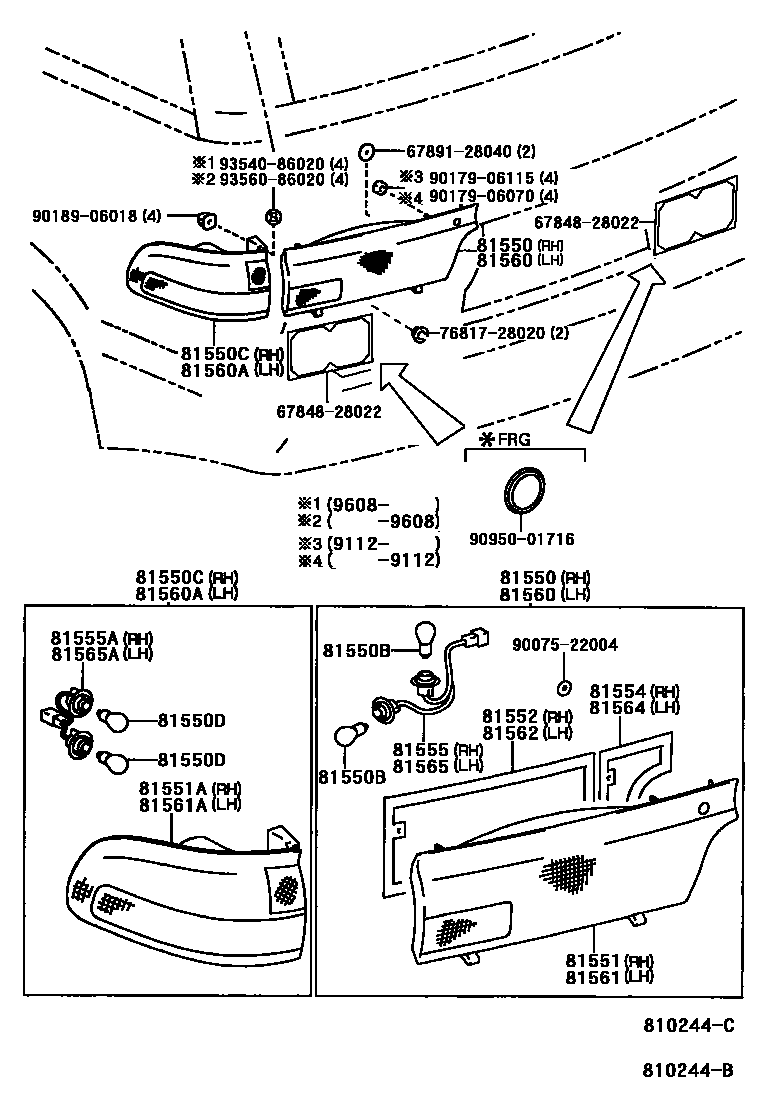

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95D07iTCR1#,2#..ARL199005-199912

main81550-95D08iTCR1#,2#..GEN,V,W199005-199912

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iTCR1#,2#..ARL199005-199912

12V 21W

main99132-21210iTCR1#,2#..ARL199005-199912

12V 21/5W

81550CLAMP ASSY, REAR COMBINATION, RH

main81550-28200iTCR1#,2#199410-199912

main81550-95D03iTCR1#,2#199005-199410

sub81550-28200

81550DBULB(FOR REAR COMBINATION LAMP)

main99132-11210iTCR1#,2#199005-199912

12V 21W

main99132-21210iTCR1#,2#199005-199912

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-95D02iTCR1#,2#..ARL199005-199912

main81551-95D08iTCR1#,2#..GEN,V,W199005-199912

81551ALENS, REAR COMBINATION LAMP, RH

main81551-28200iTCR1#,2#199410-199912

main81551-95D03iTCR1#,2#199005-199410

sub81551-28200

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95D02iTCR1#,2#199005-199912

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-95D02iTCR1#,2#199005-199912

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-95D07iTCR1#,2#..ARL199005-199912

main81555-95D08iTCR1#,2#..GEN,V,W199005-199912

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-95D01iTCR1#,2#199005-199912

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95D06iTCR1#,2#..GEN,V,W199005-199912

main81560-95D08iTCR1#,2#..ARL199005-199912

81560ALAMP ASSY, REAR COMBINATION, LH

main81560-28180iTCR1#,2#199410-199912

main81560-95D03iTCR1#,2#199005-199410

sub81560-28180

81561LENS, REAR COMBINATION LAMP, LH

main81561-95D02iTCR1#,2#..ARL199005-199912

main81561-95D06iTCR1#,2#..GEN,V,W199005-199912

81561ALENS, REAR COMBINATION LAMP, LH

main81561-28180iTCR1#,2#199410-199912

main81561-95D03iTCR1#,2#199005-199410

sub81561-28180

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-95D02iTCR1#,2#199005-199912

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-95D02iTCR1#,2#199005-199912

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-95D07iTCR1#,2#..ARL199005-199912

main81555-95D08iTCR1#,2#..GEN,V,W199308-199912

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-95D01iTCR1#,2#199005-199912

6784828022COVER, BACK DOOR SERVICE HOLE, LH

main67848-28022

6789128040WEATHERSTRIP, REAR DOOR PANEL

main67891-28040

7681728020CLIP, BACK DOOR OUTSIDE GARNISH

main76817-28020

9007522004

main90075-22004

9017906070

main90179-06070

9017906115

main90179-06115

9018906018

main90189-06018

9095001716

main90950-01716

9354086020

main93540-86020

9356086020

main93560-86020

28 parts on this diagram · 1 diagram in section
