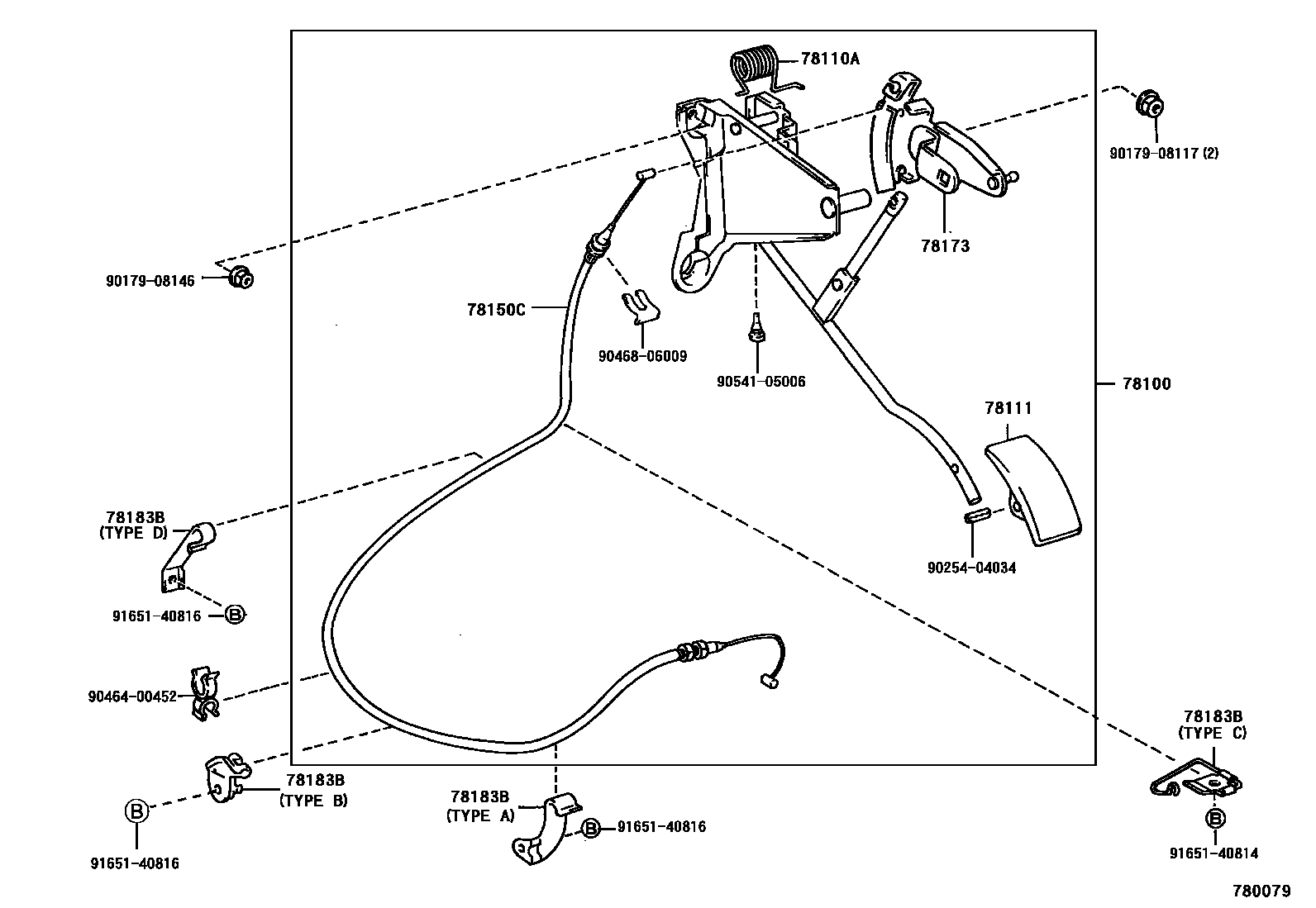

ACCELERATOR LINK

0001 1 0002 1 0003 1

78100LINK ASSY, ACCELERATOR

main78100-28070iTCR1#..LHD..ATM199009-199912

main78100-28080iTCR1#,2#..RHD..ATM199005-199912

main78100-28190iTCR11..LHD..ATM199308-199508

W(CRUISE CONTROL)

main78100-28220iTCR11..RHD..ATM199308-199408

W(CRUISE CONTROL)

main78100-95D01iTCR1#,2#..LHD..MTM199005-199912

main78100-95D03iTCR1#,2#..RHD..MTM199005-199912

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23117iTCR1#,2#..RHD..ATM199005-199912

main90508-23118iTCR1#..LHD..ATM199009-199912

main90508-40008iTCR1#,2#..RHD..MTM199005-199912

main90508-40009iTCR1#,2#..LHD..MTM199005-199912

78111PEDAL, ACCELERATOR

main78111-28010iTCR1#..RHD..ATM199408-199912

W(CRUISE CONTROL)

main78111-95D00iTCR10,2#;TCR11..RHD;TCR11..LHD..MTM199005-199009

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-28030iTCR1#..RHD..ATM199408-199912

W(CRUISE CONTROL)

main78150-95D02iTCR1#,2#..LHD..MTM199005-199009

main78150-95D03iTCR1#,2#..RHD199005-199912

78173ARM, ACCELERATOR LINK, NO.1

main78173-95D01iTCR1#..RHD199308-199912

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-28010iTCR10,2#;TCR11..RHD;TCR11..LHD..MTM199005-199009

TYPE A

main78183-28030iTCR1#,2#..RHD199005-199912

TYPE C

main78183-28110iTCR11..RHD..ATM199308-199408

W(CRUISE CONTROL),TYPE E

main78183-95D01iTCR10,2#;TCR11..RHD;TCR11..LHD..MTM199005-199009

TYPE B

main78183-95D02iTCR1#,2#..RHD..MTM199005-199912

TYPE D

9017908117

main90179-08117

9017908146

main90179-08146

9025404034

main90254-04034

9046400452

main90464-00452

9046806009

main90468-06009

9054105006

main90541-05006

9165140814

main91651-40814

9165140816

main91651-40816

14 parts on this diagram · 3 diagrams in section
