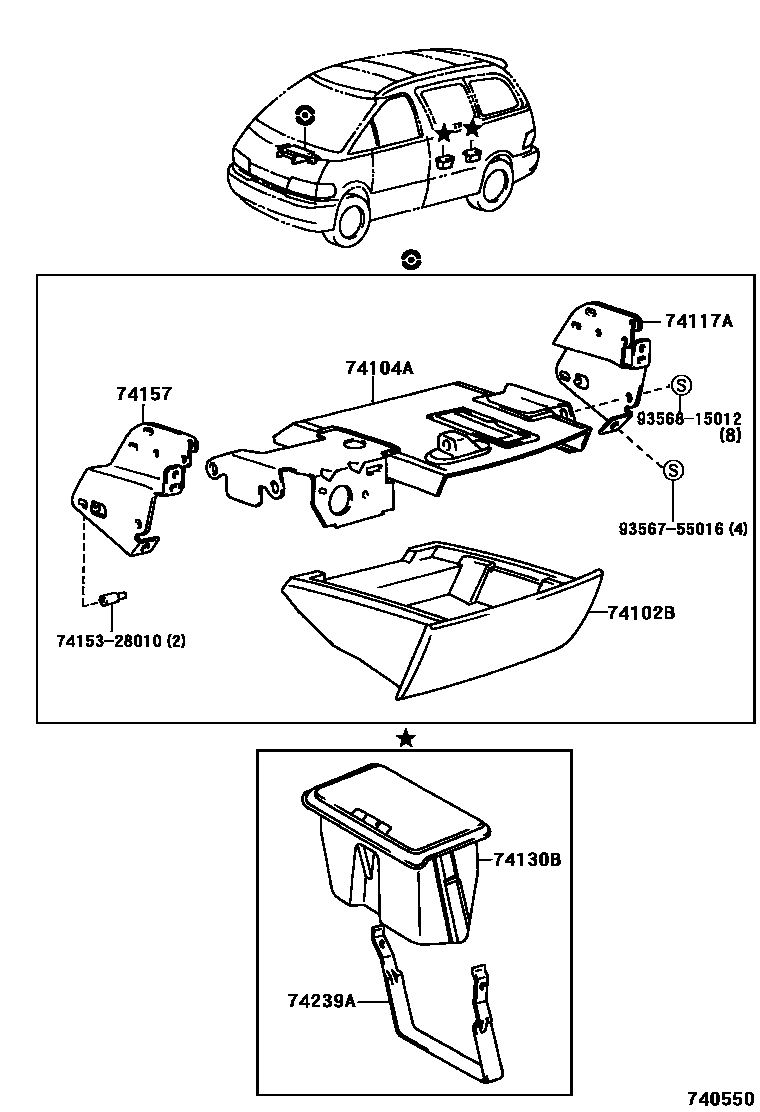

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95D00-03iTCR1#,2#199005-199308

GRAY,TRIM1#

sub74102-95D00

main74102-95D00-05iTCR11,21199005-199308

GREIGE,TRIM4#

sub74102-95D00

main74102-95D00-17iTCR1#,2#199308-199912

GRAY,TRIM1#

sub74102-95D00

main74102-95D00-44iTCR1#..GL..(ARL,GEN)199308-199801

GREIGE,TRIM4#

sub74102-95D00

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95D02iTCR1#,2#199005-199912

74117ABRACKET, FRONT ASH RECEPTACLE MOUNTING, RH

main74117-95D00iTCR1#,2#199005-199912

74130BRECEPTACLE ASSY, REAR ASH

main74130-95D00-03iTCR1#,2#199005-199308

GRAY,TRIM1#

sub74130-95D00

main74130-95D00-05iTCR11,21199005-199308

GREIGE,TRIM4#

sub74130-95D00

main74130-95D00-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

sub74130-95D00

main74130-95D00-E2iTCR1#,21..GL199308-199801

GREIGE,TRIM4#

sub74130-95D00

74157BRACKET, FRONT ASH RECEPTACLE MOUNTING, LH

main74157-95D00iTCR1#,2#199005-199912

74239AHOLDER, REAR ASH RECEPTACLE

main74239-95D00iTCR1#,2#199005-199912

7415328010

main74153-28010

9356755016

main93567-55016

9356815012

main93568-15012

9 parts on this diagram · 1 diagram in section
