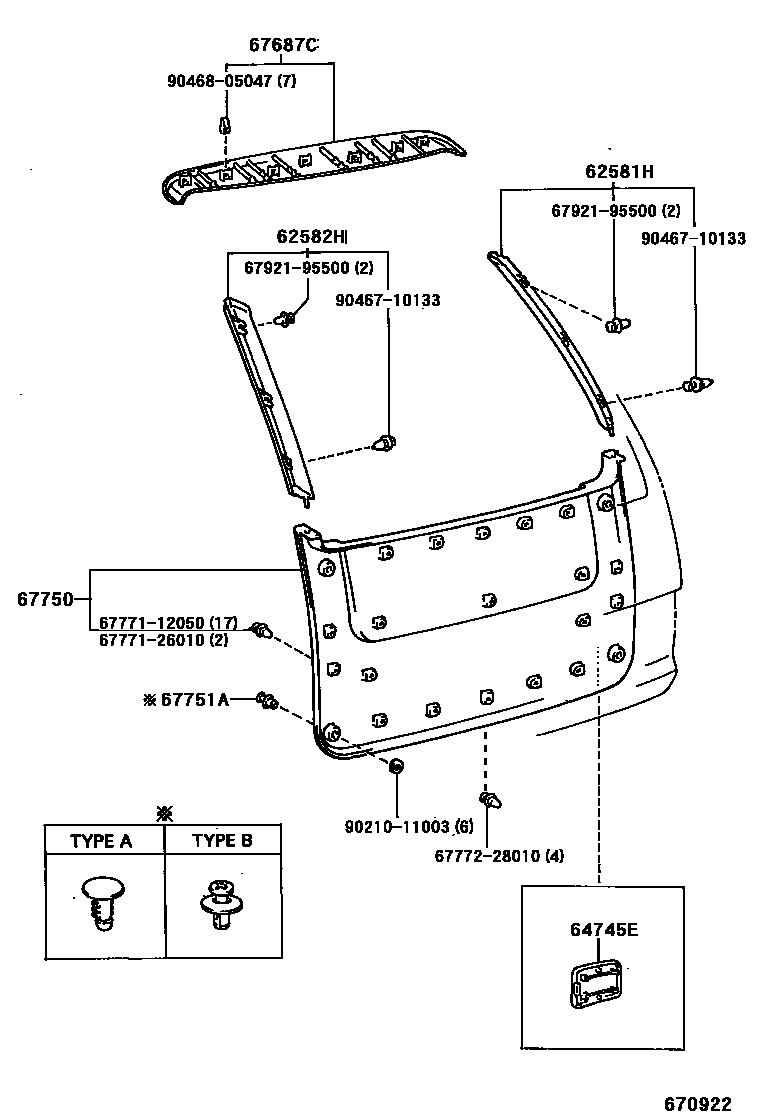

BACK DOOR PANEL & GLASS

0001 1 0002 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-95D00-03iTCR10,2#;TCR11..ATM;TCR11..LHD..MTM;TCR11..MTM..ARL199005-199308

W(REAR WINDOW DEFOGGER),LIGHT GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-03iTCR1#,21;TCR20..W199005-199108

W(*RWD),LIGHT GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-03iTCR11..RHD..MTM..W199005-199308

LIGHT GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-05iTCR11..RHD..MTM;TCR11,21..ATM..ARL199005-199308

LIGHT GREIGE,TRIM4#

sub62581-95D00

sub62581-95D02

main62581-95D00-05iTCR11..ATM..W;TCR11,21..LHD..MTM199005-199308

W(REAR WINDOW DEFOGGER),LIGHT GREIGE,TRIM4#

sub62581-95D00

sub62581-95D02

main62581-95D00-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-L1iTCR1#,21..GL199308-199801

GREIGE,TRIM4#

sub62581-95D00

sub62581-95D02

main62581-95D01-03iTCR10,20199005-199108

LIGHT GRAY,TRIM1#

sub62581-95D02

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-95D00-03iTCR1#,21;TCR20..W199005-199308

W(REAR WINDOW DEFOGGER),LIGHT GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-03iTCR1#,21;TCR20..W199005-199108

W(*RWD),LIGHT GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-03iTCR11..RHD..MTM..W199005-199308

LIGHT GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub62582-95D00

sub62582-28010

main62582-95D00-05iTCR11..ATM..W;TCR11,21..LHD..MTM199005-199308

W(REAR WINDOW DEFOGGER),LIGHT GREIGE,TRIM4#

sub62582-95D00

sub62582-28010

main62582-95D00-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-L1iTCR1#..GL..(ARL,GEN)199308-199801

GREIGE,TRIM4#

sub62582-95D00

sub62582-28010

main62582-95D01-03iTCR10,20199005-199108

LIGHT GRAY,TRIM1#

sub62582-95D01

sub62582-95D00

64745ECOVER, REAR COMBINATION LAMP SERVICE

main64745-95D00-03iTCR11,21..LHD199005-199308

LIGHT GRAY,TRIM1#

sub64745-95D00

main64745-95D00-05iTCR11,21..LHD199005-199308

LIGHT GREIGE,TRIM4#

sub64745-95D00

main64745-95D00-B0iTCR1#..LHD..W199308-199912

GRAY,TRIM1#

sub64745-95D00

main64745-95D00-E2iTCR11..LHD199308-199608

GREIGE,TRIM4#

sub64745-95D00

67687CGARNISH, BACK WINDOW

main67687-95D00-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub67687-95D00

main67687-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub67687-95D00

main67687-95D00-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub67687-95D00

main67687-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub67687-95D00

main67687-95D00-L1iTCR1#..GL..(ARL,GEN)199308-199801

GREIGE,TRIM4#

sub67687-95D00

67750BOARD ASSY, BACK DOOR TRIM

main67750-28030-B0iTCR10..ARL,GEN,V199308-199912

GRAY,TRIM1#

main67750-28030-E0iTCR10..GEN199308-199801

GREIGE,TRIM4#

main67750-28040-B0iTCR10..ARL199408-199912

W(*80,DRIVER SIDE),GRAY,TRIM1#

sub67750-28040

main67750-28040-B0iTCR11..ARL199308-199912

GRAY,TRIM1#

sub67750-28040

main67750-28040-E0iTCR11,21199308-199801

GREIGE,TRIM4#

sub67750-28040

main67750-28050-B0iTCR1#..LHD..W199308-199608

*FRG,GRAY,TRIM1#

main67750-28050-E0iTCR11..LHD199308-199608

*FRG,GREIGE,TRIM4#

main67750-28051-B0iTCR1#..LHD..W199608-199912

*FRG,BLUISH GRAY,TRIM1#

main67750-95D01-03iTCR1#,2#..ARL199005-199308

GRAY,TRIM1#

sub67750-28030

sub67761-28010

main67750-95D01-05iTCR11,21..ARL199005-199308

GREIGE,TRIM4#

sub67750-28030

sub67761-28010

main67750-95D04-03iTCR1#,2#..W199005-199308

GRAY,TRIM1#

sub67750-28040

sub67761-28010

main67750-95D04-05iTCR11,21..W199005-199308

GREIGE,TRIM4#

sub67750-28040

sub67761-28010

main67750-95D05-03iTCR11,21..LHD199005-199308

*FRG,LIGHT GRAY,TRIM1#

sub67750-28050

sub67761-28010

main67750-95D05-05iTCR11,21..LHD199005-199308

*FRG,LIGHT GREIGE,TRIM4#

sub67750-28050

sub67761-28010

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08144-03iTCR1#,2#199005-199111

LIGHT GRAY,TRIM1#,TYPE B

sub90467-08144

main90467-08144-05iTCR11,21199005-199111

LIGHT GREIGE,TRIM4#,TYPE B

sub90467-08144

main90467-08157-B0iTCR1#,2#199111-199912

GRAY,TRIM1#

sub90467-08157

main90467-08157-E1iTCR1#,21..GL199111-199801

GREIGE,TRIM4#

sub90467-08157

main90467-10034-23iTCR1#,2#199005-199111

GRAY,TRIM1#,TYPE A

sub90467-10034

main90467-10034-35iTCR11,21199005-199111

GREIGE,TRIM4#,TYPE A

sub90467-10034

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777126010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26010

6777228010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-28010

6792195500RETAINER, FRONT DOOR SCUFF PLATE

main67921-95500

9021011003

main90210-11003

9046710133

main90467-10133

9046805047

main90468-05047

13 parts on this diagram · 2 diagrams in section
