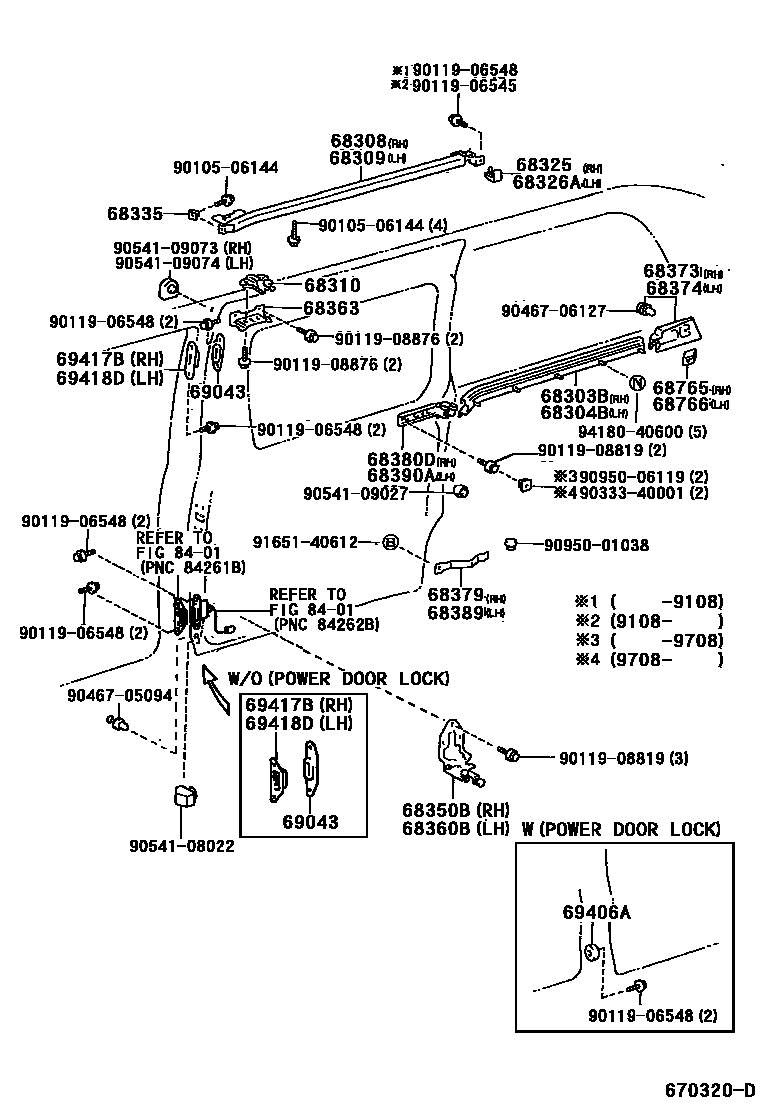

SLIDE ROLLER & RAIL

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-28020iTCR10,20..W199005-199912

main68303-95D00iTCR11,21..LHD;TCR10..LHD..ATM199005-199912

W(BLACK PAINTED)

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28020iTCR10,20..ARL199005-199912

main68304-95D00iTCR11,21..RHD199005-199912

W(BLACK PAINTED)

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-95D00iTCR1#,2#..LHD199005-199912

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-95D00iTCR1#,2#..RHD199005-199912

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68301-95D00iTCR1#,2#199005-199912

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-95D00iTCR1#,2#..LHD199005-199912

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-95D00iTCR1#,2#..RHD199005-199912

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iTCR1#,2#199005-199912

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-95D00iTCR1#,2#..LHD199005-199912

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-95D00iTCR1#,2#..RHD199005-199912

68363BRACKET, SLIDE DOOR UPPER ROLLER

main68363-28010iTCR1#,2#..LHD199410-199912

main68363-95D00iTCR1#,2#199005-199410

sub68363-28010

sub68364-28010

main68364-28010iTCR1#..RHD199410-199912

68373MOULDING, SLIDE RAIL END, RH

main68373-28020iTCR10,20..W199005-199912

main68373-95D00iTCR11,21..LHD;TCR10..LHD..ATM199005-199912

W(BLACK PAINTED)

68374MOULDING, SLIDE RAIL END, LH

main68374-28020iTCR10,20..ARL199005-199912

main68374-95D00iTCR10,20..ARL199005-199912

W(BLACK PAINTED)

68379SPRING, SLIDE DOOR CATCH, RH

main68379-28020iTCR1#,2#..LHD199312-199912

main68379-95D00iTCR1#,2#..LHD199005-199312

sub68379-28020

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-95D00iTCR1#,2#..LHD199005-199912

68389SPRING, SLIDE DOOR CATCH, LH

main68389-28020iTCR1#..RHD199312-199912

main68389-95D00iTCR1#,2#..RHD199005-199312

sub68389-28020

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-95D00iTCR1#,2#..RHD199005-199912

68765BRACKET, SLIDE DOOR RAIL END MOULDING, RH

main68765-28010iTCR1#,2#..LHD199005-199912

68766BRACKET, SLIDE DOOR RAIL END MOULDING, LH

main68766-28010iTCR1#,2#..RHD199005-199912

69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE

main69043-95D00iTCR10,20199005-199108

W(*EL)

main69043-95D00iTCR1#,2#199108-199912

69406ASTOP SUB-ASSY, SLIDE DOOR DOWN MALE

main69417-95D01iTCR1#,2#199005-199912

69417BSTOPPER, SLIDE DOOR DOWN MALE, LOWER RH

main69416-95D00iTCR1#,2#..LHD199005-199308

W(POWER DOOR LOCK)

main69416-95D00iTCR1#,2#..LHD199308-199912

main69416-95D00iTCR10,20..W199005-199108

UPPER

main69417-95D00iTCR10,20..W199005-199108

LOWER

69418DSTOPPER, SLIDE DOOR DOWN MALE, LOWER LH

main69416-95D00iTCR1#,21..RHD199108-199308

W(POWER DOOR LOCK)

main69416-95D00iTCR1#..RHD199308-199912

main69416-95D00iTCR10,20..ARL199005-199108

UPPER

main69418-95D00iTCR10,20..ARL199005-199108

LOWER

8401

9010506144

main90105-06144

9011906545

main90119-06545

9011906548

main90119-06548

9011908819

main90119-08819

9011908876

main90119-08876

9033340001

main90333-40001

9046705094

main90467-05094

9046706127

main90467-06127

9054108022

main90541-08022

9054109027

main90541-09027

9054109073

main90541-09073

9054109074

main90541-09074

9095001038

main90950-01038

9095006119

main90950-06119

9165140612

main91651-40612

9418040600

main94180-40600

40 parts on this diagram · 1 diagram in section
