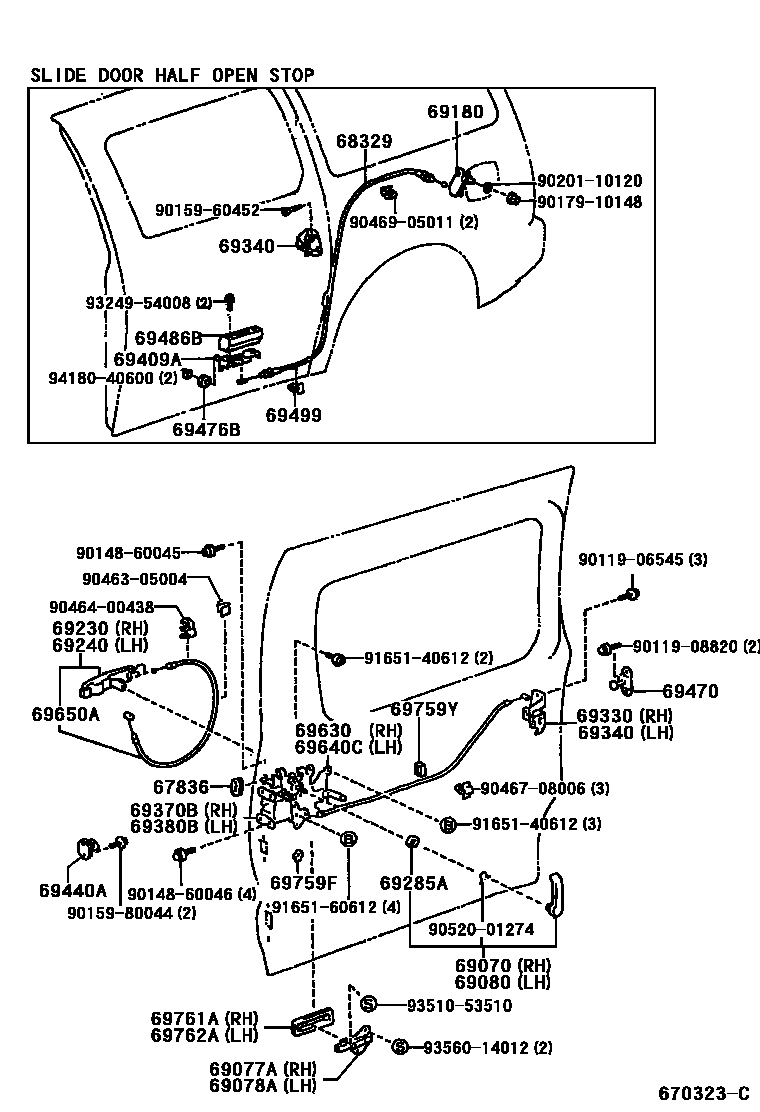

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-95D00iTCR1#,2#199005-199912

68329CABLE, SLIDE DOOR HALF OPEN STOPPER

main68329-28010iTCR1#,2#..RHD199005-199912

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-95D00-03iTCR1#,2#..LHD199005-199308

GRAY,TRIM1#

sub69070-95D00

main69070-95D00-06iTCR11,21..LHD199005-199308

LIGHT GREIGE,TRIM4#

sub69070-95D00

main69070-95D00-B0iTCR1#,2#..LHD199308-199801

GRAY,TRIM1#

sub69070-95D00

main69070-95D00-B8iTCR1#,2#..LHD199801-199912

BLUISH GRAY,TRIM1#

sub69070-95D00

main69070-95D00-E2iTCR10..GEN199308-199801

GREIGE,TRIM4#

sub69070-95D00

69077AKNOB SUB-ASSY, DOOR LOCK CONTROL, RH

main69077-95D00-03iTCR1#,2#..LHD199005-199308

LIGHT GRAY,TRIM1#

sub69077-95D00

main69077-95D00-05iTCR11,21..LHD199005-199308

LIGHT GREIGE,TRIM4#

sub69077-95D00

main69077-95D00-B0iTCR1#,2#..LHD199308-199912

LIGHT GRAY,TRIM1#

sub69077-95D00

main69077-95D00-E2iTCR1#,21..LHD..GL199308-199801

LIGHT GREIGE,TRIM4#

sub69077-95D00

69078AKNOB SUB-ASSY, DOOR LOCK CONTROL, LH

main69078-95D00-03iTCR1#,2#..RHD199005-199308

LIGHT GRAY,TRIM1#

sub69078-95D00

main69078-95D00-05iTCR11,21..RHD199005-199308

GREIGE,TRIM4#

sub69078-95D00

main69078-95D00-B0iTCR1#..RHD199308-199912

LIGHT GRAY,TRIM1#

sub69078-95D00

main69078-95D00-E2iTCR11..ARL199308-199801

LIGHT GREIGE,TRIM4#

sub69078-95D00

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69070-95D00-03iTCR1#,2#..RHD199005-199308

GRAY,TRIM1#

sub69070-95D00

main69070-95D00-06iTCR11,21..RHD199005-199308

LIGHT GREIGE,TRIM4#

sub69070-95D00

main69070-95D00-B0iTCR1#..RHD199308-199801

GRAY,TRIM1#

sub69070-95D00

main69070-95D00-B8iTCR1#..RHD199801-199912

BLUISH GRAY,TRIM1#

sub69070-95D00

main69070-95D00-E2iTCR11..RHD199308-199801

GREIGE,TRIM4#

sub69070-95D00

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-28010iTCR1#,2#..RHD199005-199912

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-95D00iTCR1#,2#..LHD199005-199912

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69230-95D00iTCR1#,2#..RHD199005-199912

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08iTCR11..W;TCR10,2#..ARL,V,W199005-199912

NATURAL WHITE,TRIM1#

sub69285-22010

main69285-22010-08iTCR11..W;TCR10,2#..ARL,V,W199005-199801

NATURAL WHITE,TRIM1#,4#

sub69285-22010

69330LOCK ASSY, REAR DOOR, RH

main69330-95D00iTCR1#,2#..LHD199005-199912

69340LOCK ASSY, REAR DOOR, LH

main69340-95D00iTCR1#,2#..RHD199005-199912

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-95D00iTCR1#,2#..LHD199005-199912

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-95D00iTCR1#,2#..RHD199005-199912

69409ASTOPPER SUB-ASSY, SLIDE DOOR HALF OPEN

main69409-28010iTCR1#,2#..RHD199005-199912

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-95D00iTCR1#,2#199005-199912

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95D00iTCR1#,2#199005-199912

sub69470-46010

69476BPLATE, SLIDE DOOR HALF OPEN STOPPER

main69476-28010iTCR1#,2#..RHD199005-199912

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-28010iTCR1#,2#..RHD199005-199912

69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE

main69499-28010iTCR1#,2#..RHD199005-199912

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95D00iTCR10,20..W199005-199108

main69630-95D01iTCR11,21..LHD199005-199108

W(*EL)

main69630-95D01iTCR1#,2#..LHD..(V,W)199108-199912

main69630-95D02iTCR21..W;TCR11..LHD..ATM199005-199308

W(SECURITY SYSTEM) OR W(*EL)

main69630-95D02iTCR11..LHD..MTM199005-199608

W(SECURITY SYSTEM)

main69630-95D02iTCR10..GEN199308-199912

main69630-95D04iTCR1#..LHD..W199005-199912

*FRG

main69630-95D05iTCR11,21..LHD199005-199108

W(SECURITY SYSTEM) & *FRG

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-95D00iTCR10,20..ARL199005-199108

main69640-95D01iTCR1#..RHD199108-199912

main69640-95D01iTCR11,21..RHD199005-199108

W(*EL)

main69640-95D02iTCR11..RHD..W199005-199108

W(*EL) OR W(SECURITY SYSTEM)

main69640-95D02iTCR11..RHD..W199108-199608

69650ACABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-95D00iTCR1#,2#199005-199912

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20100iTCR1#,2#..LHD199005-199912

main69759-20110iTCR1#,2#..RHD199005-199912

69759YSILENCER, REAR DOOR LOCK LINK

main69759-95500iTCR1#,21..RHD199005-199207

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-95D00-03iTCR1#,2#..LHD199005-199308

LIGHT GRAY,TRIM1#

sub69761-95D00

main69761-95D00-05iTCR11,21..LHD199005-199308

LIGHT GREIGE,TRIM4#

sub69761-95D00

main69761-95D00-B0iTCR1#,2#..LHD199308-199912

LIGHT GRAY,TRIM1#

sub69761-95D00

main69761-95D00-E2iTCR1#,21..LHD..GL199308-199801

LIGHT GREIGE,TRIM4#

sub69761-95D00

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-95D00-03iTCR1#,2#..RHD199005-199308

LIGHT GRAY,TRIM1#

sub69762-95D00

main69762-95D00-05iTCR11,21..RHD199005-199308

LIGHT GREIGE,TRIM4#

sub69762-95D00

main69762-95D00-B0iTCR1#..RHD199308-199912

LIGHT GRAY,TRIM1#

sub69762-95D00

main69762-95D00-E2iTCR11..RHD199308-199801

LIGHT GREIGE,TRIM4#

sub69762-95D00

9011906545

main90119-06545

9011908820

main90119-08820

9014860045

main90148-60045

9014860046

main90148-60046

9015960452

main90159-60452

9015980044

main90159-80044

9017910148

main90179-10148

9020110120

main90201-10120

9046305004

main90463-05004

9046400438

main90464-00438

9046708006

main90467-08006

9046905011

main90469-05011

9052001274

main90520-01274

9165140612

main91651-40612

9165160612

main91651-60612

9324954008

main93249-54008

9351053510

main93510-53510

9356014012

main93560-14012

9418040600

main94180-40600

46 parts on this diagram · 1 diagram in section
