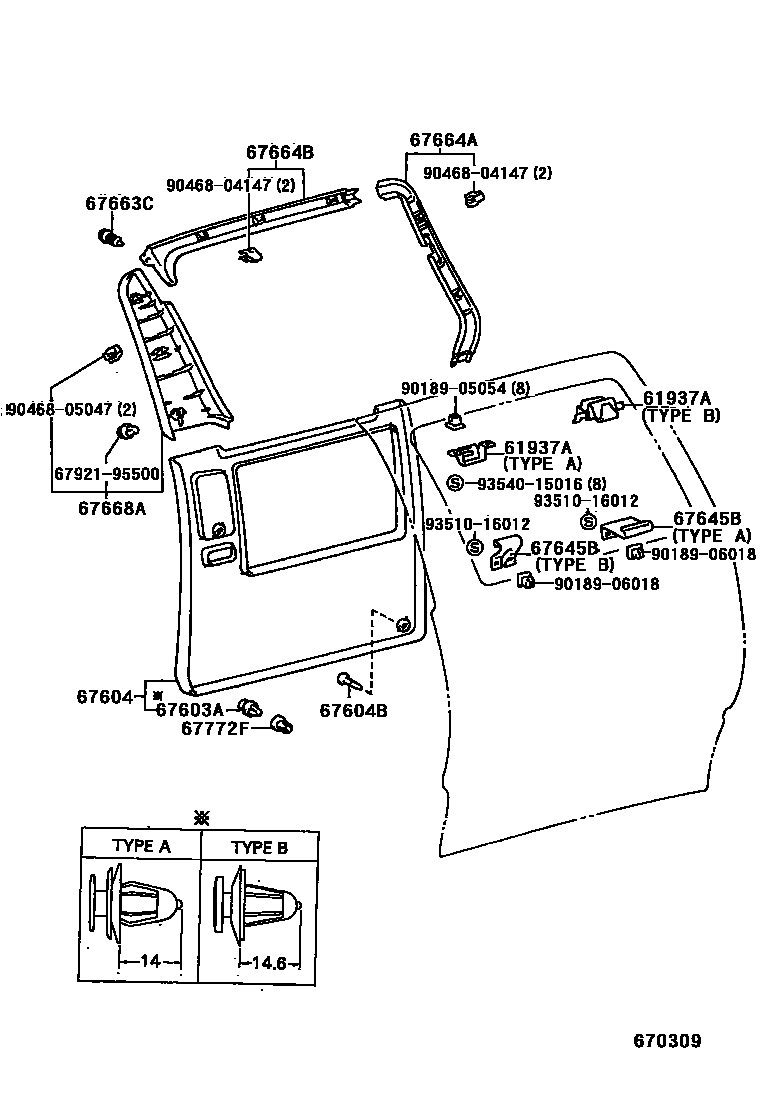

REAR DOOR PANEL & GLASS
61937ABRACKET, SIDE WINDOW GARNISH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
GRAY,TRIM1#
GREIGE,TRIM4#
BLUISH GRAY,TRIM1#
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
MD.GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
TYPE A
TYPE B
TYPE A
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
67604BCLIP(FOR SLIDE DOOR TRIM BOARD)
67645BBRACKET, SLIDE DOOR TRIM BASE
TYPE A
TYPE B
TYPE B
67663CCLIP(FOR DOOR FRAME GARNISH)
67664AGARNISH, DOOR FRAME, LH
67664BGARNISH, DOOR FRAME, UPPER LH
67668AGARNISH, SLIDE DOOR WINDOW, LH
67772FCAP, REAR DOOR TRIM RETAINER
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9018905054
main90189-05054
9018906018
main90189-06018
9046804147
main90468-04147
9046805047
main90468-05047
9351016012
main93510-16012
9354015016
main93540-15016
18 parts on this diagram · 3 diagrams in section
