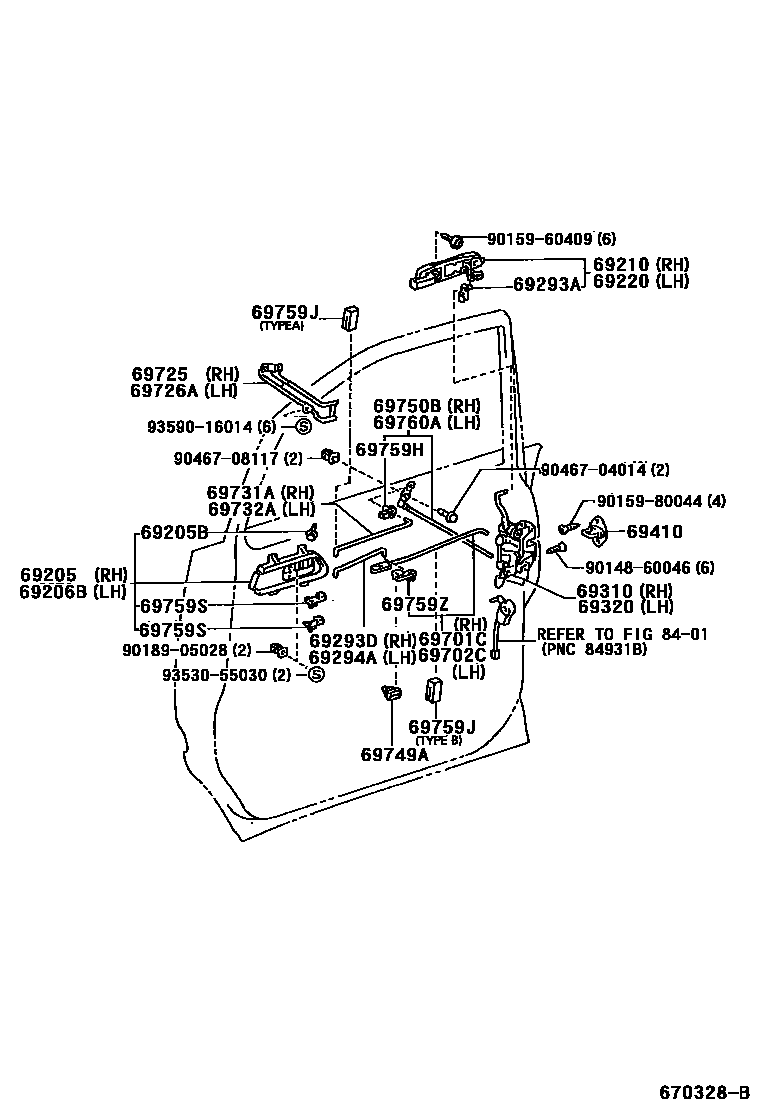

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-28010iTCR1#,2#199308-199912

main69205-28020iTCR11..ARL199810-199912

HONG KONG SPEC

main69205-95D00iTCR1#,2#199005-199308

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iTCR1#,2#199005-199912

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-28010iTCR1#,2#199308-199912

main69206-28020iTCR11..ARL199810-199912

HONG KONG SPEC

main69206-95D00iTCR1#,2#199005-199308

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95D00iTCR1#,2#199005-199912

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95D00iTCR1#,2#199005-199912

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iTCR1#,2#199005-199912

LH

main69293-12060iTCR1#,2#199005-199912

RH

69293DLINK, DOOR INSIDE HANDLE CONNECTING, RH

main69293-95D00iTCR1#,2#199005-199912

69294ALINK, DOOR INSIDE HANDLE CONNECTING, LH

main69294-95D00iTCR1#,2#199005-199912

69310LOCK ASSY, FRONT DOOR, RH

main69030-28010iTCR1#,21..ARL199108-199308

main69030-28011iTCR1#..ARL199308-199408

main69030-28020iTCR1#,2#..LHD199108-199308

main69030-28021iTCR1#,2#..LHD..W199308-199312

main69030-28022iTCR1#,2#..LHD..W199312-199912

main69030-28031iTCR1#..RHD199608-199912

main69030-28070iTCR11..RHD..W199308-199608

main69030-28080iTCR11,21..LHD199308-199608

W(SECURITY SYSTEM)

main69030-28080iTCR10..GEN199308-199912

main69030-28090iTCR11,21..LHD199608-199912

W(KEY LOCK WARNING)

main69030-28090iTCR10..V199408-199912

main69030-95D02iTCR10,20..ARL199005-199108

W(*EL)

main69030-95D03iTCR11,21..LHD199005-199108

W(*EL)

main69030-95D06iTCR11..RHD..W199005-199108

W(SECURITY SYSTEM)

main69030-95D06iTCR11..RHD..W199108-199308

main69030-95D07iTCR11,21..LHD199005-199308

W(SECURITY SYSTEM)

main69310-95D01iTCR10,20199005-199108

69320LOCK ASSY, FRONT DOOR, LH

main69040-28010iTCR1#,21..ARL199108-199308

main69040-28011iTCR1#..ARL199401-199408

main69040-28020iTCR1#,2#..LHD199108-199308

main69040-28021iTCR1#,2#..LHD..W199308-199912

main69040-28080iTCR1#..RHD199308-199608

main69040-28090iTCR11,21..LHD199308-199608

W(SECURITY SYSTEM)

main69040-28090iTCR10..GEN199308-199912

main69040-28100iTCR1#..ARL199308-199401

main69040-28110iTCR10..V199408-199912

main69040-28110iTCR11,21..LHD199608-199912

W(KEY LOCK WARNING)

main69040-28130iTCR1#..RHD199608-199912

main69040-95D02iTCR11,21..RHD199005-199108

W(*EL)

main69040-95D03iTCR10,20..W199005-199108

W(*EL)

main69040-95D07iTCR11..RHD..W199108-199308

main69040-95D07iTCR11..RHD..W199005-199108

W(SECURITY SYSTEM)

main69040-95D08iTCR11,21..LHD199005-199308

W(SECURITY SYSTEM)

main69320-95D02iTCR10,20199005-199108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-95D00iTCR1#,2#199005-199912

sub69410-20070

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95D00iTCR1#,2#199005-199912

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95D00iTCR1#,2#199005-199912

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-95D00iTCR1#,2#199005-199912

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-95D00iTCR1#,2#199005-199912

69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-95D00iTCR1#,2#199005-199912

69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-95D00iTCR1#,2#199005-199912

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010iTCR1#,2#199005-199912

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-95D00iTCR1#,2#199005-199912

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20020iTCR1#,2#199005-199912

LH

main69759-20030iTCR1#,2#199005-199912

RH

69759JSILENCER, DOOR LOCK LINK

main69759-28010iTCR1#,2#199005-199403

main69759-28010iTCR1#,2#199403-199912

TYPE A

main69759-95500iTCR1#,2#199403-199912

TYPE B

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iTCR1#,2#199005-199308

LH-HANDEL

main69759-14050iTCR1#,2#199308-199912

LH-HANDLE

main69759-20060iTCR1#,2#199005-199912

LH-KNOB

main69759-20070iTCR1#,2#199005-199912

RH-KNOB

main69759-24070iTCR1#,2#199005-199912

RH-HANDLE

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-24030iTCR1#,2#199005-199912

LH

main69759-24040iTCR1#,2#199005-199912

RH

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-95D00iTCR1#,2#199005-199912

8401

9014860046

main90148-60046

9015960409

main90159-60409

9015980044

main90159-80044

9018905028

main90189-05028

9046704014

main90467-04014

9046708117

main90467-08117

9353055030

main93530-55030

9359016014

main93590-16014

33 parts on this diagram · 1 diagram in section
