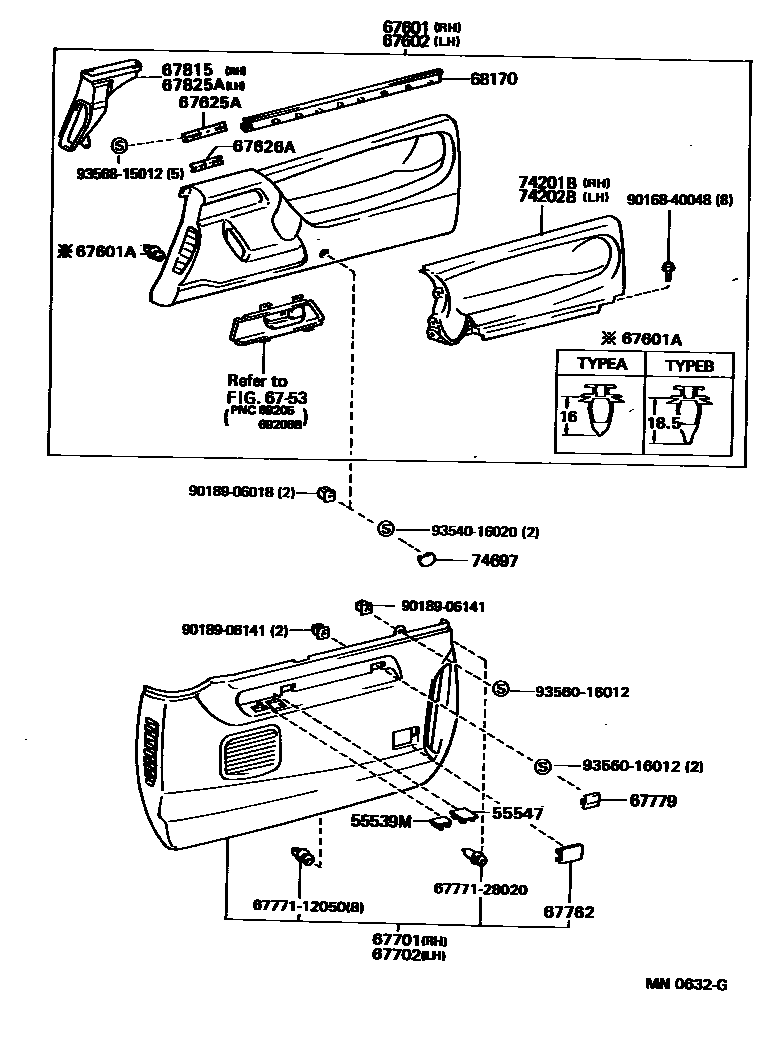

FRONT DOOR PANEL & GLASS

0001 1 0002 1

55539MCOVER, SPARE SWITCH HOLE

main55539-20080-05iTCR11,21199108-199308

GREIGE,TRIM4#

sub55539-12130

main55539-20080-23iTCR10,20..ARL199012-199108

LIGHT GRAY,TRIM1#

sub55539-12130

main55539-20080-B1iTCR1#,2#199308-199407

GRAY,TRIM1#

sub55539-12130

main55539-20080-E2iTCR1#,21..GL199308-199407

GREIGE,TRIM4#

sub55539-12130

main55539-28090-B0iTCR1#,2#199407-199912

GRAY,TRIM1#

main55539-28090-E0iTCR1#,21..GL199407-199608

GREIGE,TRIM4#

main55539-32010-40iTCR10,20..ARL199005-199012

LIGHT GRAY,TRIM1#

sub55539-32030

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-28010-03iTCR1#,21..LHD199005-199012

LIGHY GRAY,TRIM1#

main55547-28010-05iTCR11,21..LHD199005-199012

LIGHT GREIGE,TRIM4#

main55547-28020-03×2iTCR1#,21..LHD199012-199108

GRAY,TRIM1#

main55547-28020-05iTCR11,21..LHD199012-199308

W(*RCM),GREIGE,TRIM4#

main55547-28020-B0iTCR1#,2#199308-199912

W(*RCM),GRAY,TRIM1#

main55547-28020-E2iTCR1#..GL..(ARL,GEN)199608-199912

GREIGE,TRIM4#

6753

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-28151-B1iTCR1#,21..GL199308-199408

GRAY,TRIM1#

main67610-28151-E1iTCR1#,21..GL199308-199408

GREIGE,TRIM4#

main67610-28360-B0iTCR10,20..ARL,W199308-199912

BLUISH GRAY,TRIM1#

main67610-28380-B5iTCR11,21;TCR10..LHD..ATM199408-199608

GRAY,TRIM1#

main67610-28380-E1iTCR1#,21..GL199408-199608

GREIGE,TRIM4#

main67610-28381-B6iTCR10,20..W199808-199912

CORFU PACKAGE (SWITZERLAND) & W(POWER WINDOW),BLUISH GRAY,TRIM11

main67610-28381-E2iTCR1#..GL..(ARL,GEN)199608-199801

MD. GREIGE,TRIM4#

main67610-28390-B0iTCR10,20..ARL,W199308-199912

W(*PW),BLUISH GRAY,TRIM1#

main67610-28390-E0iTCR10..GEN199608-199801

W(*PW),MI. GREIGE,TRIM4#

main67610-28860-B0iTCR10,20..W199808-199912

CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11

main67610-28870-B0iTCR11..ARL199810-199912

HONG KONG SPEC,GRAY,TRIM1#

main67610-95D06-03iTCR10,20199005-199108

W(*PW),LIGHT GRAY,TRIM1#

main67610-95D06-B1iTCR10,20..W199108-199308

W(*PW),LIGHT GRAY,TRIM1#

main67610-95D07-03iTCR10,20199005-199108

LIGHT GRAY,TRIM1#

main67610-95D07-B1iTCR10,20199108-199308

LIGHT GRAY,TRIM1#

main67610-95D08-03iTCR21..ARL;TCR11..MTM..ARL199005-199308

W(*PW),LIGHT GRAY,TRIM1#

main67610-95D08-05iTCR21..ARL;TCR11..MTM..ARL199005-199308

W(POWER WINDOW),LIGHT GREIGE,TRIM4#

main67610-95D09-03iTCR11,21199005-199108

LIGHT GRAY,TRIM1#

main67610-95D09-05iTCR11,21199005-199108

LIGHT GREIGE,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050×8iTCR1#,2#199005-199912

TYPE A

main67771-28030×2iTCR1#,2#199005-199912

TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-28151-B1iTCR1#,21..GL199308-199408

GRAY,TRIM1#

main67620-28151-E1iTCR1#,21..GL199308-199408

GREIGE,TRIM4#

main67620-28360-B0iTCR10,20..ARL,W199308-199912

BLUISH GRAY,TRIM1#

main67620-28380-B5iTCR11,21;TCR10..LHD..ATM199408-199608

GRAY,TRIM1#

main67620-28380-E2iTCR1#,21..GL199408-199608

GREIGE,TRIM4#

main67620-28381-B6iTCR11,21;TCR10..LHD..ATM199608-199912

BLUISH GRAY,TRIM1#

main67620-28381-E3iTCR1#..GL..(ARL,GEN)199608-199801

MD. GREIGE,TRIM4#

main67620-28390-B0iTCR10,20..ARL,W199308-199912

W(*PW),BLUISH GRAY,TRIM1#

main67620-28390-E0iTCR10..GEN199608-199801

W(*PW),MI. GREIGE,TRIM4#

main67620-28860-B0iTCR10,20..W199808-199912

CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11

main67620-28870-B0iTCR11..ARL199810-199912

HONG KONG SPEC,GRAY,TRIM1#

main67620-95D04-03iTCR10,20199005-199108

W(*PW),LIGHT GRAY,TRIM1#

main67620-95D04-B1iTCR10,20..W199108-199308

W(*PW),LIGHT GRAY,TRIM1#

main67620-95D05-03iTCR10,20199005-199108

LIGHT GRAY,TRIM1#

main67620-95D05-B1iTCR10,20199108-199308

LIGHT GRAY,TRIM1#

main67620-95D06-03iTCR21..ARL;TCR11..MTM..ARL199005-199308

W(*PW),LIGHT GRAY,TRIM1#

main67620-95D06-05iTCR21..ARL;TCR11..MTM..ARL199005-199308

W(POWER WINDOW),LIGHT GREIGE,TRIM4#

main67620-95D07-03iTCR11,21199005-199108

LIGHT GRAY,TRIM1#

main67620-95D07-05iTCR11,21199005-199108

LIGHT GREIGE,TRIM4#

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-95D02×2iTCR1#,2#199005-199912

67626ABRACKET, DOOR TRIM, NO.2

main67626-95D00×2iTCR1#,2#199005-199912

67701COVER SUB-ASSY, FRONT DOOR TRIM, RH

main67701-28010-03iTCR11,21..RHD199012-199108

LIGHT GRAY,TRIM1#

main67701-28010-05iTCR11,21..RHD199012-199108

LIGHT GREIGE,TRIM4#

main67701-28090-B0iTCR1#,2#199108-199308

GRAY,TRIM1#

main67701-28090-B1iTCR1#,2#199308-199605

GRAY,TRIM1#

main67701-28090-E1iTCR11,21199108-199308

GREIGE,TRIM4#

main67701-28090-E2iTCR1#,21..GL199308-199605

GREIGE,TRIM4#

main67701-28091-B1iTCR1#,2#199605-199912

BLUISH GRAY,TRIM1#

sub67701-28081

main67701-28091-E2iTCR1#,21..GL199605-199608

MD.GREIGE,TRIM4#

sub67701-28081

main67701-95D00-03iTCR10,20;TCR11,21..LHD199005-199108

LIGHT GRAY,TRIM1#

main67701-95D00-05iTCR11,21..LHD199005-199108

LIGHT GREIGE,TRIM4#

main67701-95D01-03iTCR1#,21..LHD199005-199012

LIGHT GRAY,TRIM1#

main67701-95D01-05iTCR11,21..LHD199005-199012

LIGHT GREIGE,TRIM4#

67702COVER SUB-ASSY, FRONT DOOR TRIM, LH

main67702-28010-03iTCR11,21..LHD199012-199108

LIGHT GRAY,TRIM1#

main67702-28010-05iTCR11,21..LHD199012-199108

LIGHT GREIGE,TRIM4#

main67702-28090-B0iTCR1#,2#199108-199308

GRAY,TRIM1#

main67702-28090-B1iTCR1#,2#199308-199605

GRAY,TRIM1#

main67702-28090-E1iTCR11,21199108-199308

GREIGE,TRIM4#

main67702-28090-E2iTCR1#,21..GL199308-199605

GREIGE,TRIM4#

main67702-28091-B1iTCR1#,2#199605-199912

BLUISH GRAY,TRIM1#

sub67702-28081

main67702-28091-E2iTCR1#..GL..(ARL,GEN)199608-199801

MD.GREIGE,TRIM4#

sub67702-28081

main67702-95D00-03iTCR11,21..LHD199005-199012

LIGHT GRAY,TRIM1#

main67702-95D00-05iTCR11,21..LHD199005-199012

LIGHT GREIGE,TRIM4#

main67702-95D01-03iTCR10,20;TCR11,21..RHD199005-199108

LIGHT GRAY,TRIM1#

main67702-95D01-05iTCR11,21..RHD199005-199108

LIGHT GREIGE,TRIM4#

67762COVER, FRONT DOOR LOWER TRIM

main67762-28010-B0×2iTCR1#,2#199108-199912

GRAY,TRIM1#

main67762-28010-E0×2iTCR1#..GL..(ARL,GEN)199608-199801

GREIGE,TRIM4#

67779CAP, FRONT DOOR TRIM POCKET

main67779-95D00-03×4iTCR1#,2#199005-199308

GRAY,TRIM1#

main67779-95D00-05×4iTCR11,21199005-199308

GREIGE,TRIM4#

main67779-95D00-B0×4iTCR1#,2#199308-199912

GRAY,TRIM1#

main67779-95D00-E2×4iTCR1#..GL..(ARL,GEN)199608-199801

GREIGE,TRIM4#

67815DUCT, DOOR VENTILATION, RH

main67815-95D00iTCR1#,2#199005-199912

67825ADUCT, DOOR VENTILATION, LH

main67825-95D00iTCR1#,2#199005-199912

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95D01iTCR1#,2#199005-199912

RH

main68220-95D01iTCR1#,2#199005-199912

LH

74201BPANEL SUB-ASSY, FRONT ARMREST, UPPER RH

main74201-28041-B1iTCR1#,21..GL199308-199408

GRAY,TRIM1#

main74201-28041-E1iTCR1#,21..GL199308-199408

GREIGE,TRIM4#

main74201-28090-B0iTCR11,21;TCR10..LHD..ATM199608-199912

CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM1#

main74201-28090-E0iTCR1#..GL..(ARL,GEN)199608-199801

CORFU PACKAGE (SWITZERLAND),MD.GREIGE,TRIM4#

main74201-95D00-03iTCR10,20199005-199108

LIGHT GRAY,TRIM1#

main74201-95D00-B0iTCR10,20..ARL,W199108-199705

LIGHT GRAY,TRIM1#

main74201-95D00-E1iTCR10..GEN199608-199801

LIGHT GREIGE,TRIM4#

main74201-95D01-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

main74201-95D01-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

main74201-95D01-B3iTCR11,21;TCR10..LHD..ATM199408-199608

GRAY,TRIM1#

main74201-95D01-E3iTCR1#,21..GL199408-199608

GREGE,TRIM4#

74202BPANEL SUB-ASSY, FRONT ARMREST, UPPER LH

main74202-28041-B1iTCR1#,21..GL199308-199408

GRAY,TRIM1#

main74202-28041-E1iTCR1#,21..GL199308-199408

GREIGE,TRIM4#

main74202-28090-B0iTCR10,20..W199808-199912

CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11

main74202-28090-E0iTCR1#..GL..(ARL,GEN)199608-199801

CORFU PACKAGE (SWITZERLAND),MD.GREIGE,TRIM4#

main74202-95D00-03iTCR10,20199005-199108

LIGHT GRAY,TRIM1#

main74202-95D00-B0iTCR10,20..ARL,GEN,W199705-199912

LIGHT GRAY,TRIM1#

main74202-95D00-E1iTCR10..GEN199608-199801

LIGHT GREIGE,TRIM4#

main74202-95D01-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

main74202-95D01-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

main74202-95D01-B3iTCR11,21;TCR10..LHD..ATM199408-199608

GRAY,TRIM1#

main74202-95D01-E3iTCR1#,21..GL199408-199608

GREGE,TRIM4#

74697PLUG, DOOR ASSIST GRIP, RH

main74697-28020-B0×2iTCR1#,2#199401-199912

GRAY,TRIM1#

main74697-28020-E0×2iTCR1#,21..GL199401-199608

GREIGE,TRIM4#

main74697-95D00-03×2iTCR1#,2#199005-199308

GRAY,TRIM1#

main74697-95D00-05×2iTCR11,21199005-199308

GREIGE,TRIM4#

main74697-95D00-B0×2iTCR1#,2#199308-199401

GRAY,TRIM1#

main74697-95D00-E1×2iTCR1#,21..GL199308-199401

GREIGE,TRIM4#

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777128020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28020

9016840048

main90168-40048

9018906018

main90189-06018

9018906141

main90189-06141

9354016020

main93540-16020

9356016012

main93560-16012

9356815012

main93568-15012

26 parts on this diagram · 2 diagrams in section
