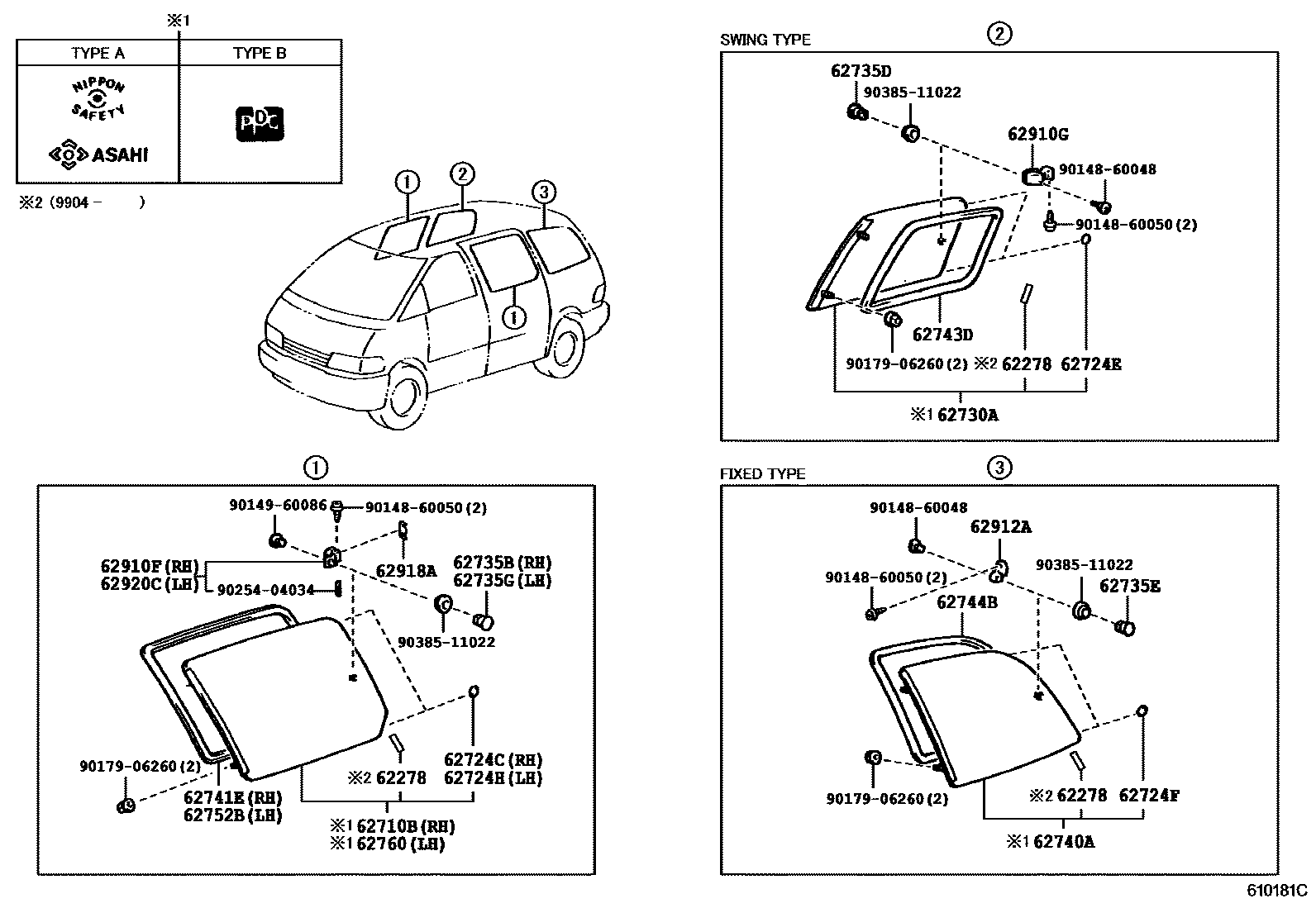

SIDE WINDOW

0001 1 0002 1

62278PROTECTOR, SIDE WINDOW

main62278-28050iTCR1#,2#199904-199912

62710BWINDOW ASSY, SIDE, FRONT RH

main62071-28010iTCR10,20..ARL;TCR11..RHD..W199005-199108

*TEM,T=4.0

main62071-28020iTCR1#,2#..RHD199005-199112

*TT,T=4.0,BLUE

sub62071-28021

main62071-28021iTCR1#,21..RHD199112-199511

*TT,T=4.0,BLUE

sub62071-28022

main62071-28022iTCR11..RHD..W199511-199801

*TT,T=4.0,BLUE

main62071-28030iTCR11,21..RHD199005-199112

*TT,T=4.0,BRONZE

sub62071-28031

main62071-28031iTCR11,21..RHD199112-199511

*TT,T=4.0,BRONZE

sub62071-28032

main62071-28032iTCR1#..ARL199511-199801

*TT,T=4.0,BRONZE

main62071-28032iTCR1#..RHD199801-199912

*TT,T=4.0,BRONZE,TYPE A:REFER TO ILLUSTRATION

main62071-28040iTCR11,21..RHD199005-199112

*TT,T=4.0,GRAY

sub62071-28041

main62071-28041iTCR11,21..RHD199112-199308

*TT,T=4.0,GRAY

main62071-28241iTCR1#..RHD199708-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

main68103-28010iTCR1#,2#..LHD199005-199112

*TT,T=4.0,BLUE

sub68103-28011

main68103-28011iTCR1#,2#..LHD..(V,W)199112-199511

*TT,T=4.0,BLUE

sub68103-28012

main68103-28012iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,BLUE

main68103-28020iTCR1#,2#..LHD199005-199108

*TEM,T=4.0

main68103-28030iTCR1#,2#..LHD199005-199112

*TT,T=4.0,BRONZE

sub68103-28031

main68103-28031iTCR1#,21..LHD..GL199112-199511

*TT,T=4.0,BRONZE

sub68103-28032

main68103-28032iTCR10..GEN199511-199912

*TT,T=4.0,BRONZE

main68103-28040iTCR1#,2#..LHD199005-199112

*TT,T=4.0,GRAY

sub68103-28041

main68103-28041iTCR1#,2#..LHD199112-199308

*TT,T=4.0,GRAY

sub68103-28042

main68103-28051iTCR10..V199408-199511

*SERT,T=4.0,BRONZE

sub68103-28052

main68103-28052iTCR10..V199511-199801

*SERT,T=4.0,BRONZE

main68103-28090iTCR1#,2#..LHD..(V,W)199308-199511

*TT,T=4.0,GREEN

sub68103-28091

main68103-28091iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,GREEN

main68103-28100iTCR1#,2#..LHD..(V,W)199801-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

62724CSTOP, SIDE FRONT WINDOW GLASS, RH

main62724-28020iTCR1#..RHD199608-199912

main62724-95D00iTCR1#,2#..LHD199005-199608

62724ESTOP, SIDE REAR WINDOW GLASS, RH

main62724-95D00iTCR1#,2#199005-199112

LOWER

main62724-95D01iTCR1#..ARL199112-199912

main62724-95D01iTCR1#,2#199005-199112

UPPER

62724FSTOP, SIDE REAR WINDOW GLASS, LH

main62724-95D00iTCR1#,2#199005-199112

LOWER

main62724-95D01iTCR1#,2#..ARL,V,W199112-199912

main62724-95D01iTCR1#,2#199005-199112

UPPER

62724HSTOP, SLIDE DOOR WINDOW GLASS, LH

main62724-28020iTCR1#..ARL199608-199912

main62724-95D00iTCR1#,2#..RHD199005-199912

62730AWINDOW ASSY, SIDE, REAR RH

main62073-28010iTCR1#,2#..LHD..(V,W)199005-199511

*TT,T=4.0,BLUE

sub62073-28011

main62073-28011iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,BLUE

main62073-28020iTCR10,20..ARL;TCR11..RHD..W199005-199108

*TEM,T=4.0

main62073-28030iTCR1#,2#..LHD199005-199108

*TT,T=4.0

main62073-28040iTCR1#,2#..RHD199005-199112

*TT,T=4.0,BLUE

sub62073-28041

main62073-28041iTCR1#,21..RHD199112-199511

*TT,T=4.0,BLUE

sub62073-28042

main62073-28042iTCR11..RHD..W199511-199801

*TT,T=4.0,BLUE

main62073-28050iTCR1#,2#..LHD199005-199511

*TT,T=4.0,BRONZE

sub62073-28051

main62073-28051iTCR1#,2#..LHD..(V,W)199511-199912

*TT,T=4.0,BRONZE

main62073-28060iTCR1#,2#..LHD199005-199308

*TT,T=4.0,GRAY

sub62073-28061

main62073-28070iTCR11,21..RHD199005-199112

*TT,T=4.0,BRONZE

sub62073-28071

main62073-28071iTCR11,21..RHD199112-199511

*TT,T=4.0,BRONZE

sub62073-28072

main62073-28072iTCR1#..ARL199511-199801

*TT,T=4.0,BRONZE

main62073-28072iTCR1#..RHD199801-199912

*TT,T=4.0,BRONZE,TYPE A:REFER TO ILLUSTRATION

main62073-28080iTCR11,21..RHD199005-199112

*TT,T=4.0,GRAY

sub62073-28081

main62073-28081iTCR11,21..RHD199112-199308

*TT,T=4.0,GRAY

main62073-28090iTCR10..V199408-199511

*SERT,T=4.0,BRONZE

sub62073-28091

main62073-28091iTCR10..V199511-199801

*SERT,T=4.0,BRONZE

main62073-28330iTCR1#,2#..LHD..(V,W)199308-199511

*TT,T=4.0,GREEN

sub62073-28331

main62073-28331iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,GREEN

sub62073-28600

main62073-28441iTCR1#..ARL199708-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

main62073-28570iTCR1#,2#..LHD..(V,W)199801-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

62735BRETAINER, SIDE FRONT WINDOW HINGE, RH

main62735-28040iTCR1#..RHD199608-199912

main62735-95D00iTCR1#,2#..RHD199005-199608

62735DRETAINER, SIDE REAR WINDOW HINGE, RH

main62735-28040iTCR1#,2#..ARL,V,W199608-199912

main62735-95D00iTCR1#,2#199005-199608

62735ERETAINER, SIDE REAR WINDOW HINGE, LH

main62735-28040iTCR1#..ARL199608-199912

main62735-95D00iTCR1#,2#199005-199608

62735GRETAINER, SLIDE DOOR WINDOW HINGE, LH

main62735-28040iTCR1#..RHD199608-199912

main62735-95D00iTCR1#,2#..RHD199005-199608

62740AWINDOW ASSY, SIDE, REAR LH

main62074-28010iTCR11..LHD..MTM199112-199401

*TT,T=4.0,BLUE,W/O(REAR SEAT)

sub62074-28011

main62074-28010iTCR1#,2#..LHD199005-199112

*TT,T=4.0,BLUE

sub62074-28011

main62074-28011iTCR1#,2#..LHD..(V,W)199112-199511

*TT,T=4.0,BLUE

sub62074-28012

main62074-28012iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,BLUE

main62074-28020iTCR10,20..ARL;TCR11..RHD..W199005-199108

*TEM,T=4.0

main62074-28030iTCR1#,2#..LHD199005-199108

*TEM,T=4.0

main62074-28040iTCR1#,2#..RHD199005-199511

*TT,T=4.0,BLUE

sub62074-28041

main62074-28041iTCR11..RHD..W199511-199801

*TT,T=4.0,BLUE

main62074-28070iTCR11..LHD..MTM199112-199401

*TT,T=4.0,BRONZE,W/O(REAR SEAT)

sub62074-28071

main62074-28070iTCR1#,2#..LHD199005-199112

*TT,T=4.0,BRONZE

sub62074-28071

main62074-28071iTCR1#,21..LHD..GL199112-199511

*TT,T=4.0,BRONZE

sub62074-28072

main62074-28072iTCR10..GEN199511-199912

*TT,T=4.0,BRONZE

main62074-28080iTCR11..LHD..MTM199112-199202

*TT,T=4.0,GRAY,W/O(REAR SEAT)

sub62074-28081

main62074-28080iTCR1#,2#..LHD199005-199112

*TT,T=4.0,GRAY

sub62074-28081

main62074-28081iTCR1#,2#..LHD199112-199308

*TT,T=4.0,GRAY

sub62074-28082

main62074-28090iTCR11,21..RHD199005-199511

*TT,T=4.0,BRONZE

sub62074-28091

main62074-28091iTCR1#..RHD199801-199912

*TT,T=4.0,BRONZE,TYPE A:REFER TO ILLUSTRATION

main62074-28091iTCR11..RHD199511-199801

*TT,T=4.0,BRONZE

main62074-28100iTCR11,21..RHD199005-199308

*TT,T=4.0,GRAY

main62074-28111iTCR10..V199408-199511

*SERT,T=4.0,BRONZE

sub62074-28112

main62074-28112iTCR10..V199511-199801

*SERT,T=4.0,BRONZE

main62074-28280iTCR1#,2#..LHD199308-199401

*TT,T=4.0,GREEN

sub62074-28290

main62074-28290iTCR1#,2#..LHD..(V,W)199401-199511

*TT,T=4.0,GREEN

sub62074-28291

main62074-28291iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,GREEN

main62074-28371iTCR1#..RHD199708-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

main62074-28480iTCR1#,2#..LHD..(V,W)199801-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

main62074-28510iTCR11..LHD..MTM199801-199904

*TT,T=4.0,BRONZE

62741EWEATHERSTRIP, SIDE FRONT WINDOW, RH

main62741-95D00iTCR10..ARL;TCR11..RHD..W199005-199912

main62751-95D00iTCR1#,2#..LHD199005-199912

62743DWEATHERSTRIP, SIDE REAR WINDOW, RH

main62743-95D00iTCR1#,2#199005-199912

62744BWEATHERSTRIP, SIDE REAR WINDOW, LH

main62744-95D00iTCR1#,2#199005-199912

62752BWEATHERSTRIP, SLIDE DOOR WINDOW, LH

main62742-95D00iTCR1#,2#..LHD199005-199912

main62752-95D00iTCR1#..RHD199005-199912

62760WINDOW ASSY, SLIDE DOOR, LH

main62072-28010iTCR1#,2#..LHD199005-199112

*TT,T=4.0,BLUE

sub62072-28011

main62072-28011iTCR1#,2#..LHD..(V,W)199112-199511

*TT,T=4.0,BLUE

sub62072-28012

main62072-28012iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,BLUE

sub62072-28110

main62072-28020iTCR1#,2#..LHD199005-199108

*TEM,T=4.0

main62072-28030iTCR1#,2#..LHD199005-199112

*TT,T=4.0,BRONZE

sub62072-28031

main62072-28031iTCR1#,2#..LHD199112-199511

*TT,T=4.0,BRONZE

sub62072-28032

main62072-28032iTCR10..GEN199511-199912

*TT,T=4.0,BRONZE

main62072-28040iTCR1#,2#..LHD199005-199112

*TT,T=4.0,GRAY

sub62072-28041

main62072-28041iTCR1#,2#..LHD199112-199308

*TT,T=4.0,GRAY

sub62072-28042

main62072-28051iTCR10..V199408-199511

*SERT,T=4.0,BRONZE

sub62072-28052

main62072-28052iTCR10..V199511-199801

*SERT,T=4.0,BRONZE

main62072-28090iTCR1#,2#..LHD..(V,W)199308-199511

*TT,T=4.0,GREEN

sub62072-28091

main62072-28091iTCR1#,2#..LHD..(V,W)199511-199801

*TT,T=4.0,GREEN

sub62072-28110

main62072-28100iTCR1#,2#..LHD..(V,W)199801-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

main68104-28010iTCR10,20..ARL;TCR11..RHD..W199005-199108

*TEM,T=4.0

main68104-28020iTCR1#,2#..RHD199005-199112

*TT,T=4.0,BLUE

sub68104-28021

main68104-28021iTCR1#,21..RHD199112-199511

*TT,T=4.0,BLUE

sub68104-28022

main68104-28022iTCR11..RHD..W199511-199801

*TT,T=4.0,BLUE

main68104-28030iTCR11,21..RHD199005-199112

*TT,T=4.0,BRONZE

sub68104-28031

main68104-28031iTCR11,21..RHD199112-199511

*TT,T=4.0,BRONZE

sub68104-28032

main68104-28032iTCR11..RHD199511-199801

*TT,T=4.0,BRONZE

main68104-28032iTCR1#..RHD199801-199912

*TT,T=4.0,BRONZE,TYPE A:REFER TO ILLUSTRATION

main68104-28040iTCR11,21..RHD199005-199112

*TT,T=4.0,GRAY

sub68104-28041

main68104-28041iTCR11,21..RHD199112-199308

*TT,T=4.0,GRAY

main68104-28091iTCR1#..ARL199708-199912

*TT,T=4.0,BRONZE,TYPE B:REFER TO ILLUSTRATION

62910FLOCK ASSY, SIDE FRONT WINDOW, RH

main62910-28020-B0iTCR1#..ARL199510-199912

LT.GRAY,TRIM1#

sub62910-28020

main62910-28020-B1iTCR11..LHD;TCR10,21..07S199801-199912

LT.GRAY,TRIM1#

sub62910-28020

main62910-28020-B1iTCR10..GEN199705-199801

LT.GRAY,TRIM11

sub62910-28020

main62910-28020-B1iTCR10..GEN199801-199912

LT.GRAY,TRIM1#,11

sub62910-28020

main62910-28020-E0iTCR11..ARL199510-199801

LT.GREIGE,TRIM4#

sub62910-28020

main62910-95D00-03iTCR1#,2#..LHD199005-199308

LIGHT GRAY,TRIM1#

sub62910-95D00

sub62910-28020

main62910-95D00-05iTCR11,21..RHD199005-199308

LIGHT GREIGE,TRIM4#

sub62910-95D00

sub62910-28020

main62910-95D00-B8iTCR1#..RHD199308-199510

LIGHT GRAY,TRIM1#

sub62910-95D00

sub62910-28020

main62910-95D00-L1iTCR1#,21..LHD..GL199308-199510

LIGHT GREIGE,TRIM4#

sub62910-95D00

sub62910-28020

62910GLOCK ASSY, SIDE REAR WINDOW, RH

main62910-28020-B0iTCR1#..ARL199510-199912

LT.GRAY,TRIM1#

sub62910-28020

main62910-28020-B1iTCR11..RHD199801-199912

LT.GRAY,TRIM1#

sub62910-28020

main62910-28020-E0iTCR11..ARL199510-199801

LT.GREIGE,TRIM4#

sub62910-28020

main62910-95D00-03iTCR1#,2#..RHD199005-199308

LIGHT GRAY,TRIM1#

sub62910-95D00

sub62910-28020

main62910-95D00-05iTCR11,21..RHD199005-199308

LIGHT GREIGE,TRIM4#

sub62910-95D00

sub62910-28020

main62910-95D00-B8iTCR1#..RHD199308-199510

LIGHT GRAY,TRIM1#

sub62910-95D00

sub62910-28020

main62910-95D00-L1iTCR11..RHD199308-199510

LIGHT GREIGE,TRIM4#

sub62910-95D00

sub62910-28020

62912BASE, SIDE WINDOW LOCK HOOK, RH

main62912-28010-01iTCR10,20..W199008-199308

BLACK,TRIM1#

sub62912-28010

main62912-28010-C0iTCR10..GEN199308-199912

BLACK,TRIM1#

sub62912-28010

main62912-95D01-01iTCR10,20..W199005-199008

BLACK,TRIM1#

sub62912-28010

sub90149-60089

62912ABASE, SIDE WINDOW LOCK HOOK, LH

main62912-28010-01iTCR10,20..ARL199008-199308

BLACK,TRIM1#

sub62912-28010

main62912-28010-C0iTCR11..ARL199308-199912

BLACK,TRIM1#

sub62912-28010

main62912-95D01-01iTCR10,20..ARL199005-199008

BLACK,TRIM1#

sub62912-28010

sub90149-60089

62918ASPACER, SIDE WINDOW FRAME

main62918-28020iTCR1#,2#199112-199912

62920CLOCK ASSY, SLIDE DOOR WINDOW, LH

main62920-28040-B0iTCR10..ARL199510-199912

LT.GRAY,TRIM1#

sub62920-28040

main62920-28040-B1iTCR11..RHD199801-199912

LT.GRAY,TRIM1#

sub62920-28040

main62920-28040-B1iTCR10..GEN199705-199801

LT.GRAY,TRIM11

sub62920-28040

main62920-28040-E0iTCR11..RHD199510-199801

LT.GREIGE,TRIM4#

sub62920-28040

main62920-95D00-03iTCR1#,2#..LHD199005-199308

LIGHT GRAY,TRIM1#

sub62920-95D00

sub62920-28040

main62920-95D00-05iTCR11,21..RHD199005-199308

LIGHT GREIGE,TRIM4#

sub62920-95D00

sub62920-28040

main62920-95D00-B8iTCR1#,2#..LHD199308-199510

LIGHT GRAY,TRIM1#

sub62920-95D00

sub62920-28040

main62920-95D00-L1iTCR11..RHD199308-199510

LIGHT GREIGE,TRIM4#

sub62920-95D00

sub62920-28040

9014860048

main90148-60048

9014860050

main90148-60050

9014960086

main90149-60086

9017906260

main90179-06260

9025404034

main90254-04034

9038511022

main90385-11022

29 parts on this diagram · 2 diagrams in section
