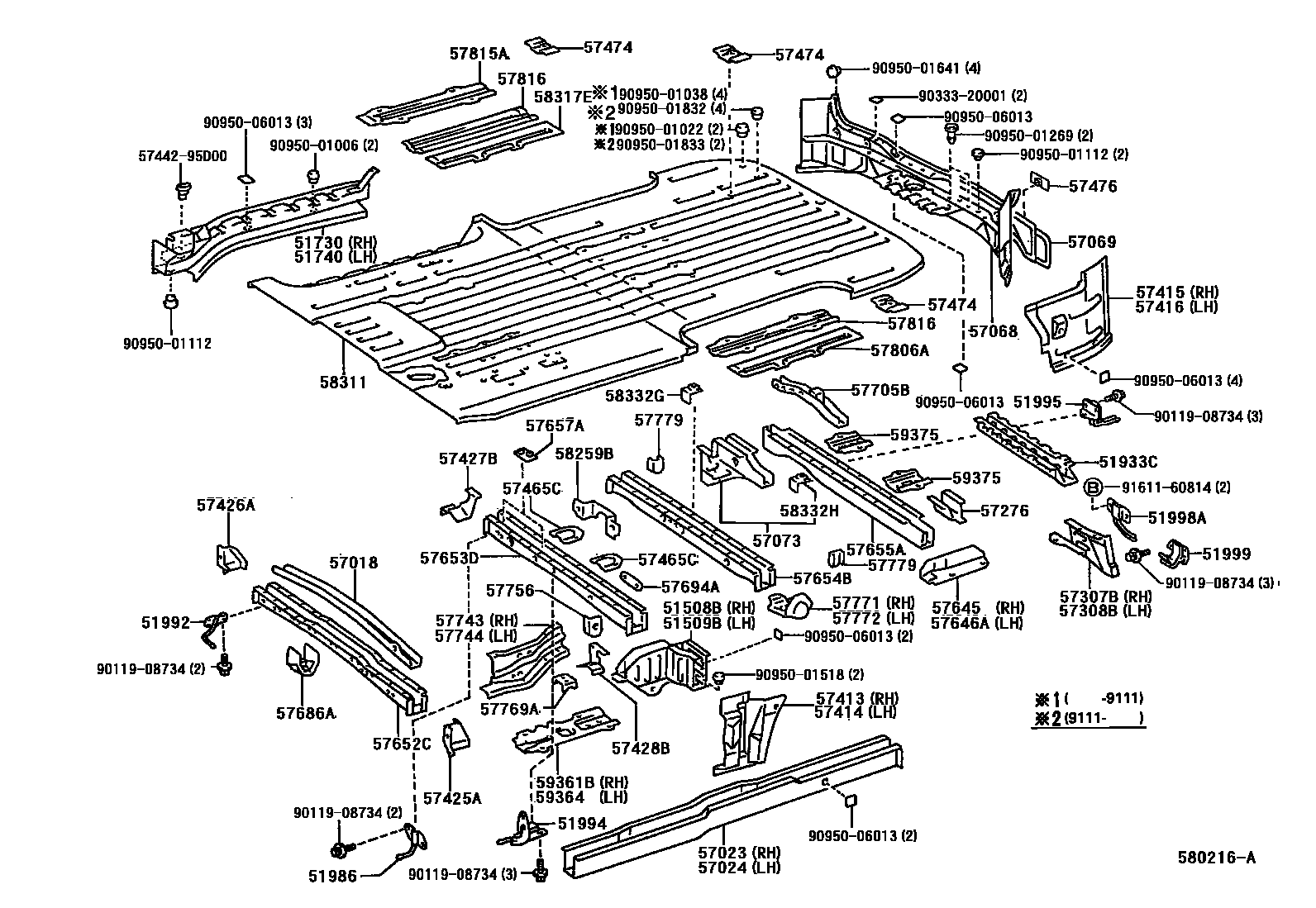

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51508BBRACKET SUB-ASSY, LOWER CONTROL LINK, RH

main51508-95D02iTCR11,21..RHD199005-199912

main51508-95D03iTCR11,21..LHD199005-199912

main51508-95D04iTCR10,20..LHD199005-199912

main51508-95D05iTCR10,20..ARL199005-199912

51509BBRACKET SUB-ASSY, LOWER CONTROL LINK, LH

main51509-95D02iTCR11,21..RHD199005-199912

main51509-95D03iTCR11,21..LHD199005-199912

main51509-95D04iTCR10,20..ARL199005-199912

main51509-95D05iTCR10,20..LHD199005-199912

51730STEP ASSY, REAR FLOOR, RH

main51730-28010iTCR10,20..LHD199005-199312

sub51730-28011

main51730-28011iTCR10,20..LHD199312-199912

main51730-28020iTCR11,21..LHD199005-199312

sub51730-28021

main51730-28021iTCR11,21..LHD199312-199912

51740STEP ASSY, REAR FLOOR, LH

main51740-28010iTCR11..RHD199312-199912

main51740-28020iTCR10..ARL199312-199912

main51740-95D00iTCR11,21..RHD199005-199312

sub51740-28010

main51740-95D01iTCR10,20..ARL199005-199312

sub51740-28020

51933CSTOPPER, SPARE WHEEL

main51933-95D00iTCR1#,2#199005-199912

51986HANGER, EXHAUST PIPE SUPPORT, NO.3

main51986-28020iTCR1#,2#199401-199912

main51986-28040iTCR1#..ARL199608-199912

UNLEADED FUEL

51992HANGER, EXHAUST PIPE SUPPORT, NO.2

main51992-28020iTCR1#,2#199401-199912

51994HANGER, EXHAUST PIPE, NO.4

main51994-28030iTCR1#,2#..GEN,V,W199401-199912

main51994-28040iTCR1#..ARL199608-199912

UNLEADED FUEL

51995HANGER, EXHAUST PIPE, NO.5

main51995-28020iTCR10,20..W199608-199912

main51995-28030iTCR11,21..W199608-199912

51998AHANGER, EXHAUST PIPE SUPPORT, NO.6

main51998-28020iTCR1#,2#..(GL,XL)..(ARL,W)199608-199912

51999HANGER, EXHAUST PIPE SUPPORT, NO.7

main51999-28020iTCR1#,2#..W199608-199912

57018BRACKET SUB-ASSY, CROSSMEMBER FLOOR, NO.1

main57018-95D00iTCR1#,2#199005-199912

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28110iTCR11,21..W199005-199912

main57023-28440iTCR10,20199801-199912

main57023-28450iTCR11..ARL199801-199912

main57023-95D16iTCR11,21..ARL199005-199801

sub57023-28450

main57023-95D17iTCR10,20199005-199801

sub57023-28440

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28090iTCR11,21..W199005-199108

main57024-28120iTCR10,20199108-199801

sub57024-28470

main57024-28130iTCR11,21..ARL199108-199801

sub57024-28480

main57024-28140iTCR11,21..W199108-199912

sub57024-28090

main57024-28470iTCR10,20199801-199912

main57024-28480iTCR11..ARL199801-199912

main57024-95D17iTCR11,21..ARL199005-199108

sub57024-28090

main57024-95D18iTCR10,20199005-199108

sub57024-28120

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28190iTCR1#,2#..W199608-199810

main57068-28190iTCR1#,2#..(GL,XL)..(ARL,W)199810-199912

HONG KONG SPEC

main57068-95D05iTCR1#..ARL,GEN,V199608-199912

LEADED GASOLINE SPEC

sub57068-28230

sub90333-20001

main57068-95D05iTCR1#,2#199005-199608

sub57068-28230

sub90333-20001

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-95D00iTCR1#,2#199005-199912

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-28020iTCR10,20..W199608-199912

main57073-28030iTCR10,20199308-199912

main57073-95D02iTCR10,20199005-199308

57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4

main57276-95D00iTCR10,20199005-199912

57307BOUTRIGGER SUB-ASSY, NO.4 RH

main57307-95D00iTCR1#,2#199005-199912

57308BOUTRIGGER SUB-ASSY, NO.4 LH

main57308-95D00iTCR1#,2#199005-199912

57413RAIL, FLOOR SIDE, CENTER RH

main57413-95D02iTCR1#,2#..LHD199005-199912

main57413-95D03iTCR1#,2#..RHD199005-199912

57414RAIL, FLOOR SIDE, CENTER LH

main57414-95D01iTCR1#,2#..LHD199005-199912

main57414-95D02iTCR1#,2#..RHD199005-199912

57415RAIL, FLOOR SIDE, REAR RH

main57047-95D00iTCR1#,2#199005-199912

main57415-95D00iTCR11..LHD..MTM199005-199912

DENMARK SPEC

sub57047-95D00

57416RAIL, FLOOR SIDE, REAR LH

main57048-95D00iTCR1#,2#199005-199912

main57416-95D00iTCR11..LHD..MTM199005-199912

DENMARK SPEC

sub57048-95D00

57425APLATE, REAR STEP, FRONT RH

main57425-95D00iTCR1#,2#..LHD199005-199912

57426APLATE, REAR STEP, FRONT LH

main57426-95D00iTCR1#,2#..RHD199005-199912

57427BPLATE, REAR STEP, REAR RH

main57427-95D00iTCR1#,2#..LHD199005-199912

57428BPLATE, REAR STEP, REAR LH

main57428-95D00iTCR1#,2#..RHD199005-199912

57465CRETAINER, BELT ANCHOR, NO.2

main57465-95D01iTCR21..W199005-199105

GERMANY OR SWITZERLAND OR SWEDEN

main57465-95D01iTCR20..W199005-199108

SWITZERLAND SPEC

main57465-95D01iTCR21..W199105-199108

GERMANY OR SWITZERLAND OR SWEDEN OR AUSTRIA

main57465-95D01iTCR1#199005-199912

main57465-95D01iTCR21..W199108-199308

AUSTRIA SPEC

57474PLATE, BELT ANCHOR, NO.1

main57474-95D02iTCR2#..ARL199005-199108

W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)),LH

main57474-95D02iTCR1#..ARL199005-199912

LH

main57474-95D02iTCR1#..ARL199005-199108

FRONT

main57474-95D03iTCR21..ARL199005-199912

RH

main57474-95D03iTCR11,21..ARL199005-199912

W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)),RH

main57474-95D04iTCR1#,2#..ARL199005-199912

REAR

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-95D00iTCR1#,2#199308-199912

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-95D01iTCR10,20199005-199912

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-95D01iTCR10,20199005-199912

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-95D02iTCR1#,2#199005-199912

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-95D01iTCR1#,2#199005-199912

57654BMEMBER, REAR FLOOR CROSS, NO.3

main57654-95D02iTCR1#,2#199005-199912

57655AMEMBER, REAR FLOOR CROSS, NO.4

main57655-28040iTCR11,21199108-199912

main57655-28070iTCR10,20199308-199912

main57655-95D02iTCR11,21199005-199108

sub57655-28040

sub51957-28040

main57655-95D03iTCR10,20199005-199308

sub57006-28010

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main57657-28020iTCR1#,2#199401-199912

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-95D00iTCR1#,2#199005-199912

57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2

main57694-95D00iTCR1#,2#199005-199912

57705BREINFORCEMENT SUB-ASSY, REAR ABSORBER MOUNTING, RH

main57705-95D04iTCR10,20199005-199308

57743BRACKET, UPPER CONTROL LINK, INNER RH

main57743-28040iTCR10,20199608-199912

main57743-95D00iTCR10,20199005-199608

57744BRACKET, UPPER CONTROL LINK, INNER LH

main57744-28030iTCR10,20199608-199912

main57744-95D00iTCR10,20199005-199608

57756PLATE, REAR FLOOR NO.2 CROSSMEMBER

main57756-95D00iTCR11,21199005-199912

57769AREINFORCEMENT, UPPER CONTROL LINK BRACKET

main57769-95D00iTCR10,20199005-199912

57771PLATE, REAR SPRING, RH

main57771-95D01iTCR10,20199005-199912

57772PLATE, REAR SPRING, LH

main57772-95D01iTCR10,20199005-199912

57779RETAINER, UPPER CONTROL LINK, UPPER

main57779-95D00iTCR10,20199005-199912

57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2

main57806-95D00iTCR2#..W;TCR1#..ARL,W199005-199912

57815AREINFORCEMENT, BELT ANCHOR, RH

main57815-28020iTCR11..LHD199005-199308

W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))

main57815-28020iTCR1#..GL..(GEN,W)199308-199912

main57815-95D00iTCR10..GEN199705-199912

CHINA SPEC

main57815-95D00iTCR2#..W199005-199108

main57815-95D01iTCR11..ARL;TCR10,21..07S..(ARL,V)199005-199912

57816REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57808-28020iTCR11..LHD..ATM199005-199308

W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))

main57808-28020iTCR1#..GL..(GEN,W)199308-199608

main57808-28080iTCR1#..GL..(GEN,W)199608-199912

main57808-95D00iTCR21..ARL199005-199108

W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST))

main57808-95D00iTCR11..ARL;TCR10,21..ATM..07S199108-199912

main57808-95D01iTCR2#..ARL199005-199108

58259BREINFORCEMENT, PARKING BRAKE CABLE, NO.1

main58259-95D00iTCR10,20;TCR11,21..LHD199005-199912

main58259-95D01iTCR11,21..RHD199005-199912

58311PAN, REAR FLOOR

main58311-28120iTCR11..LHD199005-199608

W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))

sub58311-28912

main58311-28530iTCR10..GEN199308-199608

sub58311-28180

sub90333-30002

main58311-28580iTCR11..LHD199608-199912

W(REAR NO.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))

sub58311-28912

main58311-28600iTCR11..RHD..W199308-199608

W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))

sub58311-28911

main58311-28620iTCR10..V199408-199912

sub58311-95D06

sub90333-30002

main58311-28640iTCR10..GEN199608-199912

sub58311-28580

sub90333-30002

main58311-28650iTCR11..RHD..W199608-199912

W(REAR NO.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))

sub58311-28911

main58311-28670iTCR10..GEN199705-199912

CHINA SPEC

sub58311-95D04

sub90333-30002

main58311-95D05iTCR1#..LHD199005-199108

SWITZERLAND SPEC

sub58311-28912

main58311-95D05iTCR21..W199005-199103

*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC

sub58311-28912

main58311-95D05iTCR10..V199608-199912

W(REAR NO.1 SEAT = 2+1(SEAT BACK SEPARATE))

sub58311-28912

main58311-95D05iTCR21..W199105-199108

*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC OR ICELAND SPEC OR AUSTRIA SPEC

sub58311-28912

main58311-95D05iTCR1#,2#..LHD..W199108-199912

sub58311-28912

main58311-95D05iTCR21..W199103-199105

*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC OR ICELAND SPEC

sub58311-28912

main58311-95D08iTCR2#..W199005-199108

sub58311-95D04

sub90333-30002

main58311-95D10iTCR11..LHD..MTM199005-199912

DENMARK SPEC

sub58311-28120

sub90333-30002

main58311-95D11iTCR1#..ARL199005-199912

sub58311-28911

main58311-95D12iTCR11..RHD..W199005-199912

sub58311-28911

main58311-95D13iTCR11..ARL199005-199912

W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST))

sub58311-28911

main58311-95D13iTCR21..ARL199108-199308

sub58311-28911

main58311-95D15iTCR2#..ARL199005-199108

sub58311-28911

58317ERETAINER, REAR SEAT, NO.2

main58317-95D00iTCR1#,2#..ARL,V,W199005-199912

58332GBRACKET, REAR FLOOR HEAT INSULATOR, NO.4

main58332-28040iTCR1#,2#..(GL,XL)..(ARL,W)199608-199912

58332HBRACKET, REAR FLOOR HEAT INSULATOR, NO.4

main58332-28040iTCR10,20..W199608-199912

59361BRETAINER, REAR SEAT, NO.1 A

main59361-28030iTCR1#,2#199608-199912

main59361-95D00iTCR1#,2#..LHD199005-199608

main59361-95D01iTCR1#,2#..RHD199005-199608

59364RETAINER, REAR SEAT, NO.1 D

main59364-28030iTCR1#,2#..LHD199608-199912

main59364-28040iTCR1#..RHD199608-199912

main59364-95D00iTCR1#,2#..LHD199005-199608

main59364-95D01iTCR1#,2#..RHD199005-199608

59375RETAINER, REAR SEAT, NO.4

main59375-95D00iTCR11,21199005-199912

main59375-95D01iTCR10,20199005-199912

5744295D00PLUG, STEP PANEL HOLE

main57442-95D00

9011908734

main90119-08734

9033320001

main90333-20001

9095001006

main90950-01006

9095001022

main90950-01022

9095001038

main90950-01038

9095001112

main90950-01112

9095001269

main90950-01269

9095001518

main90950-01518

9095001641

main90950-01641

9095001832

main90950-01832

9095001833

main90950-01833

9095006013

main90950-06013

9161160814

main91611-60814

73 parts on this diagram · 2 diagrams in section
