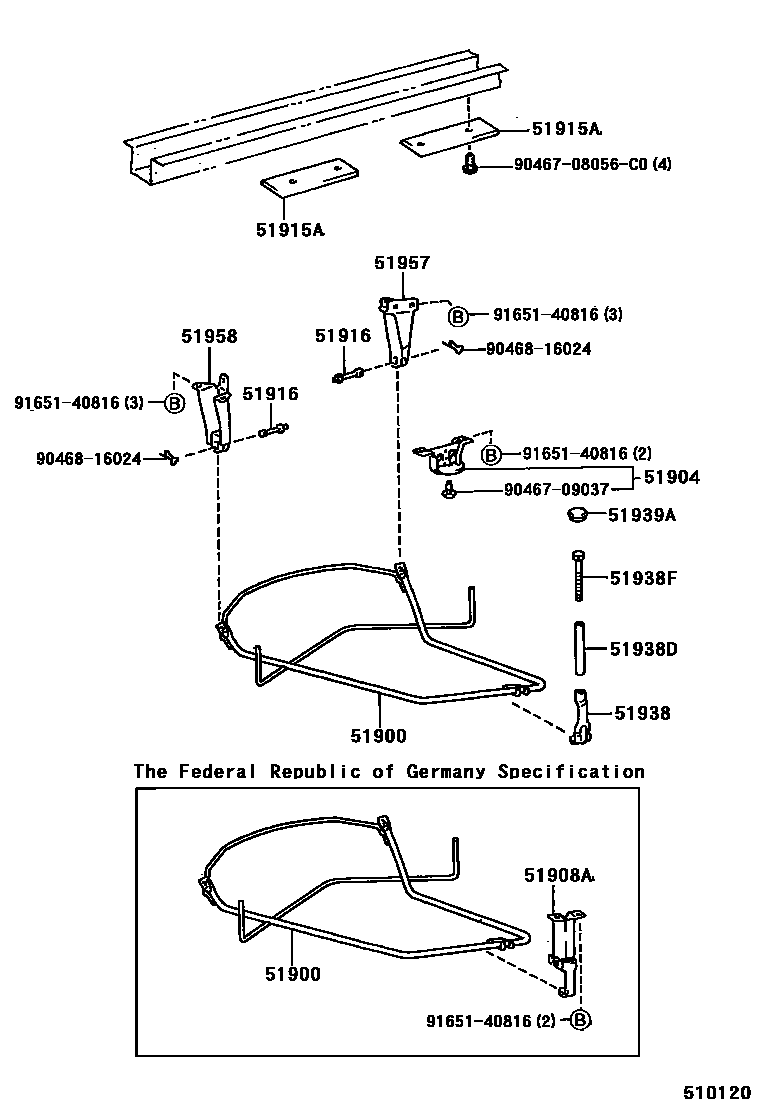

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28160iTCR1#,2#199005-199108

sub51900-28161

main51900-28161iTCR1#,2#199108-199501

sub51900-28162

main51900-28162iTCR1#,2#199501-199912

51904BRACKET SUB-ASSY, SPEARE WHEEL CARRIER

main51904-28020iTCR1#,2#199005-199504

sub51915-28030

sub51933-28121

main51933-28121iTCR1#,2#..ARL,W199504-199912

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-28020iTCR1#..LHD..W199005-199912

*FRG

51915ABASE, SPARE WHEEL CARRIER

main51915-28020iTCR1#,21..RHD199208-199308

BELGIUM SPEC OR DENMARK SPEC

main51915-28020iTCR10..W199208-199308

BELGIUM SPEC

main51915-28020iTCR1#199007-199912

main51915-28030iTCR1#,2#..ARL,W199504-199912

TEMPORARY USE = SPARE TIRE

51916PIN, SPARE TIRE CARRIER

main51916-27020iTCR1#,2#199005-199912

51938LOCK, SPARE WHEEL CARRIER

main51938-27070iTCR1#,2#199005-199912

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17051iTCR1#,2#199005-199912

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90119-12190iTCR1#,2#199005-199912

51939ACAP, SPARE WHEEL CARRIER HANDLE

main51939-28090iTCR1#,2#199112-199912

main90950-01119iTCR1#,2#199005-199112

sub90950-01901

51957BRACKET, SPARE WHEEL CARRIER HINGE, RH

main51957-28010iTCR10,20199005-199912

main51957-28020iTCR11,21199005-199108

main51957-28040iTCR11,21199108-199912

51958BRACKET, SPARE WHEEL CARRIER HINGE, LH

main51958-28010iTCR1#,2#199005-199912

9046708056C0

main90467-08056C0

9046709037

main90467-09037

9046816024

main90468-16024

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section
