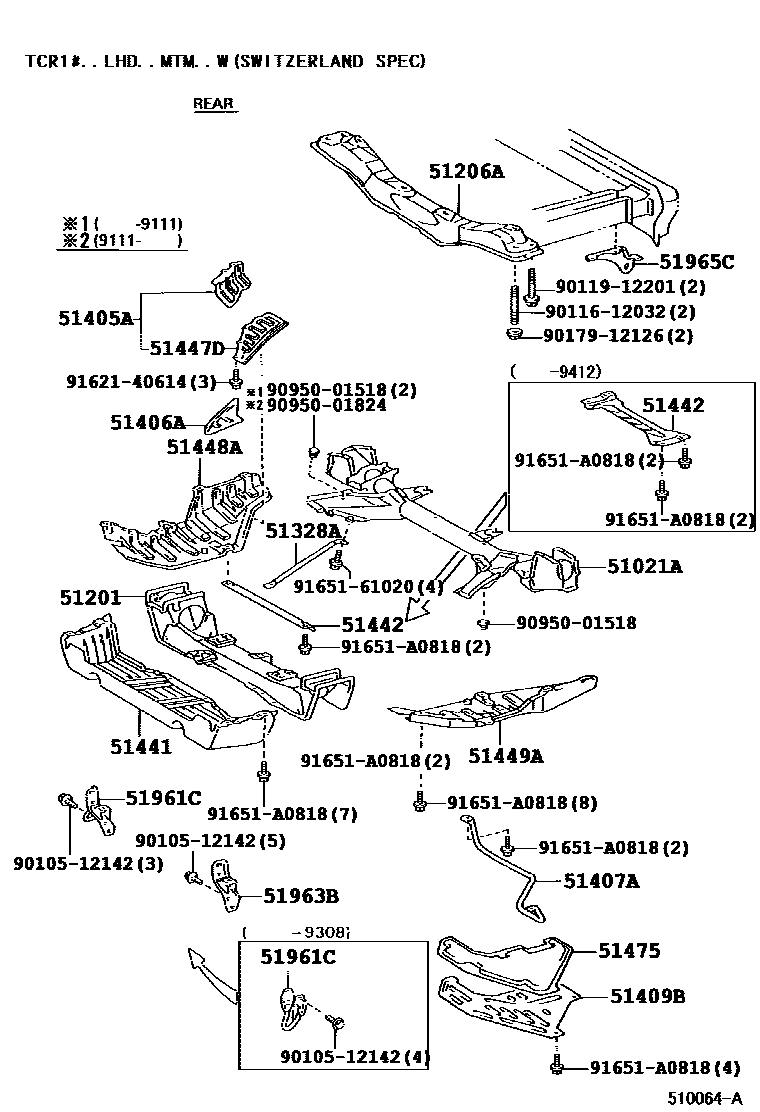

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1 0004 1 0006 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-28100iTCR1#..MTM..W199604-199912

main51021-28110iTCR2#199604-199912

main51021-95D00iTCR11..ATM;TCR10..ARL,GEN,V199005-199912

main51021-95D01iTCR2#199005-199604

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28140iTCR1#..LHD199308-199912

sub51201-28150

main51201-28150iTCR2#199308-199912

main51201-28160iTCR1#..RHD199308-199912

sub51201-28170

main51201-95D02iTCR1#..LHD199005-199308

sub51201-28180

sub52383-28030

sub52384-28020

main51201-95D03iTCR2#..W199005-199308

sub51201-28190

sub52383-28030

sub52384-28020

main51201-95D04iTCR1#..RHD199005-199308

sub51201-28200

sub52383-28030

sub52384-28020

main51201-95D05iTCR2#..ARL199005-199308

sub51201-28210

sub52383-28030

sub52384-28020

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-95D00iTCR11,21199005-199912

51328ASUPPORT, FRONT SUSPENSION MEMBER, FRONT

main51328-95D00iTCR1#,2#199005-199912

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-28060iTCR1#..ATM199401-199912

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51405-28060iTCR11..W;TCR10,2#..MTM199604-199912

main51405-28060iTCR11..LHD..ATM199401-199604

SWITZERLAND SPEC

main51406-28010iTCR11..LHD..ATM199005-199401

SWITZERLAND SPEC

main51406-28010iTCR1#,2#..MTM199005-199401

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-28010iTCR1#,2#..MTM..W199005-199912

main51407-28010iTCR11..LHD..ATM199005-199604

SWITZERLAND SPEC

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-28010iTCR1#,2#..MTM..W199005-199912

main51409-28010iTCR11..LHD..ATM199005-199604

SWITZERLAND SPEC

51441COVER, ENGINE UNDER, NO.1

main51441-95D01iTCR1#,2#199005-199912

51442COVER, ENGINE UNDER, NO.2

main51406-28050iTCR1#,2#..MTM..W199604-199912

main51442-28090iTCR1#,2#199412-199912

main51442-95D01iTCR1#,2#199005-199412

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-28040iTCR1#..ATM199401-199912

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-28010iTCR1#,2#..MTM..W199005-199912

main51448-28010iTCR11..LHD..ATM199005-199401

SWITZERLAND SPEC

main51448-95D00iTCR1#,21..ATM199005-199401

sub51448-28010

main51448-95D00iTCR1#,2#..LHD..MTM199005-199108

SWITZERLAND SPEC

sub51448-28010

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-28020iTCR1#,2#..MTM199108-199912

main51449-28020iTCR11,21..LHD..MTM199005-199108

AUSTRIA SPEC

main51449-28020iTCR11..LHD..ATM199005-199604

SWITZERLAND SPEC

main51449-95D01iTCR1#..ATM..(ARL,GEN,V)199005-199912

sub51449-28020

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-28010iTCR11..W;TCR10,2#..MTM199005-199912

main51475-28010iTCR11..LHD..ATM199005-199604

SWITZERLAND SPEC

51961CHOOK, FRONT

main51961-28030iTCR1#,2#199308-199912

main51961-95D00iTCR1#,2#199005-199308

51963BHOOK, TRANSPORT, FRONT RH

main51964-28050iTCR1#,2#199308-199912

51965CHOOK, REAR

main51965-28050iTCR1#,2#199308-199912

main51965-95D00iTCR1#,2#199005-199308

9010512142

main90105-12142

9011612032

main90116-12032

9011912201

main90119-12201

9017912126

main90179-12126

9095001518

main90950-01518

9095001824

main90950-01824

9162140614

main91621-40614

9165161020

main91651-61020

91651A0818

main91651-A0818

26 parts on this diagram · 4 diagrams in section
