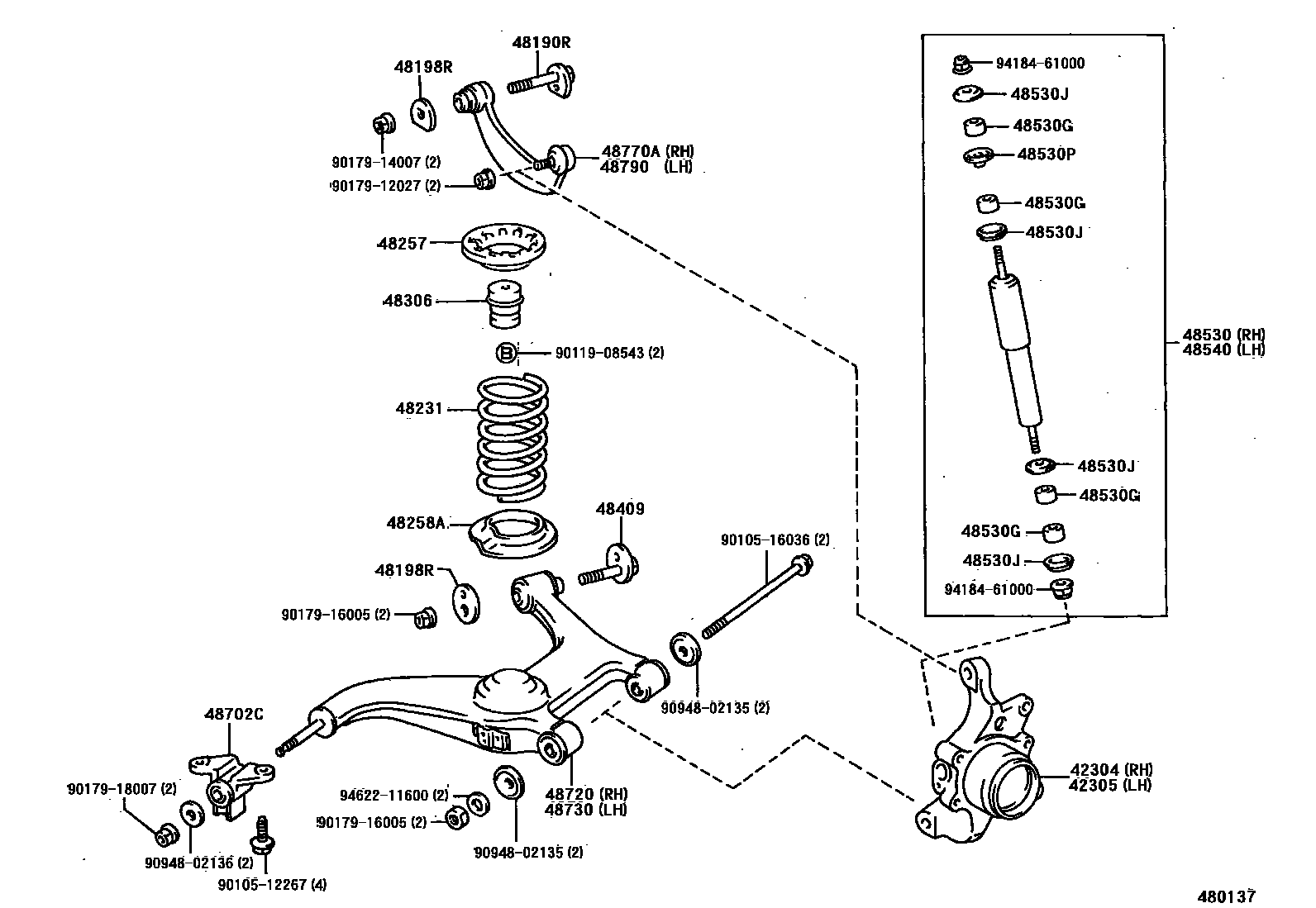

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
W(ABS)
W(ABS & RR DISC BRAKE)
W(RR DISC BRAKE)
42305CARRIER SUB-ASSY, REAR AXLE, LH
W(ABS)
W(ABS & RR DISC BRAKE)
W(RR DISC BRAKE)
48190RCAM ASSY, CAMBER ADJUST
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
LWR CONTROL ARM
48231SPRING, COIL, REAR
W(SUN ROOF)
W(SUN ROOF OR RR RETRCT CAPTAIN SEAT W/ARM REST)
sub48231-28500
sub48231-28490
EUROPE N1 SPEC
W(SUN ROOF OR RR RETRCT CAPTAIN SEAT W/ARM REST)
sub48231-28240
sub48231-28620
48257INSULATOR, REAR COIL SPRING
48258AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
RH
LH
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
9010512267
main90105-12267
9010516036
main90105-16036
9011908543
main90119-08543
9017912027
main90179-12027
9017914007
main90179-14007
9017916005
main90179-16005
9017918007
main90179-18007
9094802135
main90948-02135
9094802136
main90948-02136
9418461000
main94184-61000
9462211600
main94622-11600
31 parts on this diagram · 2 diagrams in section
