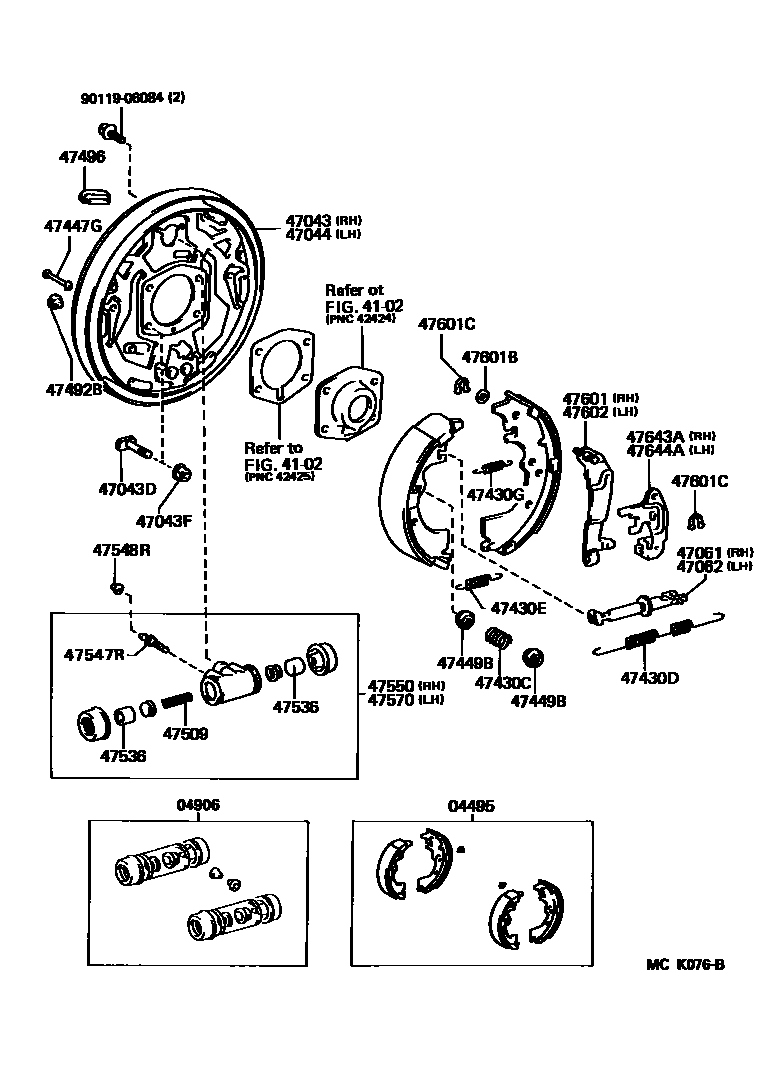

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04495SHOE KIT, REAR BRAKE

main04495-28071iTCR10,20¥13,000199005-199405

main04495-28080iTCR10,20..W¥10,200199405-199912

sub04495-28170¥10,200

main04495-35131iTCR11;TCR21..W¥10,500199005-199308

main04495-35131iTCR10..W¥10,500199108-199308

FINLAND SPEC

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iTCR10,20..W¥1,110199005-199607

main04906-30100iTCR1#,2#..ARL¥870199005-199302

main04906-35140iTCR10,20..W¥870199607-199912

4102

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28070iTCR10,20..W¥5,700199005-199405

main47043-28080iTCR11,21..W¥5,900199005-199308

main47043-28080iTCR10..W¥5,900199108-199308

FINLAND SPEC

main47043-28100iTCR10,20..W¥5,700199405-199912

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010iTCR10,20¥430199005-199912

main90119-10396iTCR11,21..W¥150199005-199308

main90119-10396iTCR10..W¥150199108-199308

FINLAND SPEC

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150iTCR10,20..W¥160199005-199912

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28070iTCR10,20¥5,700199005-199405

main47044-28080iTCR11,21¥5,900199005-199308

main47044-28080iTCR10..W¥5,900199108-199308

FINLAND SPEC

main47044-28100iTCR10,20..W¥5,700199405-199912

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-28010iTCR11;TCR21..W¥2,860199005-199308

main47061-28010iTCR10..W¥2,860199108-199308

FINLAND SPEC

main47062-30030iTCR10,20..W¥2,190199005-199912

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-30030iTCR10,20¥2,190199005-199912

main47062-28010iTCR11,21¥2,860199005-199308

main47062-28010iTCR10..W¥2,860199108-199308

FINLAND SPEC

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756iTCR1#,2#¥110199005-199912

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20005iTCR10..W¥260199108-199308

FINLAND SPEC

main90506-20005iTCR11,21¥260199005-199308

main90506-23003iTCR10,20..W¥390199005-199912

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015iTCR11,21¥260199005-199308

main90506-12015iTCR10..W¥260199108-199308

FINLAND SPEC

main90506-18076iTCR10,20..W¥100199405-199912

main90506-23030iTCR10,20..W¥300199005-199405

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12480iTCR10,20¥260199005-199912

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iTCR1#,2#¥130199005-199912

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iTCR1#,2#..W¥120199005-199912

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iTCR10,20..W¥130199005-199912

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iTCR1#,2#¥140199005-199912

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-20010iTCR1#,2#..ARL¥260199005-199302

main47509-35020iTCR1#,2#..W¥300199005-199607

main90029-60009iTCR10,20..W¥90199607-199912

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iTCR1#,2#..ARL¥930199005-199302

main47051-30030iTCR1#,2#..W¥750199005-199607

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020iTCR1#,2#¥180199005-199912

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iTCR21;TCR1#,20..W¥160199005-199912

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28020iTCR1#,2#..ARL¥5,100199005-199302

main47550-28030iTCR10,20..W¥5,700199005-199607

main47550-28031iTCR10,20..W¥5,800199607-199912

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28020iTCR1#,2#..ARL¥5,100199005-199308

main47550-28030iTCR10,20..W¥5,700199005-199607

main47550-28031iTCR10,20..W¥5,800199607-199912

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28010iTCR10,20¥710199005-199912

main47611-35020iTCR11,21..W¥1,020199005-199308

main47611-35020iTCR10..W¥1,020199108-199308

FINLAND SPEC

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-09001iTCR10,20..W¥80199005-199912

T=0.2

main90564-09002iTCR10,20¥70199005-199912

T=0.4

main90564-09003iTCR10,20¥70199005-199912

T=0.5

main90564-09184iTCR10,20¥90199005-199912

T=0.3

main90564-09185iTCR10,20..W¥90199005-199912

T=0.6

main90564-09186iTCR10,20¥90199005-199912

T=0.9

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iTCR10,20..W¥110199005-199912

T=1.2,ADJUSTING LEVER SIDE

main90213-07010iTCR11,21¥110199005-199308

T=1.6

main90213-07010iTCR10,20..W¥110199005-199912

T=1.6,SHOE LEVER SIDE

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28010iTCR10,20..W¥710199005-199912

main47612-35020iTCR11,21..W¥1,020199005-199308

main47612-35020iTCR10..W¥1,020199108-199308

FINLAND SPEC

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-35020iTCR11,21¥440199005-199308

main47643-35020iTCR10..W¥440199108-199308

FINLAND SPEC

main47644-30010iTCR10,20¥610199005-199912

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iTCR10,20..W¥440199005-199912

main47644-35020iTCR11;TCR21..W¥440199005-199308

main47644-35020iTCR10..W¥440199108-199308

FINLAND SPEC

9011906084

main90119-06084¥100
