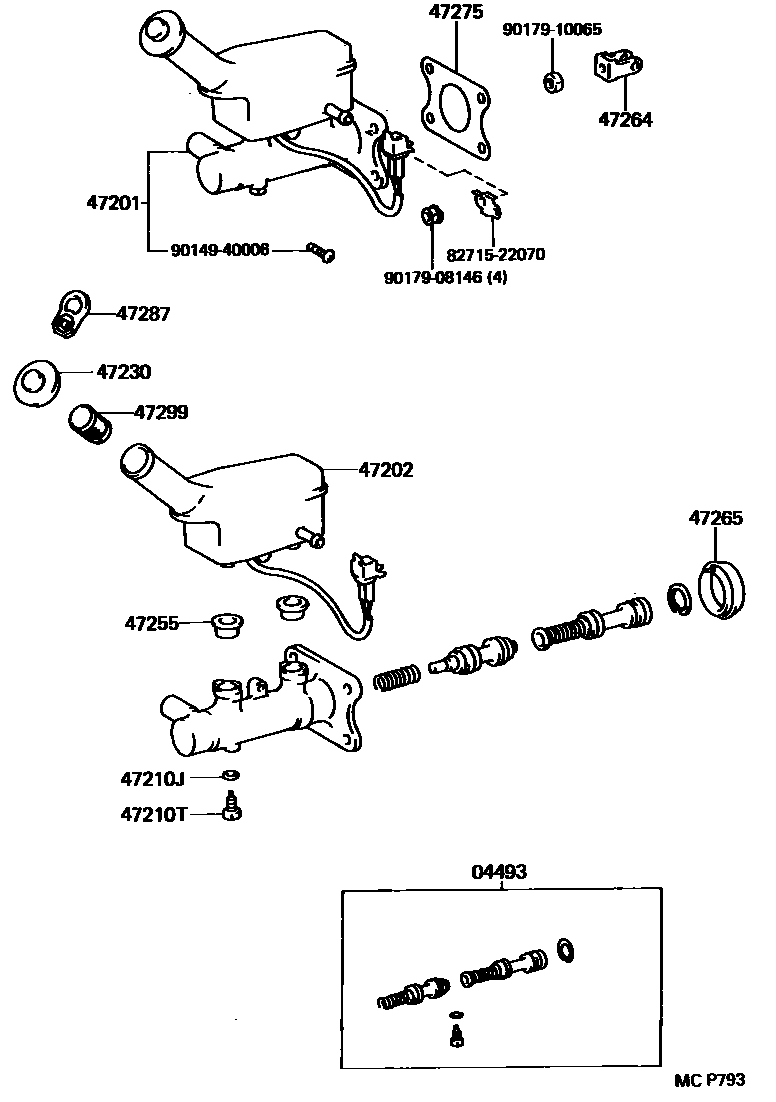

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-25070iTCR11..W;TCR10,2#..MTM199308-199912

main04493-28080iTCR1#,2#199005-199108

main04493-28090iTCR1#,2#..(GL,XL)..(ARL,W)199005-199608

W(ABS)

main04493-28100iTCR1#..ATM..(ARL,GEN,V)199108-199508

sub04493-25070

main04493-30232iTCR1#,2#199608-199912

W(ABS)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28190iTCR1#,2#..ATM199005-199108

main47201-28200iTCR1#,2#..MTM199005-199108

main47201-28210iTCR11,21..ATM199005-199608

W(ABS)

sub47201-28360

main47201-28220iTCR11,21..MTM199005-199308

W(ABS)

sub47201-28370

main47201-28230iTCR1#..ATM199108-199608

sub47201-28340

main47201-28240iTCR1#,2#..MTM199108-199608

sub47201-28350

main47201-28340iTCR11..ATM..W199308-199608

main47201-28350iTCR1#,2#..MTM..W199308-199608

main47201-28360iTCR11..ATM..W199308-199608

W(ABS)

main47201-28370iTCR1#,2#..MTM..W199308-199608

W(ABS)

main47201-28380iTCR1#,2#..MTM..W199608-199912

main47201-28390iTCR11..ATM..W199608-199912

main47201-28400iTCR1#,2#..MTM..W199608-199912

W(ABS)

main47201-28410iTCR11..ATM..W199608-199912

W(ABS)

main47201-28420iTCR10..MTM..ARL199608-199912

sub47201-28380

main47201-28430iTCR1#..ATM..(ARL,GEN,V)199608-199912

sub47201-28390

main47201-28440iTCR10..MTM..ARL199608-199912

W(ABS)

sub47201-28400

main47201-28450iTCR1#..ATM..(ARL,GEN,V)199608-199912

W(ABS)

sub47201-28410

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-28120iTCR11,21..ATM199005-199108

W(ABS)

main47203-28120iTCR1#,21..ATM199108-199912

main47203-28130iTCR1#,2#..MTM199108-199912

main47203-28130iTCR11,21..MTM199005-199108

W(ABS)

main47203-28140iTCR1#,2#..ATM199005-199108

main47203-28150iTCR1#,2#..MTM199005-199108

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iTCR1#,2#199705-199912

main90430-06104iTCR1#,2#199005-199705

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iTCR1#,2#199005-199912

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28020iTCR1#,2#199005-199912

main47230-28030iTCR1#,2#..W199308-199912

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iTCR1#,2#199005-199912

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iTCR1#,2#199005-199912

47265BOOT, MASTER CYLINDER

main47265-20050iTCR1#,2#199005-199506

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iTCR1#,2#199608-199912

main47275-24010iTCR1#,2#199005-199608

47287LABEL, BRAKE FLUID INFORMATION

main47287-28030iTCR1#,2#..W199308-199912

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iTCR1#,2#199005-199912

8271522070BRACKET,WIRING HARNESS CLAMP

main82715-22070

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065
