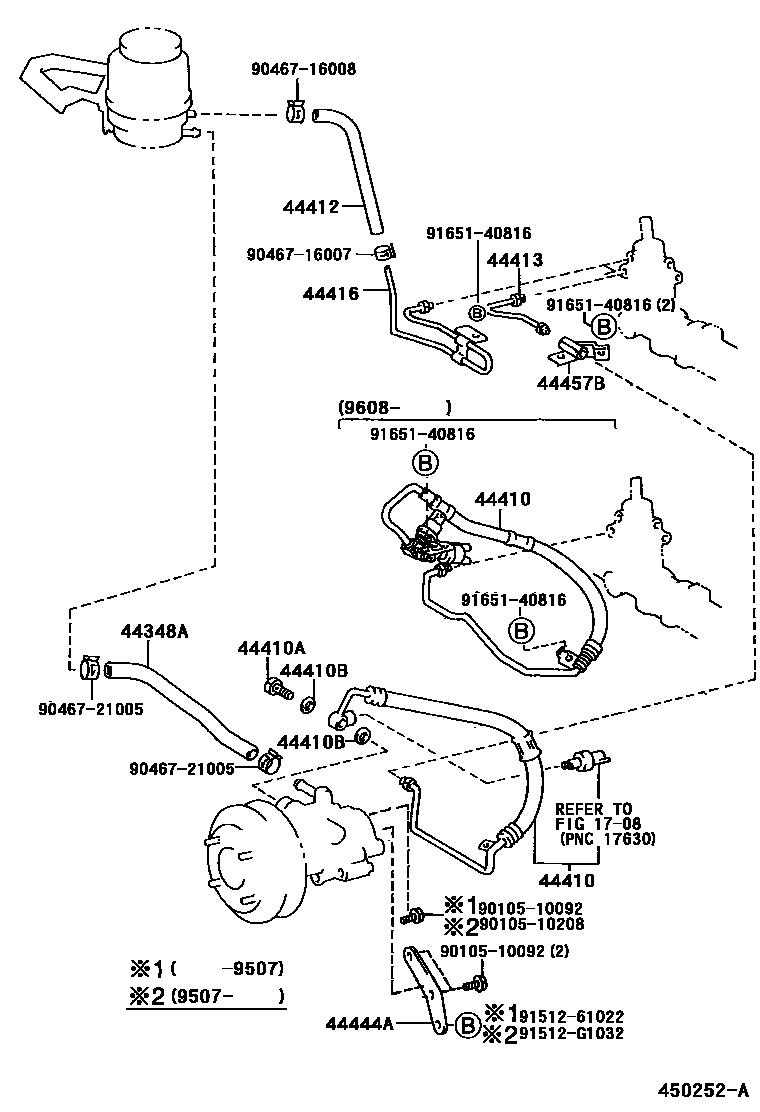

POWER STEERING TUBE

0001 1 0002 1

1708

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28100iTCR1#,2#..LHD199005-199912

main44348-28120iTCR1#,2#..RHD199005-199608

main44348-28150iTCR1#..RHD199608-199912

44410TUBE ASSY, PRESSURE FEED

main44410-28150iTCR1#,2#..LHD199005-199608

main44410-28210iTCR1#,2#..RHD199005-199608

main44410-28400iTCR1#,2#..LHD199608-199912

main44410-28410iTCR1#..RHD199608-199912

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16014iTCR1#,2#199005-199608

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242iTCR1#,2#199005-199608

44412HOSE, RETURN

main44412-28160iTCR1#,2#..LHD199005-199912

main44412-28170iTCR1#,2#..RHD199005-199608

44413TUBE, PRESSURE FEED, NO.1

main44413-28220iTCR1#,2#..RHD199005-199608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28140iTCR1#,2#..LHD199005-199912

main44416-28150iTCR1#,2#..RHD199005-199608

main44416-28300iTCR1#..RHD199608-199912

44444ASTAY, PUMP, REAR NO.1

main44444-28010iTCR1#,2#199005-199912

44457BBRACKET, POWER STEERING TUBE SUPPORT, NO.2

main44457-28040iTCR1#,2#..RHD199005-199608

9010510092

main90105-10092

9010510208

main90105-10208

9046716007

main90467-16007

9046716008

main90467-16008

9046721005

main90467-21005

9151261022

main91512-61022

91512G1032

main91512-G1032

9165140816

main91651-40816

18 parts on this diagram · 2 diagrams in section
