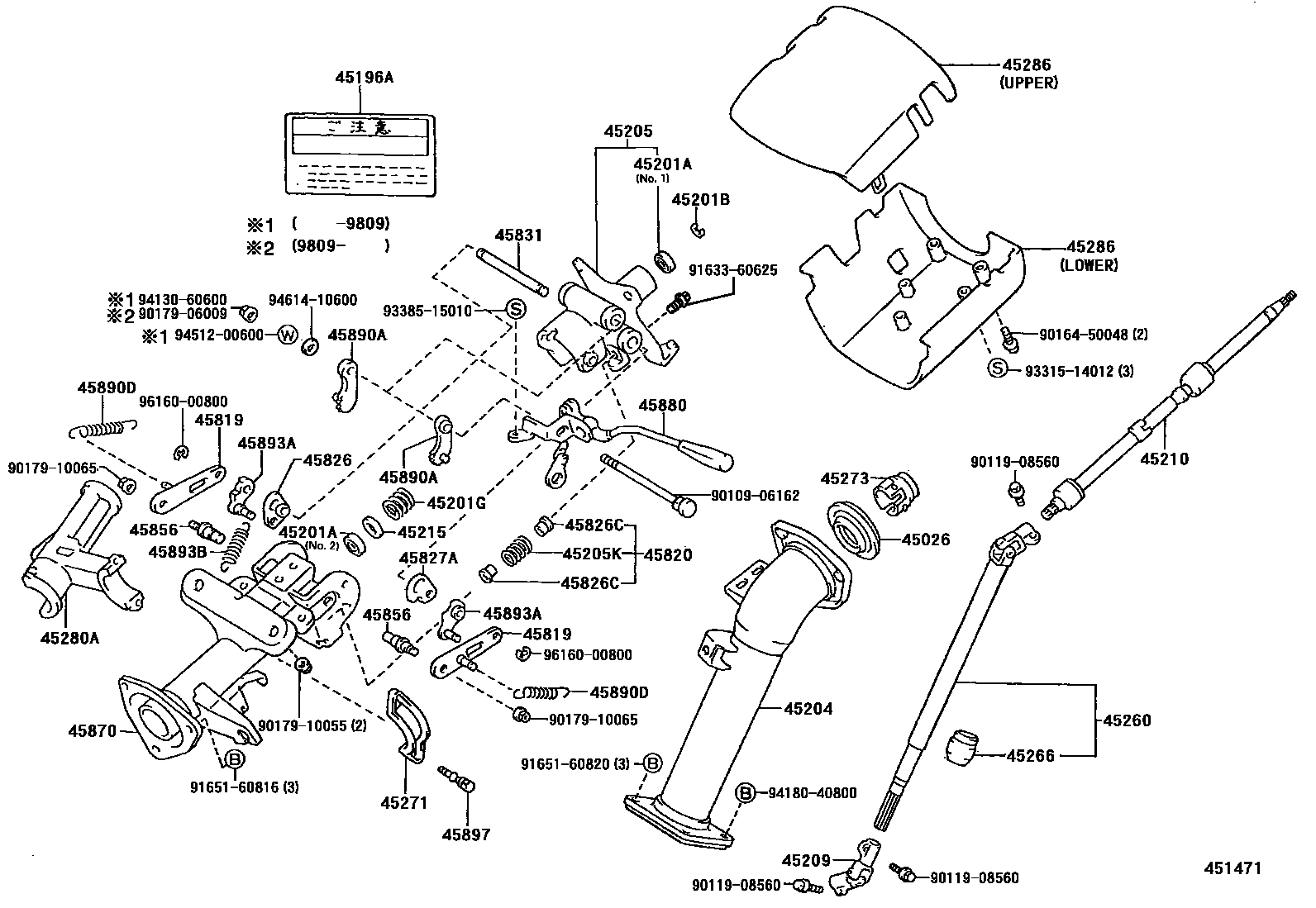

STEERING COLUMN & SHAFT

0001 1TILT STEERING 0002 1

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-28010iTCR1#,2#199005-199912

45196ALABEL, STEERING SHAFT INSTAL CAUTION

main45196-14010iTCR10..GEN199508-199608

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18009iTCR1#,2#199308-199912

NO.1

main90363-18010iTCR1#,2#199005-199912

NO.2

sub90363-18005

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iTCR1#,2#199005-199912

T=1.20

main90520-17042iTCR1#,2#199005-199308

T=1.20,W(TILT STEERING)

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iTCR1#,2#199005-199912

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-28020iTCR1#,2#..LHD199005-199108

main45204-28021iTCR1#,2#..LHD199108-199912

main45204-28030iTCR1#,2#..RHD199005-199108

main45204-28031iTCR1#,21..RHD199108-199608

main45204-28032iTCR1#..RHD199608-199912

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-28100iTCR11,21..LHD199005-199108

W(TILT STEERING)

main45205-28100iTCR1#,2#..LHD199108-199912

main45205-28100iTCR10..GEN199508-199912

W(*80)

main45205-28110iTCR1#..ARL199108-199710

main45205-28110iTCR11..RHD..MTM199608-199801

W(*80)

main45205-28110iTCR11..RHD..W199005-199108

W(TILT STEERING)

main45205-28120iTCR11..RHD..W199308-199912

W(*80)

main45205-28130iTCR11,21..LHD199308-199608

main45205-28130iTCR10,20..W199408-199912

W(*80)

45205KSPRING(FOR STEERING COLUMN TUBE)

main90504-25002iTCR1#,2#199005-199912

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16010iTCR1#,2#199005-199912

45210SHAFT ASSY, STEERING MAIN

main45210-28080iTCR1#,2#199005-199308

main45210-28090iTCR10,20..W199005-199308

W(TILT STEERING)

main45210-28090iTCR1#,2#199308-199801

main45210-28091iTCR1#,2#199801-199912

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iTCR1#,2#199005-199912

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-28010iTCR1#,2#..LHD199005-199912

main45260-28020iTCR1#,2#..RHD199005-199912

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iTCR1#,2#199005-199912

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iTCR1#,2#199005-199912

45273BUSH, STEERING MAIN SHAFT

main45273-28010iTCR1#,2#199005-199912

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-28160iTCR11,21..LHD..MTM199408-199608

W(SECURITY SYSTEM)

sub45280-28161

main45280-28160iTCR1#,2#..LHD199005-199608

sub45280-28161

main45280-28160iTCR11..LHD..ATM199308-199409

W(*CRC);W(SECURITY SYSTEM)

sub45280-28161

main45280-28161iTCR1#,2#..LHD..W199308-199801

main45280-28162iTCR1#,2#..LHD199801-199912

main45280-28180iTCR1#,2#..RHD199005-199108

sub45280-28200

main45280-28200iTCR1#,2#..RHD199005-199108

W(TILT STEERING)

sub45280-28201

main45280-28200iTCR1#,21..RHD199108-199608

sub45280-28201

main45280-28201iTCR1#..RHD199608-199801

main45280-28202iTCR1#..RHD199801-199912

45286COVER, STEERING COLUMN

main45286-28140-03iTCR1#,2#..LHD..MTM199005-199308

GRAY,TRIM1#,UPPER

sub45286-28150

sub45286-28140

main45286-28140-05iTCR11,21..LHD..MTM199005-199108

GREIGE,TRIM4#,UPPER

sub45286-28150

sub45286-28140

main45286-28150-03iTCR1#,2#..LHD..MTM199005-199308

W(TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-28150

main45286-28150-05iTCR11,21..LHD..MTM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,UPPER

sub45286-28150

main45286-28150-B0iTCR10,20..W199308-199608

BLUISH GRAY,TRIM1#,UPPER

sub45286-28150

main45286-28160-03iTCR11..LHD..ATM199005-199108

GRAY,TRIM1#,UPPER

sub45286-28170

sub45286-28160

main45286-28160-05iTCR11..LHD..ATM199005-199108

GREIGE,TRIM4#,UPPER

sub45286-28170

sub45286-28160

main45286-28170-03iTCR11..LHD..ATM199005-199308

W(TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-28170

main45286-28170-05iTCR11..LHD..ATM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,UPPER

sub45286-28170

main45286-28170-B0iTCR10..LHD..ATM199308-199912

BLUISH GRAY,TRIM1#,UPPER

sub45286-28170

main45286-28170-E2iTCR10..GEN199308-199801

MI.GRAIGE,TRIM4#,UPPER

sub45286-28170

main45286-28180-03iTCR1#,2#..RHD..MTM199005-199108

GRAY,TRIM1#,UPPER

sub45286-28180

main45286-28180-05iTCR11,21..RHD..MTM199005-199108

GREIGE,TRIM4#,UPPER

sub45286-28180

main45286-28190-03iTCR1#,2#..RHD..MTM199005-199308

W(TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-28190

main45286-28190-05iTCR11,21..RHD..MTM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,UPPER

sub45286-28190

main45286-28190-B0iTCR11..RHD..MTM199308-199801

W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER

sub45286-28190

main45286-28190-B0iTCR10..MTM..ARL199308-199710

BLUISH GRAY,TRIM1#,UPPER

sub45286-28190

main45286-28190-E2iTCR11..RHD..MTM199308-199608

W(TILT STEERING),MI.GRAIGE,TRIM4#,UPPER

sub45286-28190

main45286-28200-03iTCR1#,2#..RHD..ATM199005-199108

GRAY,TRIM1#,UPPER

sub45286-28200

sub45286-28210

main45286-28200-05iTCR1#,2#..RHD..ATM199005-199108

GREIGE,TRIM4#,UPPER

sub45286-28200

sub45286-28210

main45286-28210-03iTCR1#,2#..RHD..ATM199005-199308

W(TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-28210

main45286-28210-05iTCR11,21..RHD..ATM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,UPPER

sub45286-28210

main45286-28210-B0iTCR1#..RHD..ATM199308-199710

BLUISH GRAY,TRIM1#,UPPER

sub45286-28210

main45286-28210-E2iTCR11..RHD..ATM199308-199710

MI.GRAIGE,TRIM4#,UPPER

sub45286-28210

main45286-28220-B0iTCR1#..RHD..MTM199308-199912

GRAY,TRIM1#,UPPER

sub45286-28220

main45286-28220-E1iTCR11..RHD..MTM199308-199608

GREIGE,TRIM4#,UPPER

sub45286-28220

main45286-28230-B0iTCR11..RHD..ATM199308-199912

GRAY,TRIM1#,UPPER

sub45286-28230

main45286-28230-E1iTCR11..RHD..ATM199308-199801

GREIGE,TRIM4#,UPPER

sub45286-28230

main45286-28240-B0iTCR11,21..LHD..MTM199308-199408

GRAY,TRIM1#,UPPER

sub45286-28240

main45286-28240-B0iTCR1#,2#..LHD..MTM199408-199912

W(*80),GRAY,TRIM1#,UPPER

sub45286-28240

main45286-28240-E1iTCR11,21..LHD..MTM199308-199608

GREIGE,TRIM4#,UPPER

sub45286-28240

main45286-28250-B0iTCR11..LHD..ATM199308-199912

GRAY,TRIM1#,UPPER

sub45286-28250

main45286-28250-E1iTCR1#..LHD..ATM..08S199308-199801

GREIGE,TRIM4#,UPPER

sub45286-28250

main45287-28100-03iTCR1#,2#..LHD..MTM199005-199308

GRAY,TRIM1#,LOWER

sub45287-28100

main45287-28100-05iTCR11,21..LHD..MTM199005-199108

GREIGE,TRIM4#,LOWER

sub45287-28100

main45287-28120-03iTCR1#,2#..LHD..MTM199005-199308

W(TILT STEERING),GRAY,TRIM1#,LOWER

sub45287-28120

main45287-28120-05iTCR11,21..LHD..MTM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,LOWER

sub45287-28120

main45287-28120-B0iTCR10,20..W199308-199608

BLUISH GRAY,TRIM1#,LOWER

sub45287-28120

main45287-28130-03iTCR11..LHD..ATM199005-199108

GRAY,TRIM1#,LOWER

main45287-28130-15iTCR11..LHD..ATM199005-199108

GREIGE,TRIM4#,LOWER

main45287-28150-03iTCR11..LHD..ATM199005-199308

W(TILT STEERING),GRAY,TRIM1#,LOWER

sub45287-28150

main45287-28150-05iTCR11..LHD..ATM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,LOWER

sub45287-28150

main45287-28150-B0iTCR10..LHD..ATM199308-199912

W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER

sub45287-28150

main45287-28150-E2iTCR10..GEN199308-199801

MI.GRAIGE,TRIM4#,LOWER

sub45287-28150

main45287-28170-03iTCR1#,2#..RHD..MTM199005-199108

GRAY,TRIM1#,LOWER

sub45287-28170

sub45287-28190

main45287-28170-05iTCR11,21..RHD..MTM199005-199108

GREIGE,TRIM4#,LOWER

sub45287-28170

sub45287-28190

main45287-28190-03iTCR1#..MTM..ARL199005-199308

W(TILT STEERING),GRAY,TRIM1#,LOWER

sub45287-28190

main45287-28190-05iTCR11,21..RHD..MTM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,LOWER

sub45287-28190

main45287-28190-B0iTCR10..MTM..ARL199308-199710

BLUISH GRAY,TRIM1#,LOWER

sub45287-28190

main45287-28190-B0iTCR11..RHD..MTM199308-199801

W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER

sub45287-28190

main45287-28190-E2iTCR11..RHD..MTM199308-199608

W(TILT STEERING),MI.GRAIGE,TRIM4#,LOWER

sub45287-28190

main45287-28210-03iTCR1#,2#..RHD..ATM199005-199108

GRAY,TRIM1#,LOWER

sub45287-28210

sub45287-28230

main45287-28210-05iTCR11,21..RHD..ATM199005-199108

GREIGE,TRIM4#,LOWER

sub45287-28210

sub45287-28230

main45287-28230-03iTCR1#,2#..RHD..ATM199005-199308

W(TILT STEERING),GRAY,TRIM1#,LOWER

sub45287-28230

main45287-28230-05iTCR11,21..RHD..ATM199005-199308

W(TILT STEERING),GREIGE,TRIM4#,LOWER

sub45287-28230

main45287-28230-B0iTCR1#..ATM..ARL199308-199710

W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER

sub45287-28230

main45287-28230-E2iTCR11..RHD..ATM199308-199710

W(TILT STEERING),MI.GRAIGE,TRIM4#,LOWER

sub45287-28230

main45287-28260-B0iTCR1#..RHD..MTM199308-199912

GRAY,TRIM1#,LOWER

sub45286-28260

main45287-28260-E1iTCR11..RHD..MTM199308-199608

GREIGE,TRIM4#,LOWER

sub45286-28260

main45287-28270-B0iTCR1#..RHD..ATM199308-199912

GRAY,TRIM1#,LOWER

sub45287-28270

main45287-28270-E1iTCR11..RHD..ATM199308-199801

GREIGE,TRIM4#,LOWER

sub45287-28270

main45287-28280-B0iTCR1#,2#..LHD..MTM199408-199912

W(*80),GRAY,TRIM1#,LOWER

sub45287-28280

main45287-28280-B0iTCR11,21..LHD..MTM199308-199408

GRAY,TRIM1#,LOWER

sub45287-28280

main45287-28280-E1iTCR11,21..LHD..MTM199308-199608

GREIGE,TRIM4#,LOWER

sub45287-28280

main45287-28290-B0iTCR1#..LHD..ATM199308-199912

GRAY,TRIM1#,LOWER

sub45287-28290

main45287-28290-E1iTCR11..LHD..ATM199308-199801

GREIGE,TRIM4#,LOWER

sub45287-28290

main45287-28340-B0iTCR10..V199508-199912

W(CRUISE CONTROL),BLUISH GRAY,TRIM1#,LOWER

main45287-28350-B0iTCR11..RHD..ATM199308-199710

W(CRUISE CONTROL),BLUISH GRAY,TRIM1#,LOWER

sub45287-28350

main45287-28350-E0iTCR11..ARL199308-199710

W(CRUISE CONTROL),MI.GRAIGE,TRIM4#,LOWER

sub45287-28350

45819RETAINER, TILT LEVER

main45819-22040iTCR1#,2#199005-199308

main45819-22060iTCR1#,2#199308-199912

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-35010iTCR1#,2#199007-199912

45826LEVER, STEERING TILT

main45826-22050iTCR1#,2#199005-199912

45826CBUSH(FOR STEERING TILT LEVER)

main90386-06031iTCR1#,2#199005-199007

main90386-06043iTCR1#,2#199007-199912

45827ALEVER, STEERING TILT SUB

main45827-22030iTCR1#,2#199005-199912

45831BOLT, TILT LEVER LOCK, NO.1

main45831-22020iTCR1#,2#199005-199912

45856BOLT, TILT STEERING, NO.2

main45856-22010iTCR1#,2#199005-199912

OD=9.989-9.998

45870TUBE ASSY, STEERING COLUMN

main45870-28010iTCR1#,2#..MTM199308-199912

main45870-28010iTCR1#,2#..MTM199005-199308

W(TILT STEERING)

main45870-28020iTCR11..LHD..ATM199005-199108

main45870-28030iTCR11..LHD..ATM199005-199108

W(TILT STEERING)

main45870-28030iTCR1#..LHD..ATM199108-199912

main45870-28040iTCR1#,2#..RHD..MTM199005-199108

main45870-28050iTCR1#,2#..RHD..ATM199005-199108

main45870-28060iTCR1#,2#..RHD..ATM199005-199108

W(TILT STEERING)

main45870-28060iTCR1#,21..RHD..ATM199108-199912

main45870-28070iTCR10,20..W199005-199308

45880LEVER ASSY, STEERING TILT

main45880-28010iTCR1#,2#199005-199106

sub45880-28011

main45880-28011iTCR1#,2#199106-199912

45890APAWL ASSY, TILT STEERING

main45890-20110iTCR1#,2#199005-199912

RH

main45890-22090iTCR1#,2#199005-199912

LH

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-08010iTCR1#,2#199005-199912

LH

main90507-12035iTCR1#,2#199005-199912

RH

45893ASTOPPER, TILT STEERING PAWL

main45893-22030iTCR1#,2#199005-199912

MARK 1,RH

main45893-22040iTCR1#,2#199005-199912

MARK 2,RH

main45893-22050iTCR1#,2#199005-199912

MARK 3,RH

main45893-22060iTCR1#,2#199005-199912

MARK 4,RH

main45893-22070iTCR1#,2#199005-199912

MARK 5,RH

main45893-22080iTCR1#,2#199005-199912

MARK A,LH

main45893-22090iTCR1#,2#199005-199912

MARK B,LH

main45893-22100iTCR1#,2#199005-199912

MARK C,LH

main45893-22110iTCR1#,2#199005-199912

MARK D,LH

main45893-22120iTCR1#,2#199005-199912

MARK E,LH

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-07003iTCR1#,2#199005-199912

45897BOLT, STEERING LOCK SET

main45897-12020iTCR1#,2#199005-199912

9010906162

main90109-06162

9011908560

main90119-08560

9016450048

main90164-50048

9017906009

main90179-06009

9017910055

main90179-10055

9017910065

main90179-10065

9163360625

main91633-60625

9165160816

main91651-60816

9165160820

main91651-60820

9331514012

main93315-14012

9338515010

main93385-15010

9413060600

main94130-60600

9418040800

main94180-40800

9451200600

main94512-00600

9461410600

main94614-10600

9616000800

main96160-00800

47 parts on this diagram · 2 diagrams in section
