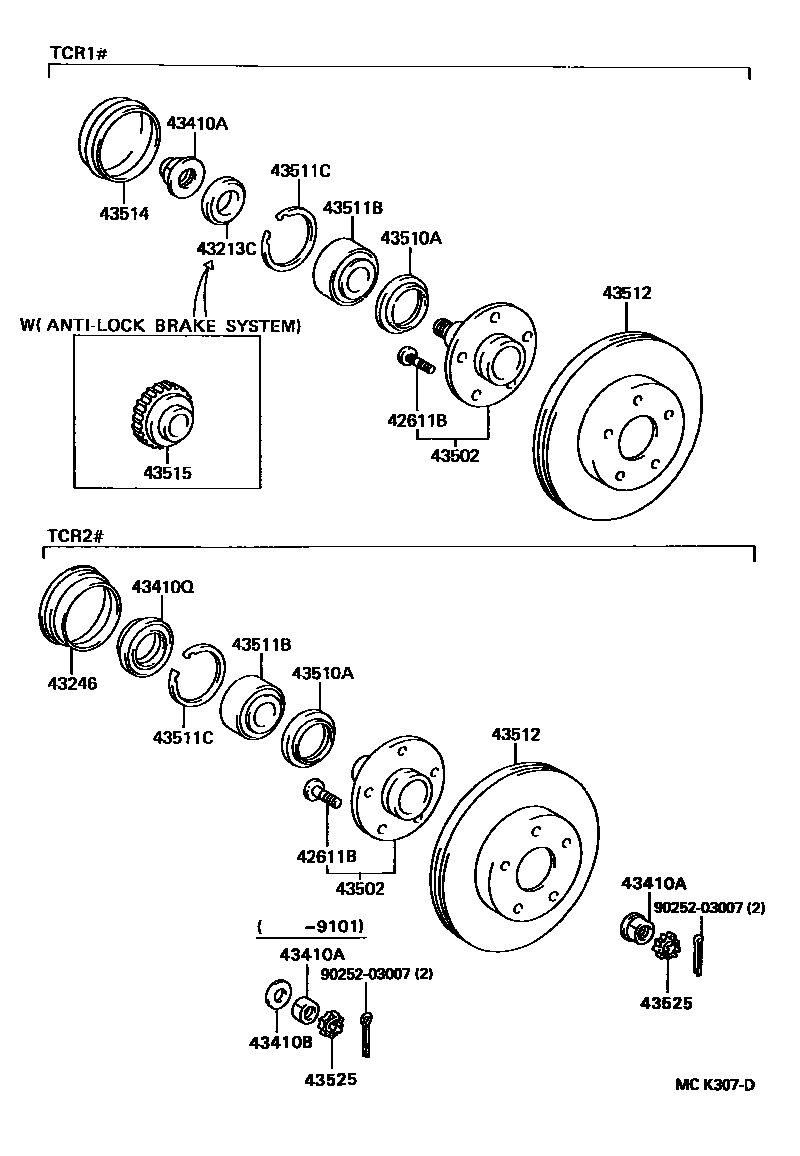

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iTCR1#,2#199005-199912

43213CSPACER (FOR DRIVE SHAFT)

main90560-43001iTCR1#199005-199912

T=7.50

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-28010iTCR2#199005-199912

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19002iTCR2#199005-199101

main90178-22001iTCR2#199801-199912

main90179-22020iTCR2#199101-199801

main90179-24010iTCR1#199005-199912

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012iTCR2#199005-199101

43410QSEAL, OIL (FOR FRONT DRIVE SHAFT)

main90311-56014iTCR2#199005-199912

43502HUB SUB-ASSY, FRONT AXLE

main43502-28040iTCR1#199005-199912

main43502-28050iTCR2#199005-199912

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-61001iTCR1#,2#199005-199912

43511BBEARING (FOR FRONT AXLE HUB)

main90369-43007iTCR1#,2#199005-199912

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82002iTCR1#,2#199005-199912

T=2.5

43512DISC, FRONT

main43512-28060iTCR1#,2#199005-199108

sub43512-28111

main43512-28070iTCR11,21..ARL199005-199302

W(REAR DISC BRAKE)

main43512-28070iTCR1#..ARL199302-199912

main43512-28090iTCR11;TCR10,2#..LHD199308-199608

W(ABS & REAR DISC BRAKE)

main43512-28090iTCR11,21199005-199308

W(ABS & REAR DISC BRAKE);W(REAR DISC BRAKE)

main43512-28110iTCR1#,2#..W199108-199608

sub43512-28111

43514CAP, FRONT HUB GREASE

main43514-28010iTCR1#199005-199912

43515ROTOR, SKID CONTROL, FRONT

main43515-28010iTCR11,21199005-199912

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iTCR2#199005-199101

main43525-20030iTCR2#199101-199912

9025203007

main90252-03007

15 parts on this diagram · 1 diagram in section
