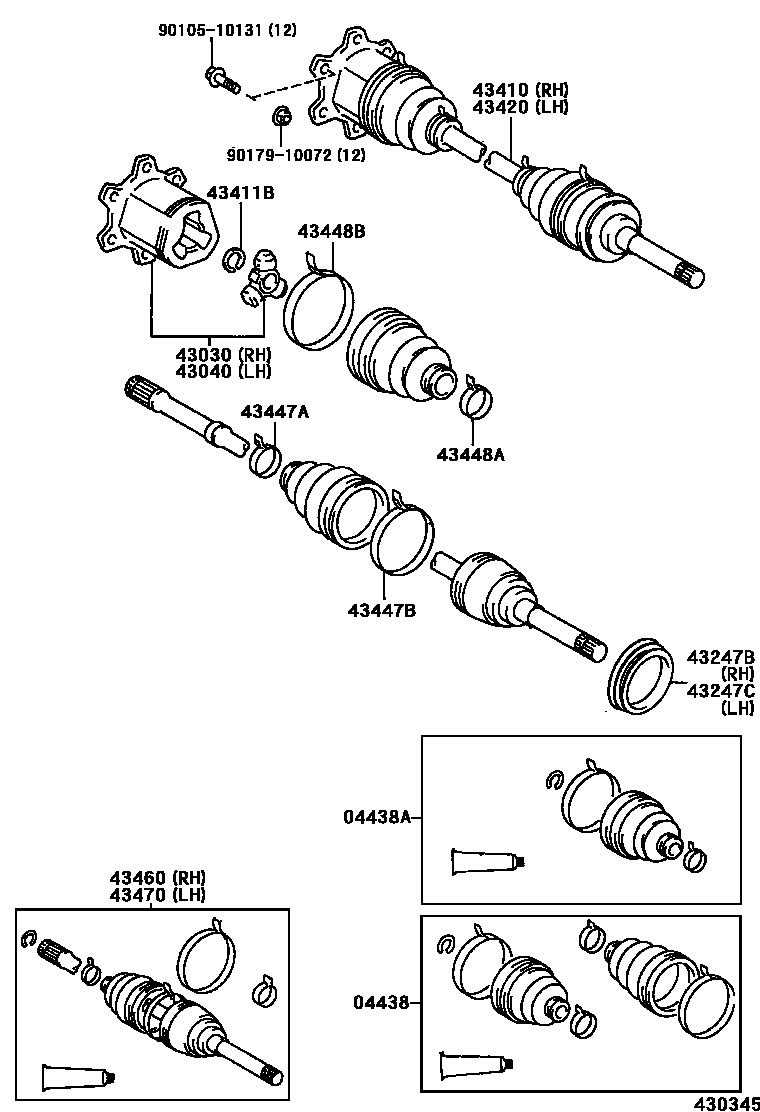

FRONT DRIVE SHAFT
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247CDEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
9010510131
main90105-10131
9017910072
main90179-10072
17 parts on this diagram · 1 diagram in section
