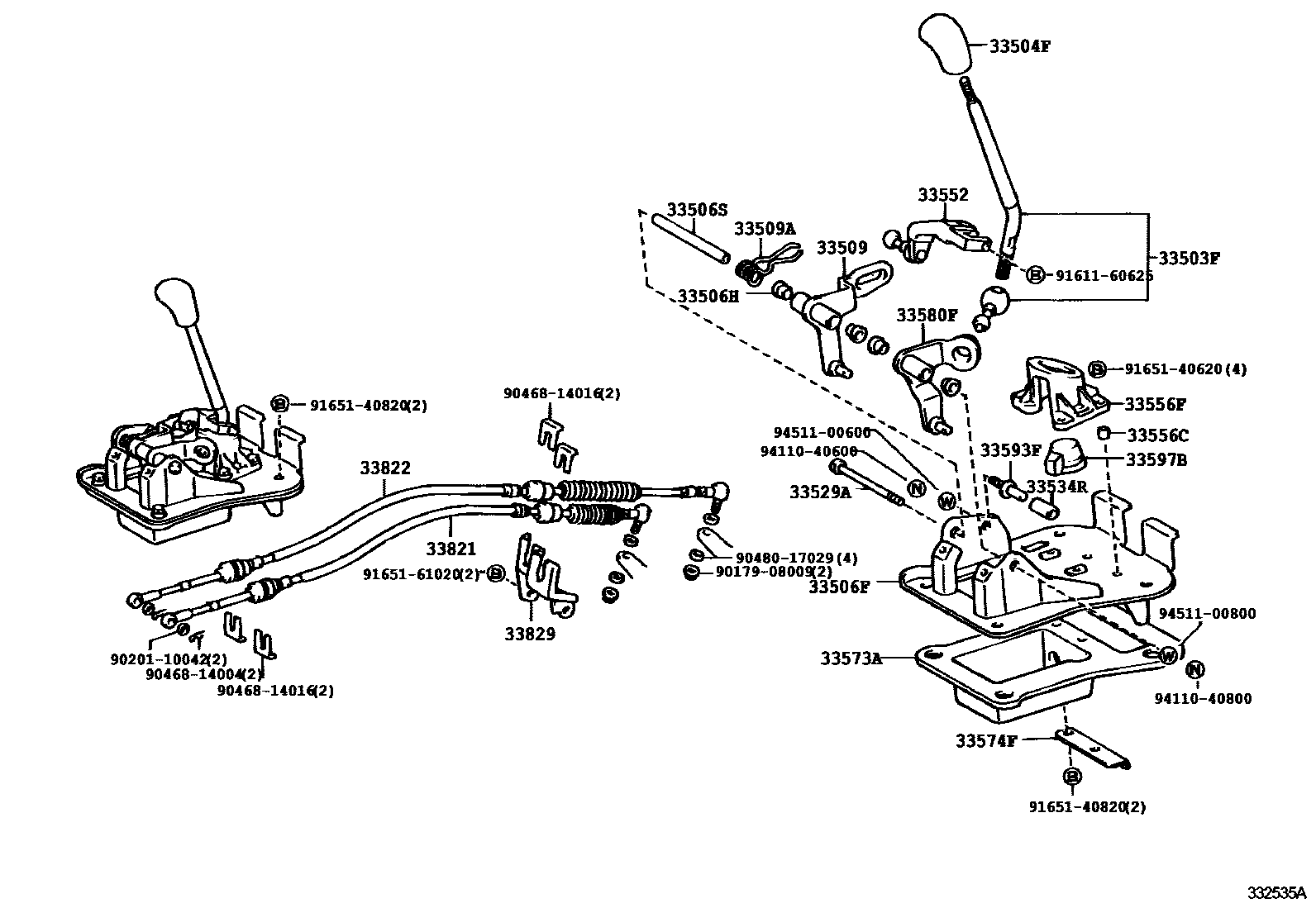

SHIFT LEVER & RETAINER

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-28080iTCR1#,2#..MTM199005-199108

main33055-28081iTCR2#..W199108-199912

main33055-28140iTCR1#..MTM199108-199912

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B1iTCR1#,2#..MTM199108-199801

GRAY,TRIM1#

sub33504-12180

main33504-12180-E2iTCR11,21..MTM199108-199608

GREIGE,TRIM4#

sub33504-12180

main33504-12180-P0iTCR1#,2#..MTM199801-199912

SHADOW GRAY,TRIM1#

sub33504-12180

main33504-20110-05iTCR11,21..MTM199005-199108

GREIGE,TRIM4#

sub33504-24010

sub33504-20110

main33504-20110-13iTCR1#,2#..MTM199005-199108

GRAY,TRIM1#

sub33504-24010

sub33504-20110

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28160iTCR1#,2#..MTM199005-199912

33506HBUSH (FOR SHIFT LEVER RETAINER)

main90386-12013iTCR1#,2#..MTM199005-199303

main90386-12034iTCR1#,2#..MTM199303-199912

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-08113iTCR1#,2#..MTM199005-199912

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-28010iTCR1#,2#..MTM199005-199912

33509ASPRING, TORSION (FOR SELECTING BELL CRANK)

main90508-30008iTCR1#,2#..MTM199005-199212

sub90949-03014

main90949-03014iTCR1#,2#..MTM199212-199912

33529APLATE, SHIFT LEVER HOUSING, NO.2

main33529-28090iTCR1#,2#..MTM199005-199912

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-08024iTCR1#,2#..MTM199005-199912

33552ARM, SHIFT LEVER

main33552-28011iTCR1#,2#..MTM199005-199912

33556CCOLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90387-06054iTCR1#,2#..MTM199005-199912

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-28050iTCR1#,2#..MTM199005-199912

33573ACOVER, CONTROL SHAFT DUST, LWR

main33573-28020iTCR1#,2#..MTM199005-199912

33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)

main33574-28020iTCR1#,2#..MTM199005-199912

33580FBELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)

main33580-28030iTCR1#,2#..MTM199005-199912

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-28070iTCR1#,2#..MTM199005-199912

33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)

main33597-28010iTCR1#,2#..MTM199005-199912

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28090iTCR1#,2#..MTM199005-199912

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28090iTCR1#,2#..MTM199005-199912

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-28020iTCR1#,2#..MTM199005-199108

main33829-28021iTCR10,2#..MTM;TCR11..RHD..MTM199108-199912

9017908009

main90179-08009

9020110042

main90201-10042

9046814004

main90468-14004

9046814016

main90468-14016

9048017029

main90480-17029

9161160625

main91611-60625

9165140620

main91651-40620

9165140820

main91651-40820

9165161020

main91651-61020

9411040600

main94110-40600

9411040800

main94110-40800

9451100600

main94511-00600

9451100800

main94511-00800

33 parts on this diagram · 1 diagram in section
