CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iTCR1#,2#..MTM199005-199205

sub04311-12080

main04311-12080iTCR1#,2#..MTM199205-199403

main04311-12110iTCR1#,2#..MTM199710-199912

main04311-60150iTCR1#,2#..MTM199403-199710

sub04311-12110

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28100iTCR1#,2#..MTM199005-199608

sub31420-28101

main31420-28101iTCR1#,2#..MTM199608-199912

31410JRING, O(FOR CLUTCH MASTER CYLINDER UNION)

main90301-14001iTCR1#,2#..MTM199005-199912

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iTCR1#,2#..MTM199005-199303

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-20010iTCR1#,2#..MTM199608-199912

main31416-28010iTCR1#,2#..MTM199005-199608

31434TUBE, CLUTCH RESERVOIR

main31434-28050iTCR1#,2#..MTM199005-199608

main31434-28051iTCR1#,2#..MTM199608-199912

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-16003iTCR1#,2#..MTM199608-199912

sub96134-51500

main96132-30800iTCR1#,2#..MTM199005-199608

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iTCR1#,2#..MTM199005-199403

main31451-36040iTCR1#,2#..MTM199403-199912

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iTCR1#,2#..MTM199211-199912

main31404-35021iTCR1#,2#..MTM199005-199211

sub31404-35030

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iTCR1#,2#..MTM199304-199912

main31454-24010iTCR1#,2#..MTM199005-199304

9011608146

main90116-08146

9015750003

main90157-50003

9017908107

main90179-08107

9412040800

main94120-40800

9615102200

main96151-02200

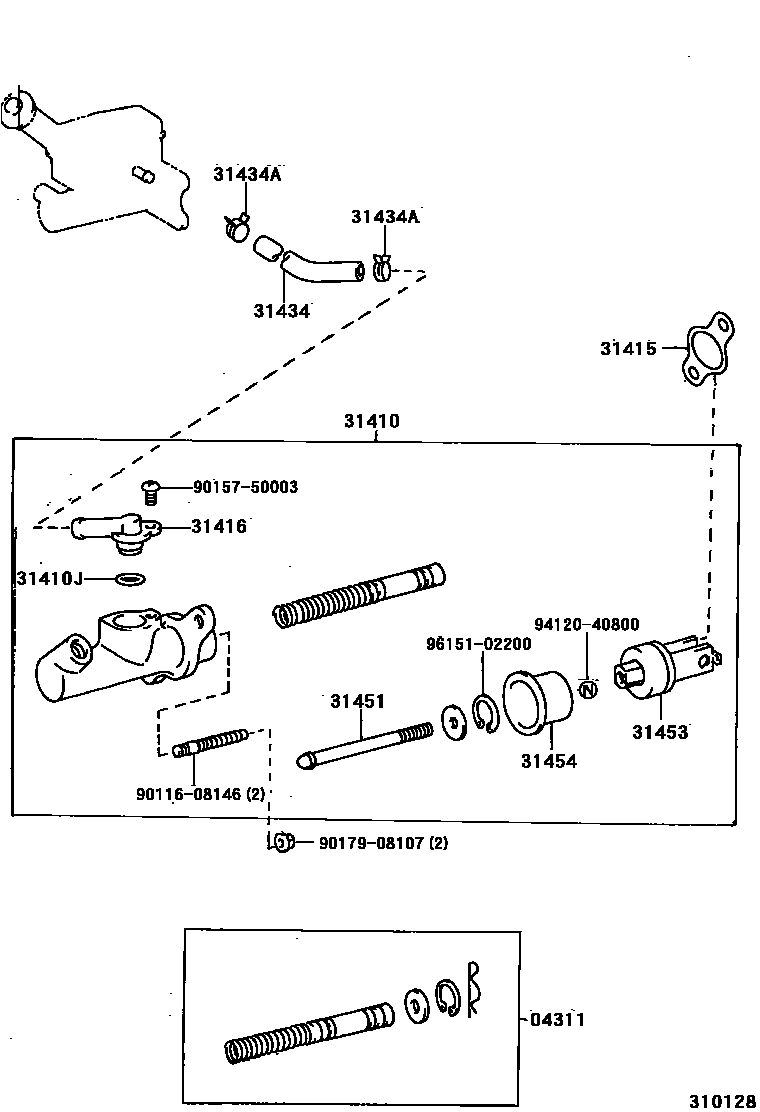

15 parts on this diagram · 1 diagram in section
