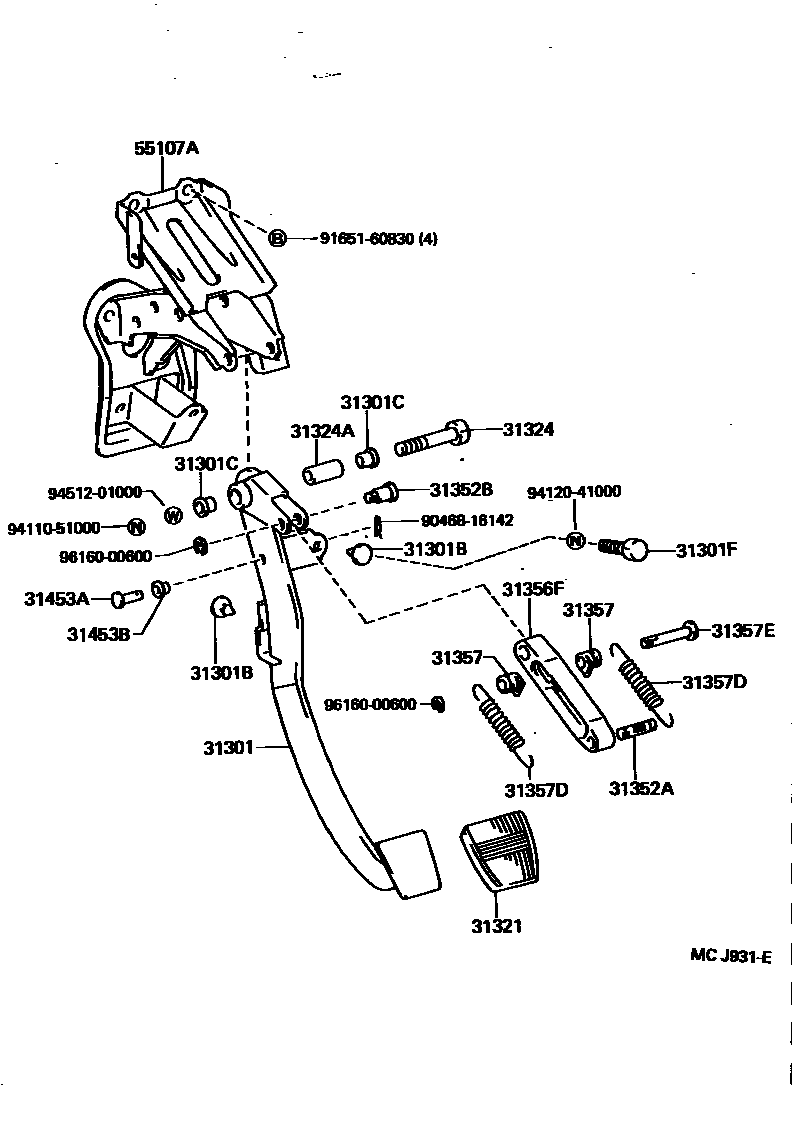

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28100iTCR1#,2#..LHD..MTM199005-199912

main31301-28110iTCR1#,2#..RHD..MTM199005-199108

main31301-28111iTCR1#..RHD..MTM199108-199912

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iTCR1#,2#..MTM199005-199912

sub90541-06036

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iTCR1#,2#..MTM199005-199912

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iTCR1#,2#..MTM199005-199912

31321PAD, CLUTCH PEDAL

main31321-14020iTCR1#,2#..MTM199005-199912

31324SHAFT, CLUTCH PEDAL

main90101-10039iTCR1#,2#..MTM199005-199912

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iTCR1#,2#..MTM199005-199912

31352APIN, CLUTCH PEDAL OVER CENTER PLATE, NO.1

main31352-17010iTCR1#,2#..MTM199005-199912

31352BPIN, CLUTCH PEDAL OVER CENTER PLATE, NO.2

main31352-20020iTCR1#,2#..MTM199005-199912

31356FPLATE, CLUTCH PEDAL OVER CENTER, NO.1

main31356-17010iTCR1#,2#..MTM199005-199912

31357PLATE, CLUTCH PEDAL OVER CENTER, NO.2

main31357-20020iTCR1#,2#..MTM199005-199912

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90507-26007iTCR1#,2#..MTM199005-199912

31357EPIN, CLUTCH PEDAL OVER CENTER PLATE, NO.3

main90249-08214iTCR1#,2#..MTM199005-199912

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iTCR1#,2#..MTM199005-199912

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iTCR1#,2#..MTM199005-199912

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-28030iTCR1#,2#..MTM199108-199912

main55107-95D00iTCR1#,2#..MTM199005-199108

9046816142

main90468-16142

9165160830

main91651-60830

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9616000600

main96160-00600

22 parts on this diagram · 4 diagrams in section
