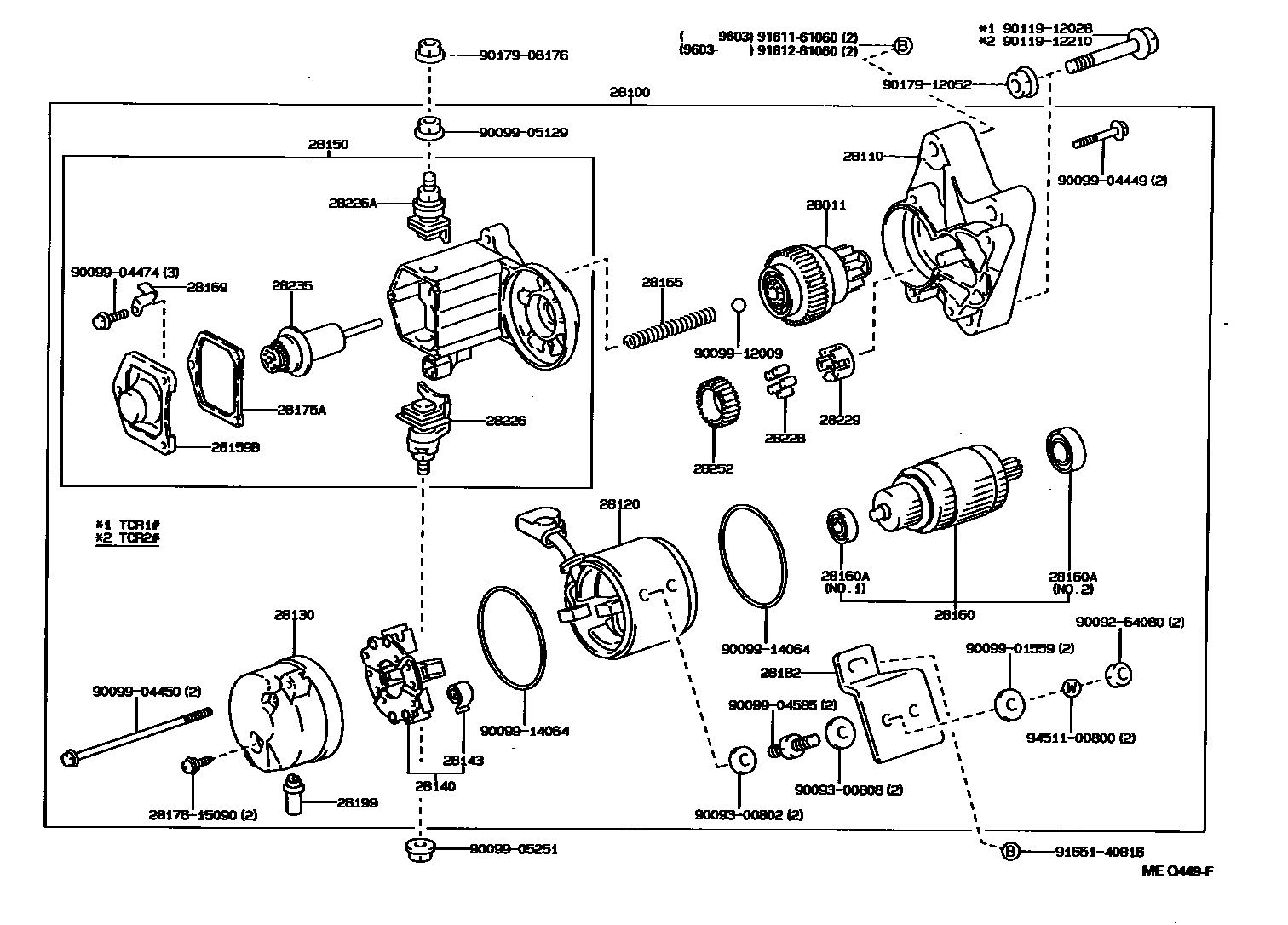

STARTER

0001 112V 1.2KW,1.4KW 0002 112V 1.6KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i2TZFE..TCR10..GEN199308-199408

main28011-26042i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28011-76070i2TZFE..TCR1#..ARL,V,W199005-199912

28100STARTER ASSY

main28100-76050i2TZFE..TCR1#,2#..W199005-199308

12V 1.6KW,COLD SPEC

sub28100-76101

main28100-76060i2TZFE..TCR1#,2#199005-199308

12V 1.2KW

main28100-76081i2TZFE..TCR1#,2#..ARL,W199308-199912

12V 1.2KW

sub28100-76060

main28100-76091i2TZFE..TCR10..V199508-199912

12V 1.4KW

sub28100-76070

main28100-76101i2TZFE..TCR1#,2#..W199308-199912

12V 1.6KW

main28100-76101i2TZFE..TCR1#,2#..W199308-199912

12V 1.6KW,COLD SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-76050i2TZFE..TCR20;2TZFE..TCR10,21..GL199005-199912

COLD SPEC

main28110-76050i2TZFE..TCR10..GEN199308-199408

main28110-76070i2TZFE..TCR1#,2#..ARL,W199005-199912

28120YOKE ASSY, STARTER

main28120-76051i2TZFE..TCR20;2TZFE..TCR10,21..GL199005-199912

COLD SPEC

main28120-76051i2TZFE..TCR10..GEN199308-199408

main28120-76060i2TZFE..TCR1#,2#199005-199308

sub28120-76061

main28120-76061i2TZFE..TCR1#,2#..ARL,W199308-199912

main28120-76070i2TZFE..TCR10..V199508-199912

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-76050i2TZFE..TCR10..GEN199308-199408

main28130-76050i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28130-76060i2TZFE..TCR1#,2#..ARL,W199005-199912

main28130-76070i2TZFE..TCR10..V199508-199912

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i2TZFE..TCR20;2TZFE..TCR10,21..GL199005-199912

COLD SPEC

main28140-15090i2TZFE..TCR10..GEN199308-199408

main28140-76060i2TZFE..TCR1#,2#..ARL,W199005-199912

main28140-76070i2TZFE..TCR10..V199508-199912

28143SPRING, STARTER BRUSH

main28143-76060i2TZFE..TCR1#,2#..ARL,W199308-199912

main90099-17112i2TZFE..TCR1#,2#199005-199308

main90099-17112i2TZFE..TCR10..GEN199308-199912

COLD SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-76050i2TZFE..TCR1#,2#..W199005-199308

COLD SPEC

sub28150-76101

main28150-76070i2TZFE..TCR1#,2#199005-199308

sub28150-76081

main28150-76081i2TZFE..TCR1#,2#..ARL,W199308-199912

main28150-76101i2TZFE..TCR20;2TZFE..TCR10,21..GL199308-199912

COLD SPEC

28159BCOVER, MAGNET SWITCH

main28159-10040i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28159-10040i2TZFE..TCR10..GEN199308-199408

main28159-55050i2TZFE..TCR1#,2#..ARL,W199005-199912

28160ARMATURE ASSY, STARTER

main28160-65031i2TZFE..TCR1#..W199005-199912

COLD SPEC

main28160-65031i2TZFE..TCR10..GEN199308-199408

main28160-74070i2TZFE..TCR10..V199508-199912

main28160-76060i2TZFE..TCR1#,2#..ARL,W199005-199912

28160ABEARING, STARTER ARMATURE

main90099-10143i2TZFE..TCR1#..W199308-199912

NO.2

main90099-10143i2TZFE..TCR1#..W199005-199912

COLD SPEC,NO.2

main90099-10144i2TZFE..TCR20;2TZFE..TCR10,21..GL199005-199912

COLD SPEC,NO.1

main90099-10144i2TZFE..TCR10..GEN199308-199912

NO.1

main90099-10196i2TZFE..TCR1#,2#..ARL,W199005-199912

NO.1

main90099-10197i2TZFE..TCR1#..ARL,V,W199005-199912

NO.2

main90099-65030i2TZFE..TCR1#,2#..W199308-199912

COLD SPEC

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2TZFE..TCR1#..W199005-199912

COLD SPEC

main28165-26040i2TZFE..TCR10..GEN199308-199408

main28165-76070i2TZFE..TCR1#..ARL,V,W199005-199912

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28169-10040i2TZFE..TCR10..GEN199308-199408

main28169-55050i2TZFE..TCR1#,2#..ARL,W199005-199912

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i2TZFE..TCR1#..W199005-199912

COLD SPEC

main28175-10040i2TZFE..TCR10..GEN199308-199408

main28175-55050i2TZFE..TCR1#,2#..ARL,W199005-199912

28182STAY, STARTER COMMUTATOR END FRAME

main28182-76050i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28182-76050i2TZFE..TCR10..GEN199308-199408

main28182-76060i2TZFE..TCR1#,2#199005-199308

main28182-76070i2TZFE..TCR10..V199508-199912

28199COVER, STARTER

main28199-72020i2TZFE..TCR1#..W199005-199912

COLD SPEC

main28199-72020i2TZFE..TCR10..GEN199308-199408

main28199-74070i2TZFE..TCR1#,2#199005-199308

main28199-74110i2TZFE..TCR1#,2#..ARL,W199308-199912

28226STARTER KIT, BATTERY TERMINAL

main28226-64110i2TZFE..TCR1#,2#..W199005-199308

COLD SPEC

main28226-64200i2TZFE..TCR1#,2#..ARL,W199308-199912

sub28226-22050

main28226-76070i2TZFE..TCR1#,2#199005-199308

main28226-76100i2TZFE..TCR10..GEN199308-199912

COLD SPEC

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28226-72010i2TZFE..TCR10..GEN199308-199408

main28226-74070i2TZFE..TCR1#,2#..ARL,W199005-199912

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2TZFE..TCR1#,2#..ARL,GEN,W199005-199912

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2TZFE..TCR1#..W199005-199912

COLD SPEC

main28229-26040i2TZFE..TCR10..GEN199308-199408

main28229-74070i2TZFE..TCR1#..ARL,V,W199005-199912

28235PLUNGER, MAGNET SWITCH

main28235-35080i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28235-35080i2TZFE..TCR10..GEN199308-199408

main28235-55050i2TZFE..TCR1#,2#..ARL,W199005-199912

28252GEAR, STARTER IDLE

main28254-45020i2TZFE..TCR1#,2#..W199005-199912

COLD SPEC

main28254-45020i2TZFE..TCR10..GEN199308-199408

main28254-74070i2TZFE..TCR1#,2#..ARL,W199005-199912

2817615090SCREW, STARTER

main28176-15090

9009264080

main90092-64080

9009300802

main90093-00802

9009300808

main90093-00808

9009901559

main90099-01559

9009904449

main90099-04449

9009904450

main90099-04450

9009904474

main90099-04474

9009904585

main90099-04585

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9009914064

main90099-14064

9011912028

main90119-12028

9011912210

main90119-12210

9017908176

main90179-08176

9017912052

main90179-12052

9161161060

main91611-61060

9161261060

main91612-61060

9165140816

main91651-40816

9451100800

main94511-00800

43 parts on this diagram · 2 diagrams in section
